Clearance: Limited stock

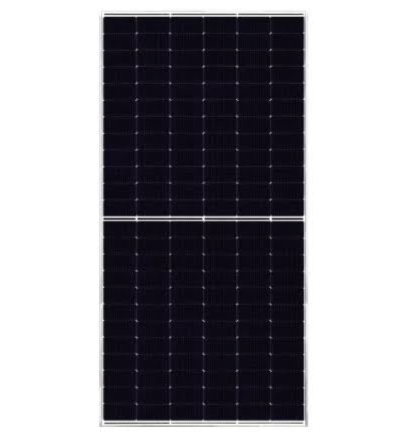

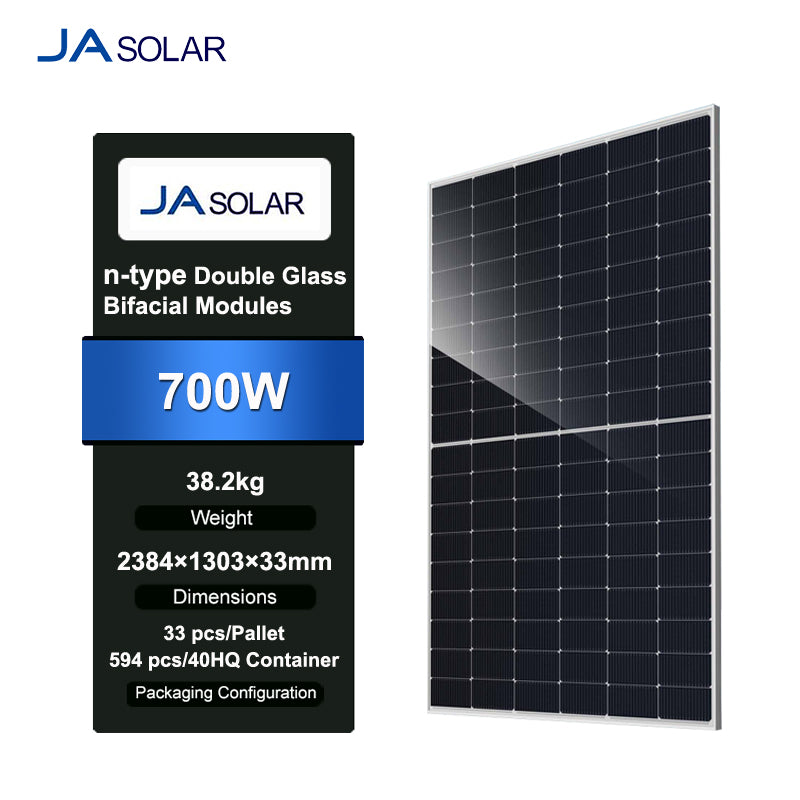

🌞 JA Solar 700 W Bifacial (Double Glass) N-Type Solar Panel
Model: JAM66D46-700/LB
Brand: JA Solar
⚡ Key Features
High Power Output
Rated at 700 W with module efficiency around 22.5%, maximizing energy generation and system performance.
Advanced N-Type TOPCon Cells
Reduces degradation, improves low-light performance, and ensures long-term reliability.
Bifacial Energy Gain
Double-glass design captures sunlight on both front and rear surfaces, increasing total energy yield and reducing Levelized Cost of Energy (LCOE).
Durable Double-Glass Construction
2.0 mm tempered glass on both sides enhances mechanical strength, minimizes micro-cracks, and provides superior corrosion and moisture resistance.
Designed for Extreme Conditions
Withstands snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring dependable operation in harsh environments.
Long-Term Assurance
Backed by JA Solar’s 12-year product warranty and 30-year linear power output warranty, guaranteeing 87.4% power retention after 30 years.
🧾 Specifications
| Category | Value |
|---|---|
| Model | JAM66D46-700/LB |
| Cell Type | N-Type TOPCon Monocrystalline |
| Rated Power | 700 W |
| Module Efficiency | ~22.5 % |
| Bifacial Gain | Up to 85 % |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 38.2 kg |
| Cell Configuration | 132 cells (6 × 22 layout) |
| Temperature Coefficient (Pmax) | −0.29 % / °C |
| Operating Temperature | −40 °C to +85 °C |
| Maximum System Voltage | 1500 V DC |
| Mechanical Load | Snow 5400 Pa / Wind 2400 Pa |
| Front / Back Glass | 2.0 mm + 2.0 mm tempered glass |
| Junction Box | IP68, 3 bypass diodes |
| Connectors | MC4-EVO2A |
| Certifications | IEC 61215 / IEC 61730 / UL 61215 / ISO 9001 |
| Warranty | 12-year product / 30-year linear power output |
- Spec Sheet
🏷️ Quality & Authentication
-
Each module includes a traceable serial/barcode for warranty validation.
-
Tested and certified to meet international IEC and UL standards.
-
Designed and manufactured by JA Solar, a globally recognized leader in high-efficiency bifacial solar technology.
