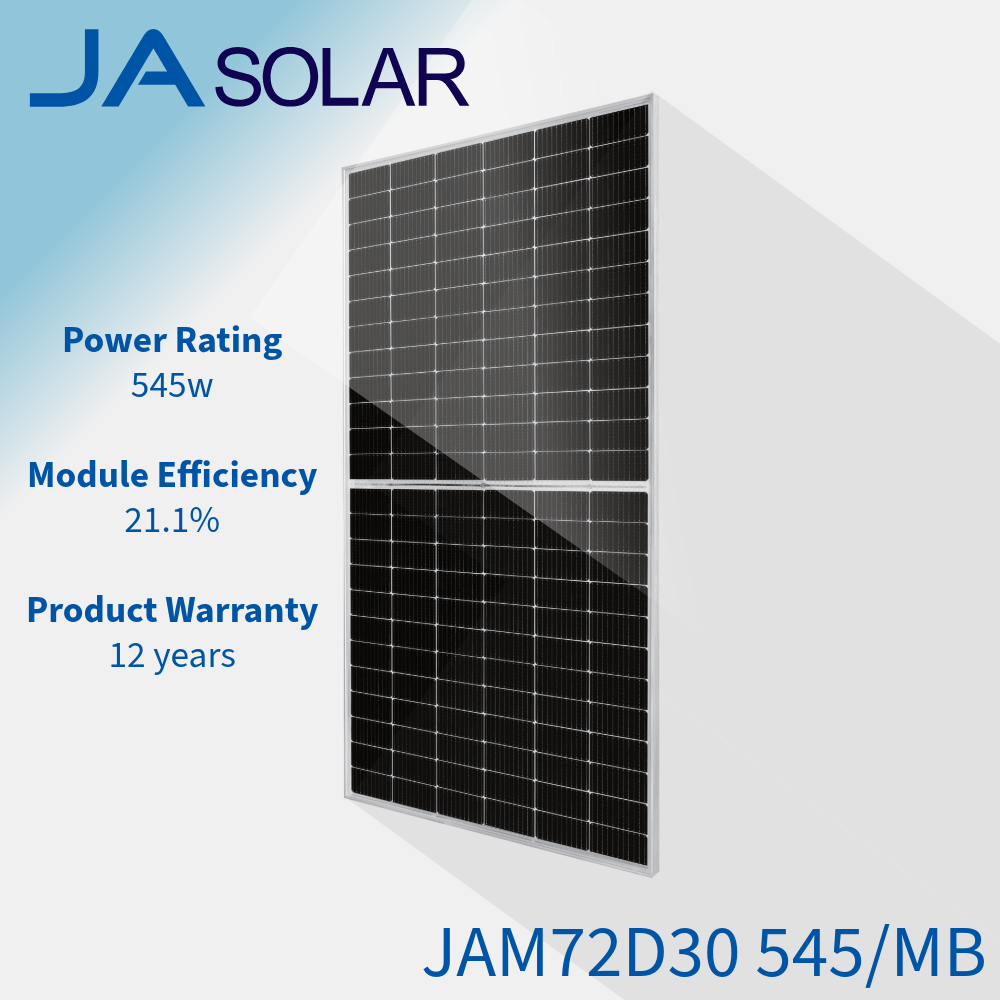

🌞 JA Solar 545W Bifacial Mono PERC Double-Glass Solar Panel
Brand: JA Solar
Model: JAM72D30-545/MB
Series: DeepBlue Series
Type: Bifacial Double-Glass Mono PERC Solar PV Module
Cell Technology: Mono PERCIUM Half-Cell (11BB)
Application: Commercial, industrial & utility-scale solar PV systems
⚡ Key Features
- 545 W rated output — high power generation for commercial and utility-scale solar installations
- Advanced Mono PERCIUM 11BB cell technology — improved efficiency, lower cell losses, and enhanced reliability
- Bifacial energy generation — captures reflected sunlight from the rear side to increase total energy yield
- Double-glass construction — 2.0 mm tempered glass on both sides provides superior durability, moisture resistance, and fire protection
- Excellent low-light performance — delivers stable output during cloudy conditions and early morning or late afternoon sunlight
- Optimised for 1500 V DC systems — supports longer module strings and reduces balance-of-system (BOS) costs
- High mechanical strength — certified for 5400 Pa snow loads and 2400 Pa wind loads
- Low temperature coefficient (-0.35%/°C) — improved performance in hot climates
- 30-year linear power warranty — engineered for dependable long-term energy production
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | JAM72D30-545/MB |
| Rated Power (Pmax) | 545 W |
| Module Type | Bifacial Double-Glass |
| Cell Technology | Mono PERCIUM Half-Cell (11BB) |
| Cell Configuration | 144 Cells (6 × 24) |
| Module Efficiency | Up to 21.1% |
| Bifaciality Factor | 70% ± 10% |
| Maximum System Voltage | 1500 V DC |
| Temperature Coefficient (Pmax) | -0.35% / °C |
| Operating Temperature Range | -40 °C to +85 °C |
| Front / Rear Glass | 2.0 mm + 2.0 mm Tempered Glass |
| Mechanical Load | 5400 Pa (Snow) / 2400 Pa (Wind) |
| Junction Box | IP68, 3 Bypass Diodes |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 31.8 kg |
| Certifications | IEC 61215, IEC 61730, UL 61215, ISO 9001, ISO 14001, ISO 45001 |
| Warranty | 12-Year Product Warranty / 30-Year Linear Power Output Warranty |
🏡 Benefits
- Increased energy production through efficient bifacial technology
- Excellent reliability with robust double-glass construction
- Reduced degradation for higher lifetime energy yield
- Lower Levelised Cost of Energy (LCOE) through improved performance and durability
- Designed to withstand demanding environmental conditions
- Long-term investment protected by comprehensive product and performance warranties
🏷️ Ideal For
- Utility-scale solar farms
- Commercial & industrial rooftop PV systems
- Ground-mounted solar installations
- Fixed-tilt and tracker solar systems
- High-performance grid-tied solar projects
- Projects requiring long-term reliability and maximum energy yield
🏷️ Quality & Support (SPEC SHEET)
The JA Solar JAM72D30-545/MB combines proven Mono PERCIUM half-cell technology with a durable bifacial double-glass design to deliver outstanding efficiency, reliability, and long-term energy production. Built to withstand harsh environmental conditions and backed by a 12-year product warranty and 30-year linear power output warranty, this module is an excellent choice for commercial, industrial, and utility-scale solar installations seeking maximum performance and return on investment.
Every module includes a factory barcode and traceable serial number for product authentication and warranty validation through JA Solar's official support channels. Manufactured to stringent international quality standards, each panel undergoes comprehensive testing to ensure consistent performance, safety, and long-term durability.
