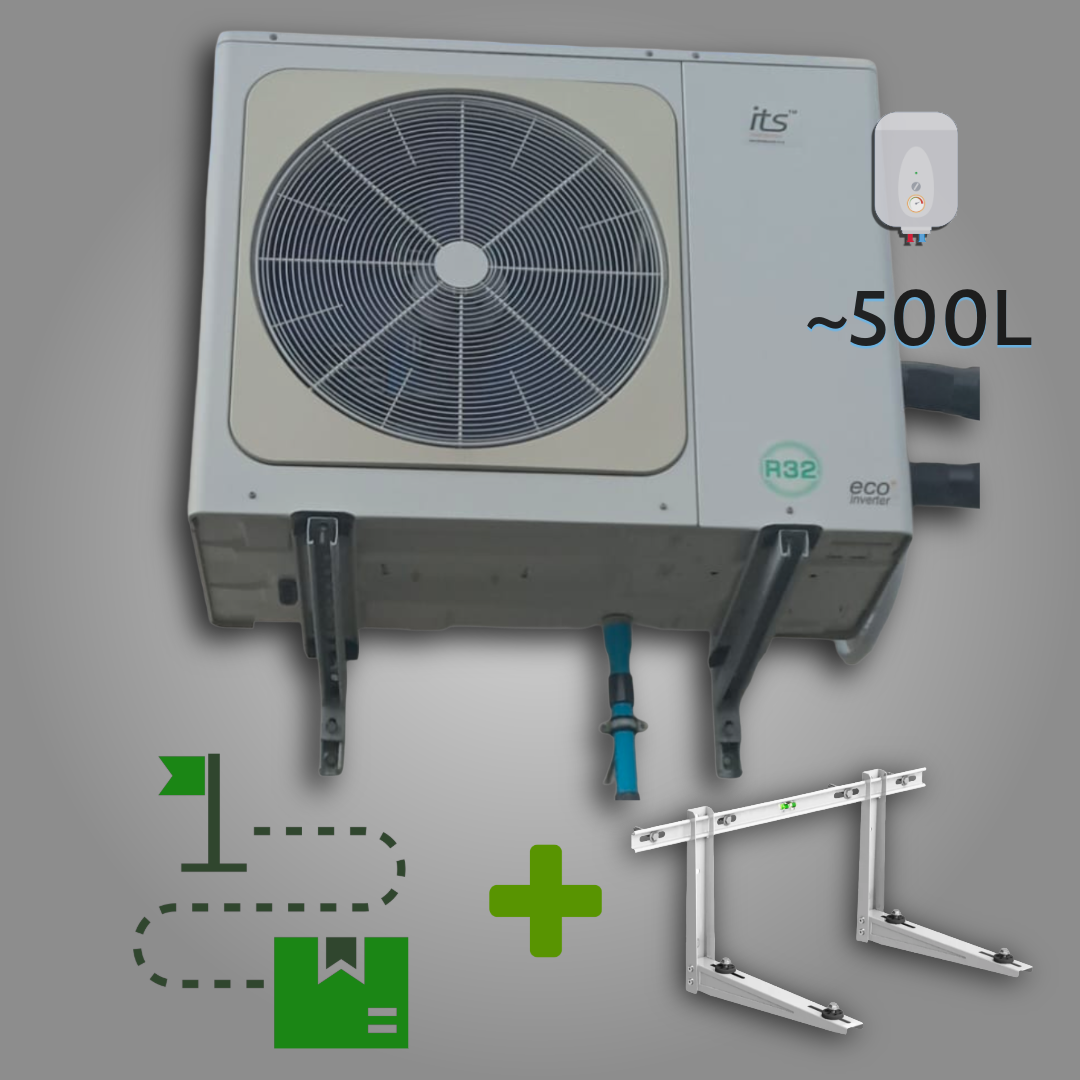

ITS 16.3kW Monobloc Inverter Heat Pump 3 Phase
Couldn't load pickup availability
π₯Β ITS 16.3 kW Monobloc Inverter Heat Pump (3 Phase)
Model: M Thermal Mono ATW Heat Pump (16kW 3-PH)
Brand: ITS Heat Pumps
Type: Air-to-Water (ATW) Monobloc Heat Pump
β‘ Key Features
- High-performance 16.3 kW heating output for residential, commercial, and light industrial heating applications.
- Designed for space heating, cooling, underfloor heating, fan coils, radiators, and domestic hot water systems.
- Advanced monobloc design integrates hydraulic components into a single outdoor unit for simplified installation.
- High-efficiency DC inverter compressor and fan motor reduce operating costs and improve energy performance.
- Supports dual-zone temperature control, allowing simultaneous operation of underfloor heating and fan coil systems.
- Operates reliably in extreme conditions with heating operation down to β25Β°C.
- Utilizes environmentally friendly R32 refrigerant with low Global Warming Potential (GWP).
- Smart grid and solar-ready functionality for integration with photovoltaic systems.
- Built-in circulation pump and expansion vessel simplify system design.
- Suitable for domestic hot water tanks from 200 L to 500 L.
π Specifications
| Specification | Details |
|---|---|
| Model | 16kW 1-PH Standard Monobloc |
| Heating Capacity | 16.3 kW |
| Power Supply | 220β240 V / 1 Phase / 50 Hz |
| Refrigerant | R32 |
| Refrigerant Charge | 1.80 kg |
| Application | Space heating, cooling, underfloor heating, radiators, fan coils, DHW |
| Recommended Tank Size | 200 L β 500 L |
| Operating Temperature (Heating) | -25Β°C to +43Β°C |
| Operating Temperature (Cooling) | -5Β°C to +43Β°C |
| DHW Operating Temperature | -25Β°C to +43Β°C |
| Water Outlet Temperature | Heating: 15Β°C to 65Β°C |
| Cooling Water Temperature | 5Β°C to 25Β°C |
| DHW Water Temperature | 15Β°C to 60Β°C |
| Water Flow Range | 0.70 β 3.00 mΒ³/h |
| Minimum Circuit Ampacity (MCA) | 28 A |
| Maximum Fuse Protection (MFA) | 30 A |
| Expansion Vessel | 5 L (1.5 bar pre-charge) |
| Maximum Water Pressure | 3.0 bar |
| Dimensions (H Γ W Γ D) | 865 Γ 1040 Γ 410 mm |
| Installation | Outdoor |
π§ Technical & Build
| Specification | Details |
|---|---|
| System Type | Air-to-Water Monobloc Heat Pump |
| Compressor Type | DC Inverter |
| Fan Motor | Variable Speed DC |
| Installation | Outdoor |
| Zone Control | Dual-zone temperature control |
| Smart Grid Ready | Yes |
| Solar Integration | Yes |
| Backup Heater Support | External backup heater compatible |
| Application | Residential and commercial heating systems |
βΉοΈ Additional Information
- Ideal for luxury homes, lodges, guest houses, offices, and commercial buildings.
- Suitable for underfloor heating systems, radiators, fan coil units, and domestic hot water applications.
- Integrated hydraulic components reduce installation complexity and improve reliability.
- Designed for year-round operation, delivering efficient heating, cooling, and hot water production.
- Professional installation by a qualified HVAC or plumbing contractor is recommended.
π·οΈ Quality & Support
The ITS 16.3 kW Monobloc Heat Pump delivers efficient, all-in-one climate control and hot water production for demanding residential and commercial applications. Combining advanced inverter technology, extreme-weather performance, and simplified installation, it offers reliable year-round comfort with reduced energy consumption. Backed by local technical support and manufacturer warranty coverage, it provides a dependable long-term heating and cooling solution.
