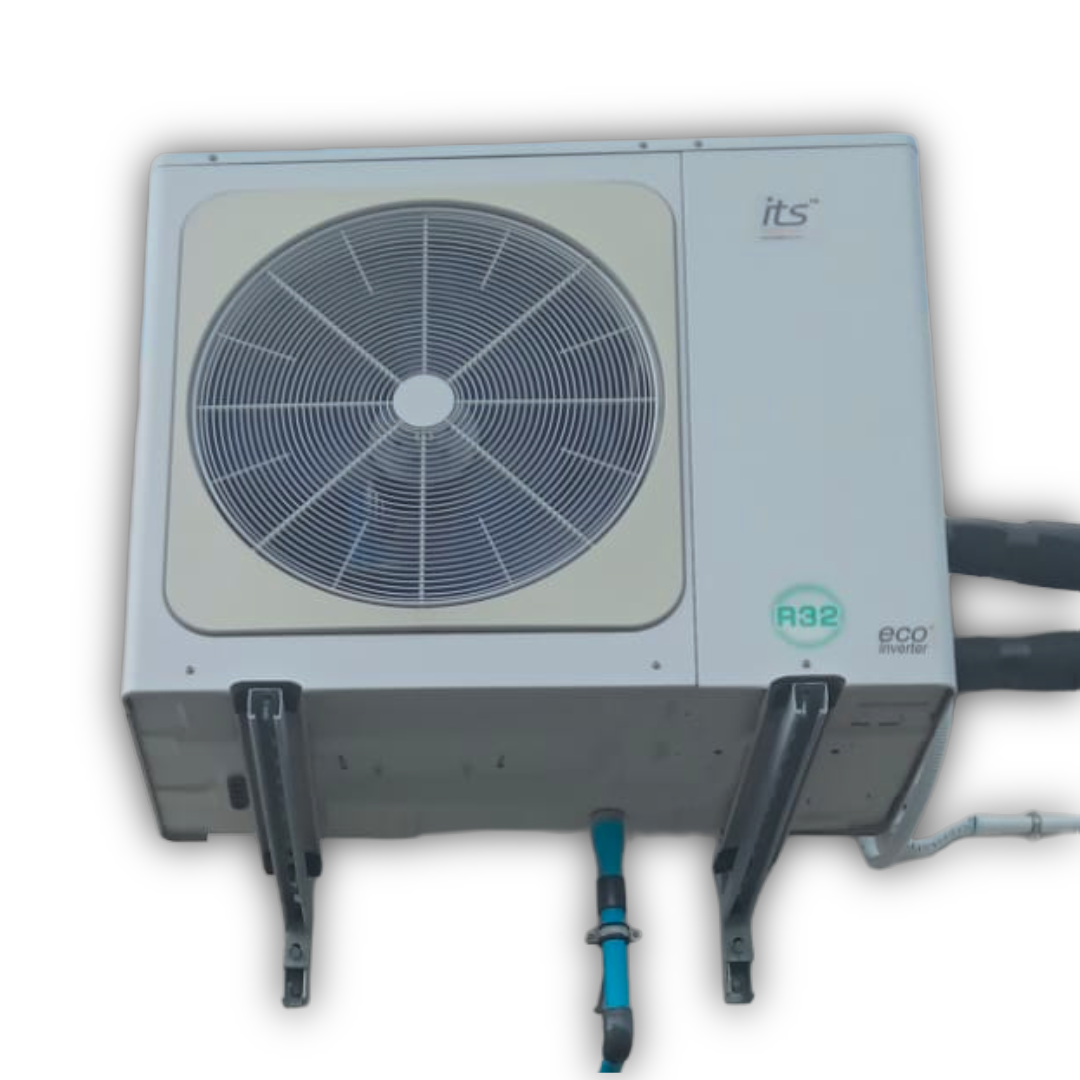

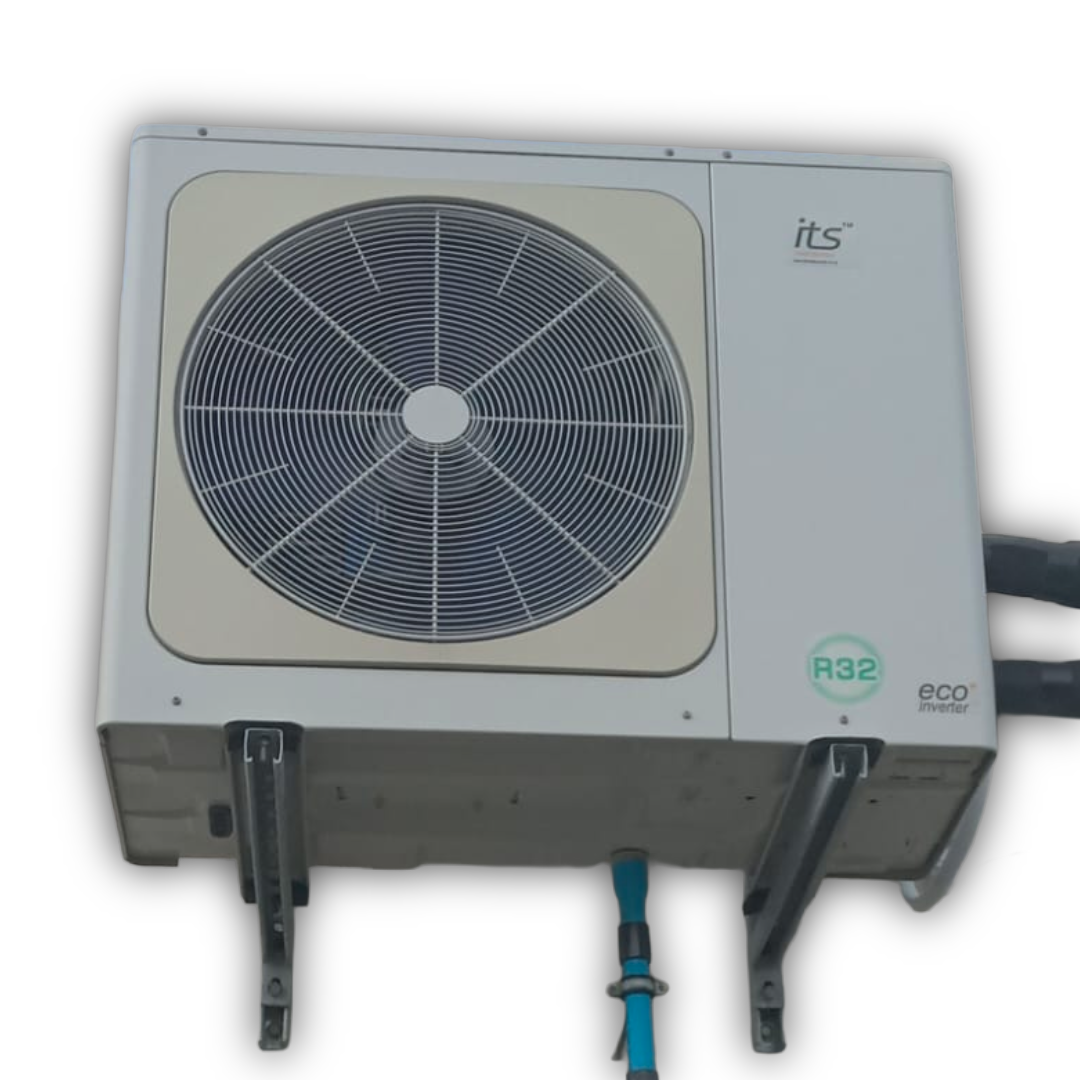

ITS 16.3kW Monobloc Inverter Heat Pump 1 Phase

Name: ITS 16.3kW Monobloc Inverter Heat Pump 1 Phase
Brand: greenwattsa
Price: 53550.0 ZAR
Availability: InStock

← Back

Product variants

R 53,550.00 ZAR

~~R 55,050.00 ZAR~~ R 53,550.00 ZAR

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

🔥 ITS 16.3 kW Monobloc Inverter Heat Pump (1 Phase)

Model: M Thermal Mono ATW Heat Pump (16kW 1-PH)
Brand: ITS Heat Pumps
Type: Air-to-Water (ATW) Monobloc Heat Pump

⚡ Key Features

High-performance 16.3 kW heating output for residential, commercial, and light industrial heating applications.
Designed for space heating, cooling, underfloor heating, fan coils, radiators, and domestic hot water systems.
Advanced monobloc design integrates hydraulic components into a single outdoor unit for simplified installation.
High-efficiency DC inverter compressor and fan motor reduce operating costs and improve energy performance.
Supports dual-zone temperature control, allowing simultaneous operation of underfloor heating and fan coil systems.
Operates reliably in extreme conditions with heating operation down to −25°C.
Utilizes environmentally friendly R32 refrigerant with low Global Warming Potential (GWP).
Smart grid and solar-ready functionality for integration with photovoltaic systems.
Built-in circulation pump and expansion vessel simplify system design.
Suitable for domestic hot water tanks from 200 L to 500 L.

📐 Specifications

Specification	Details
Model	16kW 1-PH Standard Monobloc
Heating Capacity	16.3 kW
Power Supply	220–240 V / 1 Phase / 50 Hz
Refrigerant	R32
Refrigerant Charge	1.80 kg
Application	Space heating, cooling, underfloor heating, radiators, fan coils, DHW
Recommended Tank Size	200 L – 500 L
Operating Temperature (Heating)	-25°C to +43°C
Operating Temperature (Cooling)	-5°C to +43°C
DHW Operating Temperature	-25°C to +43°C
Water Outlet Temperature	Heating: 15°C to 65°C
Cooling Water Temperature	5°C to 25°C
DHW Water Temperature	15°C to 60°C
Water Flow Range	0.70 – 3.00 m³/h
Minimum Circuit Ampacity (MCA)	28 A
Maximum Fuse Protection (MFA)	30 A
Expansion Vessel	5 L (1.5 bar pre-charge)
Maximum Water Pressure	3.0 bar
Dimensions (H × W × D)	865 × 1040 × 410 mm
Installation	Outdoor

🔧 Technical & Build

Specification	Details
System Type	Air-to-Water Monobloc Heat Pump
Compressor Type	DC Inverter
Fan Motor	Variable Speed DC
Installation	Outdoor
Zone Control	Dual-zone temperature control
Smart Grid Ready	Yes
Solar Integration	Yes
Backup Heater Support	External backup heater compatible
Application	Residential and commercial heating systems

ℹ️ Additional Information

Ideal for luxury homes, lodges, guest houses, offices, and commercial buildings.
Suitable for underfloor heating systems, radiators, fan coil units, and domestic hot water applications.
Integrated hydraulic components reduce installation complexity and improve reliability.
Designed for year-round operation, delivering efficient heating, cooling, and hot water production.
Professional installation by a qualified HVAC or plumbing contractor is recommended.

🏷️ Quality & Support

The ITS 16.3 kW Monobloc Heat Pump delivers efficient, all-in-one climate control and hot water production for demanding residential and commercial applications. Combining advanced inverter technology, extreme-weather performance, and simplified installation, it offers reliable year-round comfort with reduced energy consumption. Backed by local technical support and manufacturer warranty coverage, it provides a dependable long-term heating and cooling solution.

USER MANUAL
