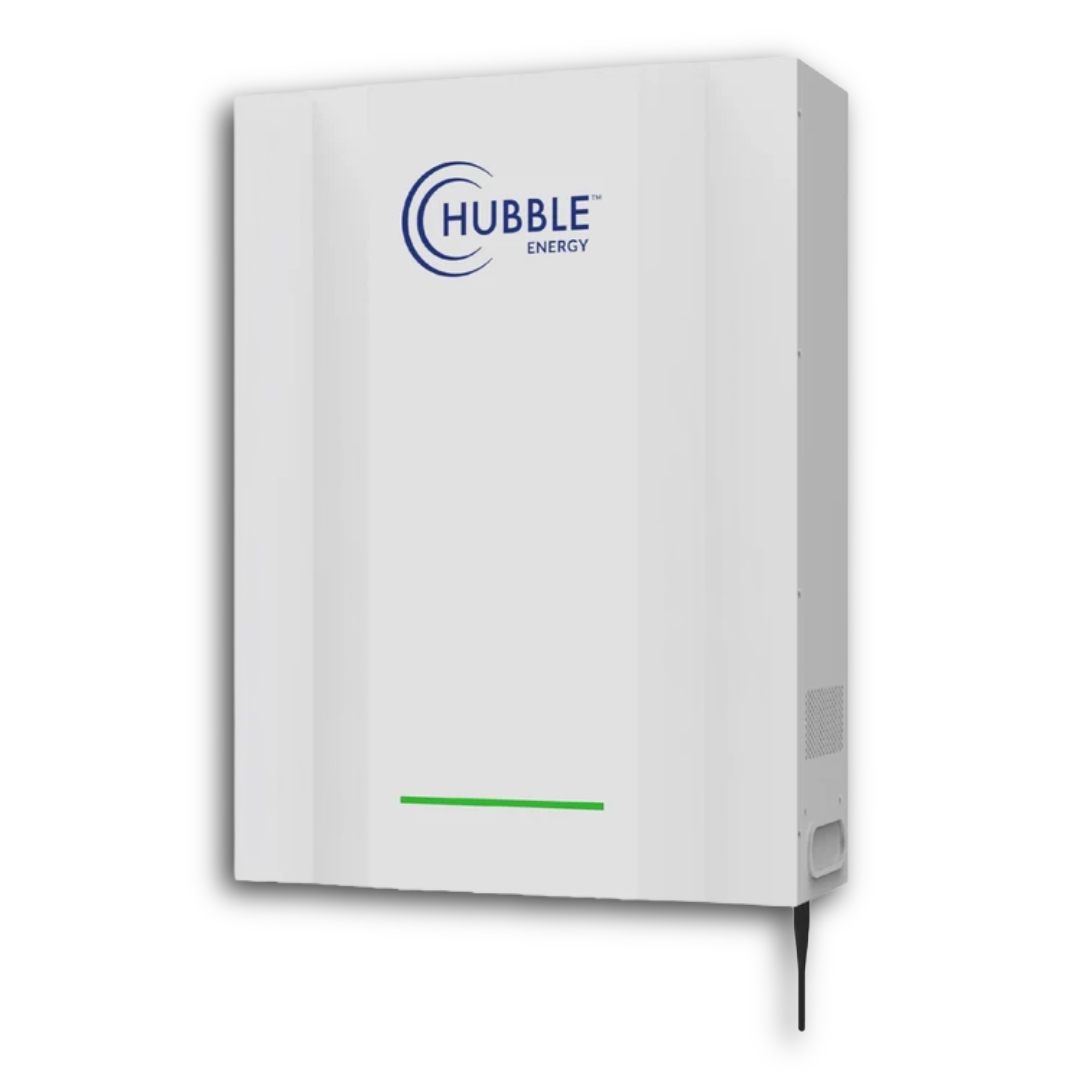

Hubble AM2+ 6kWh Lithium Battery
Couldn't load pickup availability
Hubble AM2+ 6kWh Lithium Battery
Brand: Hubble Energy
Model: AM2+
Type: Lithium-Ion Battery
Nominal Voltage: 48V
Design Capacity: 6kWh
Rated Capacity: 126Ah
Cell Technology: Lithium-Ion Prismatic Cells
Key Features
-
6kWh Energy Storage – Reliable storage for residential solar and backup power systems.
-
1C High-Performance Battery – Supports high charging and discharging currents.
-
100% Depth of Discharge – Designed to maximise usable battery capacity.
-
Integrated Cloudlink Monitoring – Remote monitoring through Hubble Cloudlink.
-
Advanced Battery Management System – Includes voltage protection, current limiting and electronic circuit-breaker protection.
-
Broad Inverter Compatibility – CAN-bus communication supports integration with leading inverter brands.
-
Scalable Storage – Parallel connection of up to 15 battery packs with full communications.
-
Flexible Installation – Suitable for wall mounting or shelf/rack installation.
-
Built-In Safety Protection – Protection against overcharging, over-discharging and excessive temperature.
-
Long Service Life – Designed for approximately 15 years of service under suitable operating conditions.
Specifications
| Specification | Details |
|---|---|
| Model | AM2+ |
| Nominal Voltage | 48V |
| Design Capacity | 6kWh |
| Rated Capacity (5-hour rate) | 126Ah |
| Equalised Charge Voltage | 53.8V |
| Maximum Continuous Charging Current | 105A |
| Maximum Continuous Discharging Current | 105A |
| Recommended Charging Current | 30A |
| C Rating | 1C |
| Depth of Discharge | 100% |
| Cycle Life at 1C | Approximately 1,500 cycles at 100% DoD |
| Design Life | Approximately 15 years |
| Cell Technology | New lithium-ion prismatic cells |
| Monitoring | Hubble Cloudlink |
| Communication Ports | 1 × CAN-bus, 2 × Battery Link Ports |
| Parallel Connection | Up to 15 packs with full communications |
| Dimensions (W × D × H) | 375 × 145 × 467mm |
| Weight | Approximately 42kg |
| Casing | White baked-lacquer steel |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +55°C |
| Protection | Electronic circuit breaker, BMS voltage protection and current limiting |
| Certifications | CE, UN38.3, GB/T 31484-2015, GB/T 31485-2015, GB/T 31486-2015 |
Quality & Support
Genuine Hubble Energy equipment supplied by Green Watt Energy Solutions, with product support and installation guidance.
