  • Hubble AM10 PLUS 10kWh Lithium Battery
1 2

Hubble AM10+ 10kWh Lithium Battery

← Back

R 29,800.00 ZAR
R 31,900.00 ZAR R 29,800.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

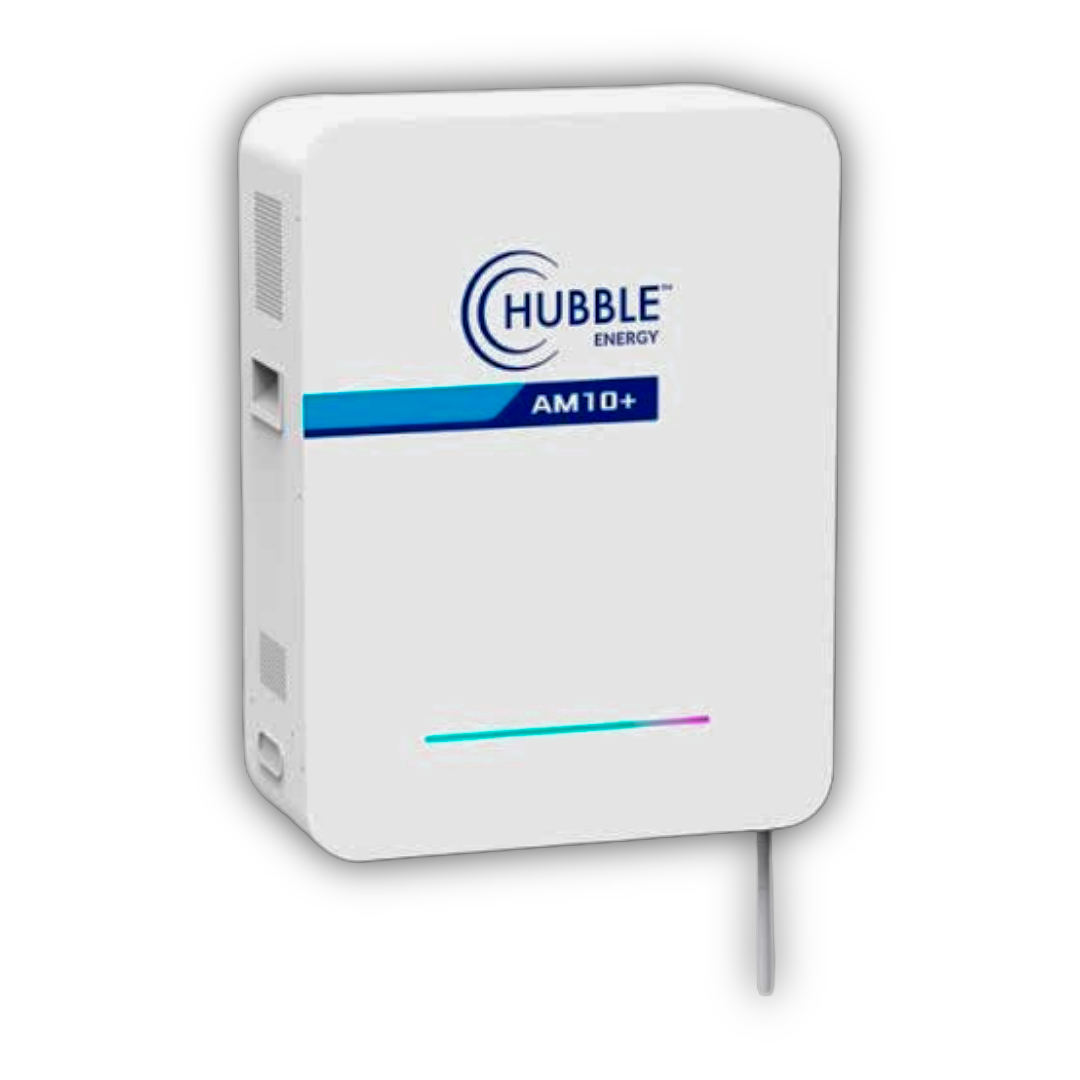

🔋 Hubble AM10 PLUS 10kWh Lithium Battery

Model: AM10 PLUS
Brand: Hubble Lithium
Type: Wall-Mounted LiFePO₄ Lithium Battery Energy Storage System

⚡ Key Features

  • High-capacity 10kWh LiFePO₄ battery designed for residential and light commercial energy storage.
  • High-performance 1C battery capable of delivering up to 200A continuous discharge current.
  • Built-in Cloudlink enables 24/7 remote monitoring and system management.
  • Advanced Battery Management System (BMS) with intelligent current limiting and comprehensive battery protection.
  • Compatible with most leading hybrid inverters and battery chargers via CAN, RS485, and RS232 communication.
  • Supports parallel installation of up to 15 battery units with full communication between batteries.
  • Unlimited cycle warranty within Hubble's 10-year warranty terms and conditions.
  • High energy density with excellent conversion efficiency for maximum system performance.
  • Easy wall-mounted installation with integrated heavy-duty carrying handles.
  • Informative LED status display for battery monitoring and diagnostics.
  • Low self-discharge and excellent high-temperature performance for long-term reliability.
  • Built-in protection against overcharge, over-discharge, overcurrent, and over-temperature conditions.

📐 Specifications

Specification Value
Battery Chemistry LiFePO₄ (Lithium Iron Phosphate)
Rated Capacity 200 Ah
Nominal Voltage 51.2 V
Nominal Energy 10 kWh
Equalized Charge Voltage 55.2 V
Maximum Continuous Charge Current 115 A
Maximum Continuous Discharge Current 200 A (1C)
C-Rating 1C
Parallel Capability Up to 15 Batteries
Communication CAN / RS485 / RS232
Monitoring Built-in Cloudlink
Cell Balancing Passive Cell Balancing
Intelligent Current Limiter Limits charging current to 20 A when exceeding 200 A
Design Life Approximately 15 Years
Cycle Life Unlimited Cycles (within Hubble 10-Year Warranty Terms)
Operating Temperature (Charging) -10°C to +50°C
Storage Temperature 10°C to 50°C
Humidity 15% – 75%
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Certifications CE, IEC, UN38.3
Warranty 10 Years (Unlimited Cycles – Terms & Conditions Apply)

📏 Physical Specifications

Specification Details
Dimensions (H × W × D) 675 × 510 × 230 mm
Weight Approximately 89 kg
Enclosure White Bake Lacquer Steel Case
Installation Wall Mounted

🔧 Technical & Build

Specification Details
System Type Low-Voltage Lithium Battery Energy Storage System
Battery Management Integrated Intelligent BMS
Monitoring Built-in Hubble Cloudlink with Remote Monitoring
Communication Protocols CAN / RS485 / RS232
Scalability Up to 15 Batteries in Parallel
Cooling Method Natural Cooling
Application Residential, Commercial Backup, Hybrid & Off-Grid Solar Systems

ℹ️ Additional Information

  • Fully compatible with Hubble AM-10 battery systems when used with Cloudlink.
  • Native CAN Bus communication enables seamless integration with most leading inverter brands.
  • Designed for high-power applications requiring reliable 1C discharge performance.
  • Remote monitoring provides real-time battery status, performance analytics, and firmware management.
  • Suitable for hybrid, backup, off-grid, and self-consumption solar energy storage systems.
  • Professional installation is recommended for optimal performance and warranty compliance.

🏷️ Quality & Support

The Hubble AM10 PLUS is a premium 10kWh LiFePO₄ energy storage solution engineered for high-performance residential and commercial solar applications. Featuring powerful 1C discharge capability, integrated Cloudlink remote monitoring, advanced battery management, and unlimited cycle coverage within its 10-year warranty, it delivers exceptional reliability, scalability, and long-term value. Designed for seamless integration with leading inverter brands, the AM10 PLUS provides dependable backup power and efficient energy storage for modern solar installations.
