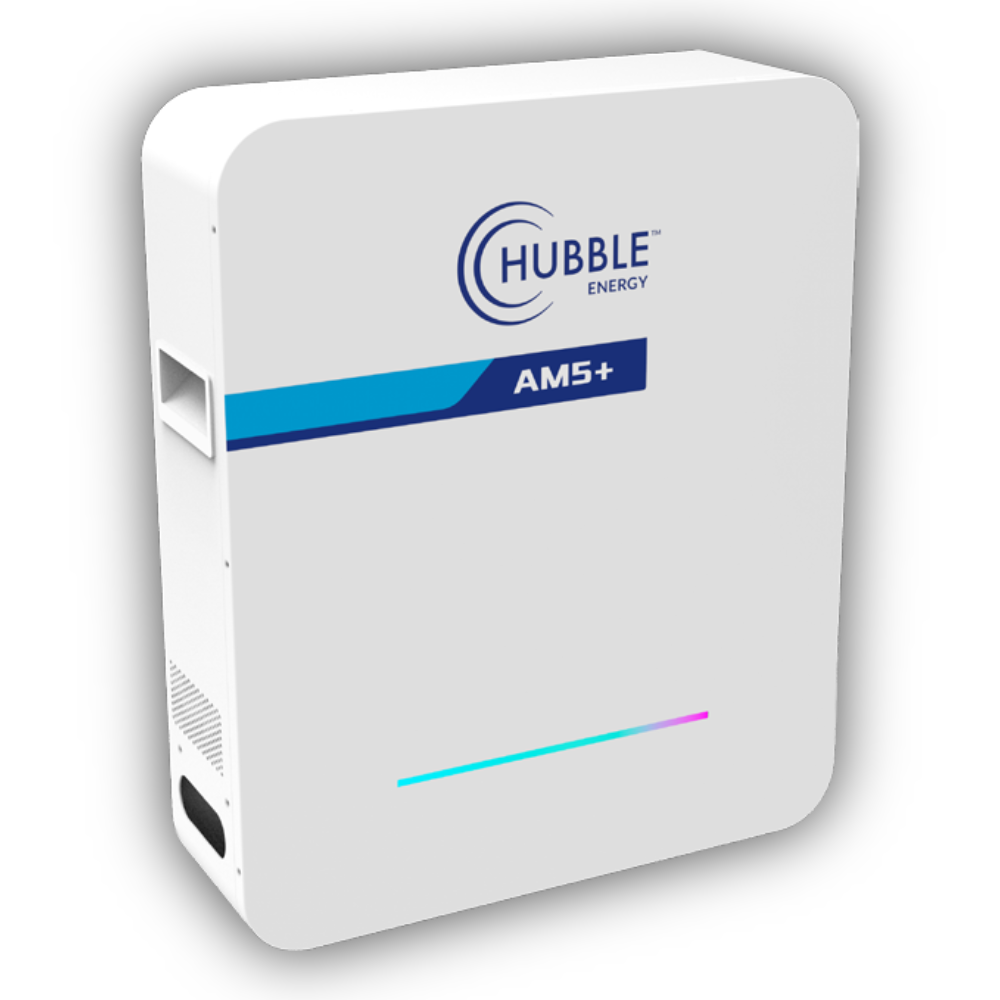

Hubble AM5+ 5.1kWh Lithium Battery
Regular price
R 14,350.00 ZAR
Regular price
R 15,500.00 ZAR
Sale price
R 14,350.00 ZAR
Unit price
per
VAT included.
Shipping calculated at checkout.
Couldn't load pickup availability
Hubble AM-5+ Lithium Battery - 51.2V 5.12kWh
🆔 Models
Battery: Hubble AM-5+ Lithium Battery – 51.2V 5.12kWh
Includes
- Integrated BMS with advanced protection
- Built-in Cloudlink monitoring system
- Steel enclosure (white powder-coated finish)
- CAN-bus and battery link communication ports
Key Features
- 5.12kWh energy capacity ideal for residential and backup systems
- 1C rating for efficient charge and discharge performance
- Built-in Cloudlink for remote monitoring and diagnostics
- Scalable system with up to 225 batteries in parallel
- Long design life of ±15 years
- Unlimited cycles within 10-year warranty (Ts & Cs apply)
- Compact wall-mount or rack-compatible design
- High safety LiFePO₄ prismatic cell technology
Specifications
| Specification | Details |
|---|---|
| Rated Capacity (5HR) | 100 Ah |
| Nominal Voltage | 51.2 V |
| Energy Capacity | 5.12 kWh |
| Equalized Charge Voltage | 55.2 V |
| Max Continuous Charge Current | 100 A |
| Max Continuous Discharge Current | 100 A |
| C Rating | 1C |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W×D×H) | 500 × 153 × 600 mm |
| Weight | ±53 kg |
| Enclosure | White powder-coated steel |
Technical & Build
| Specification | Details |
|---|---|
| Cell Type | Prismatic LiFePO₄ |
| Monitoring | Built-in Cloudlink |
| Parallel Capability | Up to 225 units |
| Communication Ports | CAN-bus, Battery Link Ports |
| Certification | CE, IEC, UN38.3 |
| Protection | Electronic circuit breaker, voltage protection, current limiting |
Operating Conditions
| Specification | Details |
|---|---|
| Charging Temperature | -10°C to +50°C |
| Storage Temperature | 10°C to +50°C |
| Humidity | 15% to 75% |
Additional Information
- Suitable for hybrid, off-grid, and backup power systems
- Compatible with most leading inverter brands
- Installation by qualified professional recommended
Quality & Support
The Hubble AM-5+ delivers reliable, scalable energy storage with advanced monitoring and long service life, making it a dependable solution for residential and commercial backup power applications.
