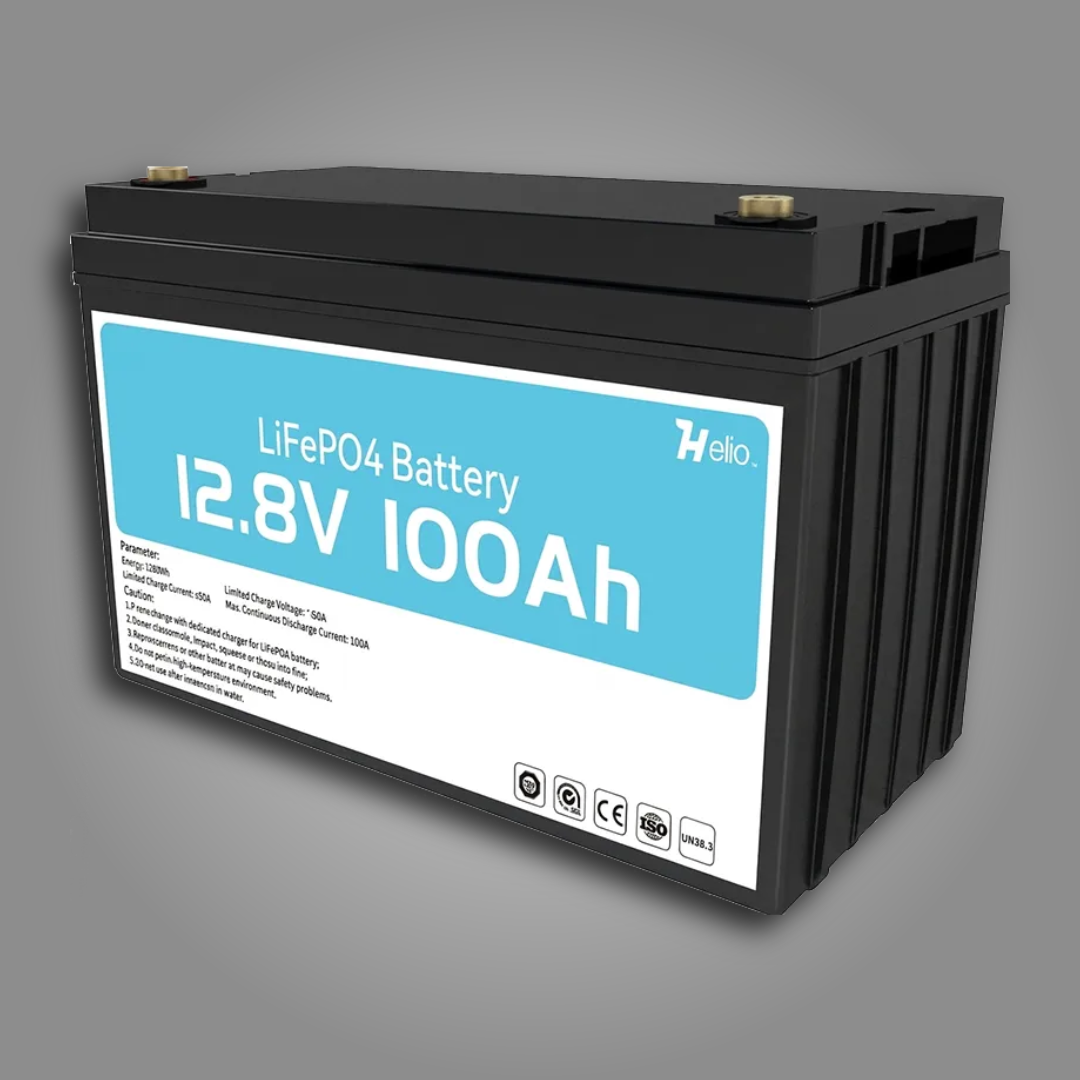

Helio 1.28kWh Lithium-Ion Battery
Couldn't load pickup availability
Helio THS1.2 1.28kWh LiFePO4 Lithium Battery
Brand:
Model: THS1.2
Type: Lithium Iron Phosphate (LiFePO4) Battery
Nominal Voltage: 12.8V
Rated Capacity: 100Ah
Rated Energy: 1.28kWh
Key Features
-
1.28kWh Energy Storage – Compact battery for small-scale energy storage and backup applications.
-
LiFePO4 Cell Technology – Lithium iron phosphate chemistry for reliable energy storage.
-
100A Maximum Operating Current – Supports high-current applications within the battery's operating limits.
-
Up to 1,280W Discharge Power – Provides power for compatible DC loads and systems.
-
3,000+ Cycle Life – Rated for at least 3,000 cycles at 70% depth of discharge, 25°C and 0.5C.
-
Compact Design – Measures 306 × 167 × 216mm and weighs 10.5kg.
Specifications
| Specification | Details |
|---|---|
| Model | THS1.2 |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Rated Energy | 1.28kWh |
| Cell Technology | LiFePO4 (Lithium Iron Phosphate) |
| Maximum Operating Current | 100A |
| Charge Power | 640W |
| Discharge Power | 1,280W |
| Cycle Life | ≥3,000 cycles |
| Cycle Test Conditions | 70% DOD, 25°C, 0.5C |
| Design Life | ≥3 years |
| Operating Temperature | -20°C to 55°C |
| Operating/Storage Humidity | ≤95% RH |
| Maximum Operating Altitude | ≤2,000m |
| Ingress Protection | IP20 |
| Dimensions (L × W × H) | 306 × 167 × 216mm |
| Weight | 10.5kg |
| Certifications / Documentation | UN38.3, MSDS |
Applications
Suitable for compatible 12.8V backup systems, small-scale energy storage and other applications requiring a compact LiFePO4 battery.
Quality & Support
Genuine Helio energy storage equipment supplied by Green Watt Energy Solutions, with product support and installation guidance. 2 Year Warranty
