Ground Mounting Structure 2 Panel Portrait - Per Panel

Ground Mounting Structure 2 Panel Portrait - Per Panel

Model: 2 Panel Portrait Ground Mount (20°)
Brand: Generic / System Kit
Type: Solar Panel Ground Mounting Structure

Key Features

• Designed for 2-panel portrait solar installations
• Optimised 20° tilt angle for improved solar generation
• Pre-galvanised steel structure for corrosion resistance
• Supplied with stainless steel 304 bolts, nuts, and washers
• Reinforced design with gussets and rear brace system
• Compatible with standard purlin and clamp mounting systems
• Engineered for stability, durability, and easy assembly

Components Included

• Rafter Long
• Rafter Short
• Rafter Joiner
• Front Leg
• Rear Leg
• Gussets
• Purlins
• Purlin Joiners
• Panel Mounting Plates
• Bonding Plates
• Rear Brace Set (X-configuration)
• Full Bolt, Nut & Washer Set (M8 assemblies)

Specifications

Installation Overview

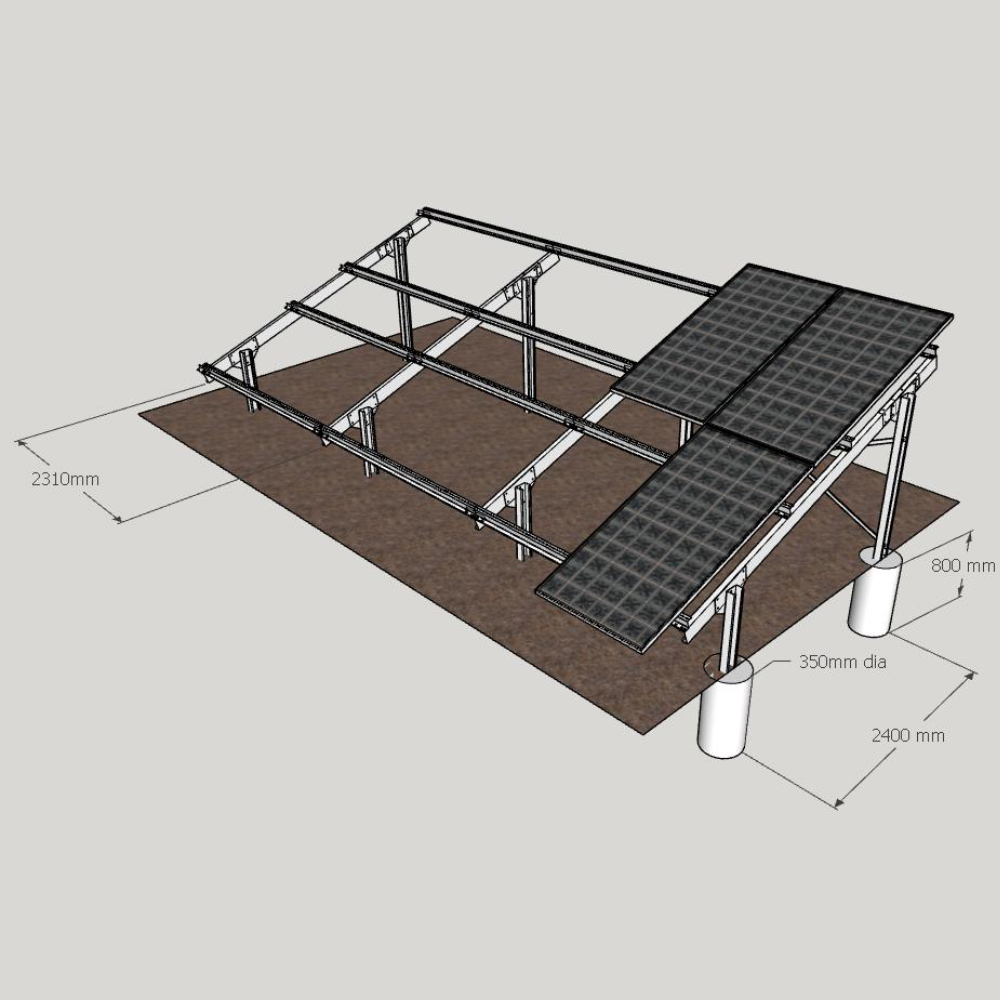

• Foundation:
  Drill 350mm diameter × 800mm deep holes using an auger.
  Insert Y10 rebar (200mm) through front and rear legs before setting in concrete.
• Frame Assembly:
  • Join rafters using rafter joiners (M8x20 bolts)
  • Install gussets for structural reinforcement
  • Attach front and rear legs
• Purlin Installation:
  • Install purlins ensuring straight alignment and level positioning
  • Use purlin joiners on all rafters except outer ones
• Panel Mounting:
  • Fix aluminium mounting plates onto purlins
  • Install bonding plates across one row per panel row
  • Clip and tighten middle & end clamps (8Nm torque)
• Bracing:
  • Install rear braces in X configuration for stability
  • Secure with brace plate and M8 hardware

Important Notes

• Purlins must be installed with the Z-profile facing the rear
• Bonding strips only installed on every second purlin row
• Ensure structure is level and square before concreting

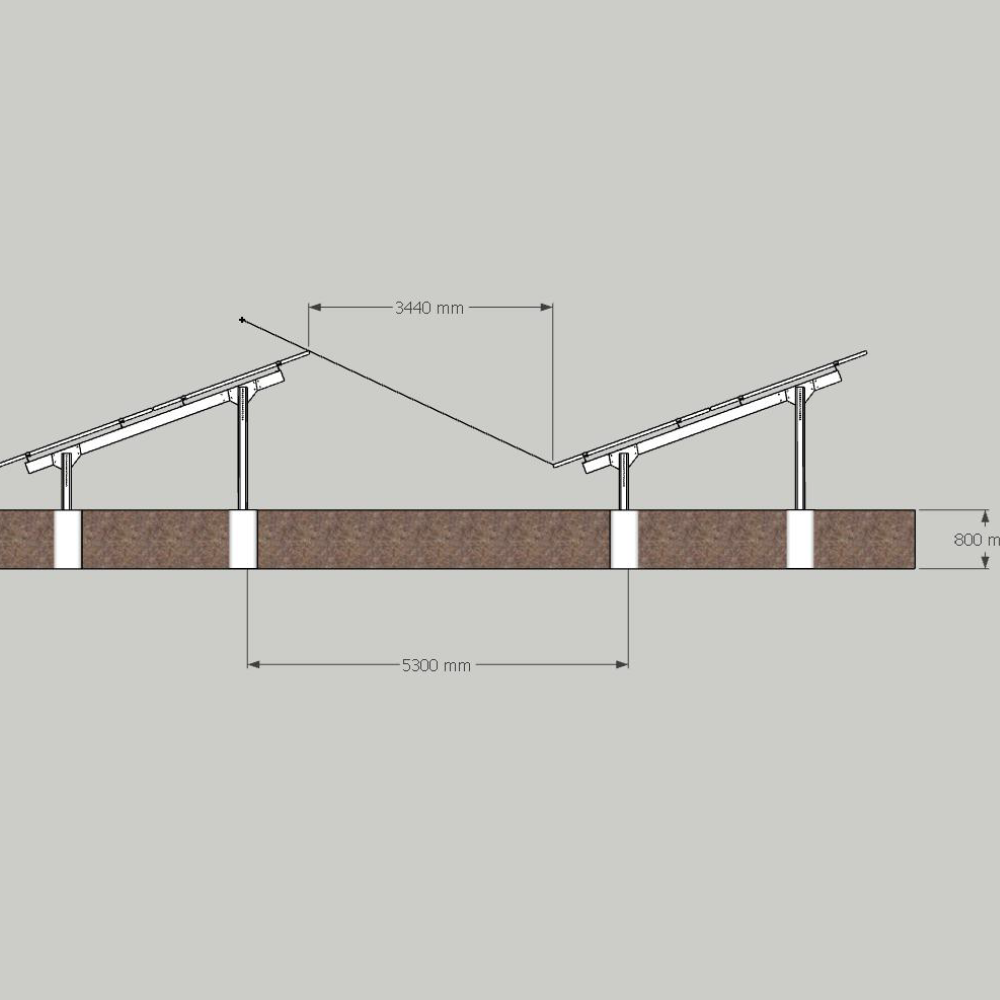

• Maintain proper sun angle spacing (approx. 25° consideration)

Quality & Support

Built for long-term outdoor performance, this ground mounting system combines galvanised structural strength with stainless steel fastening to resist corrosion and harsh weather conditions. The modular design ensures easy installation, solid stability, and reliable solar panel support for residential or small commercial applications.
