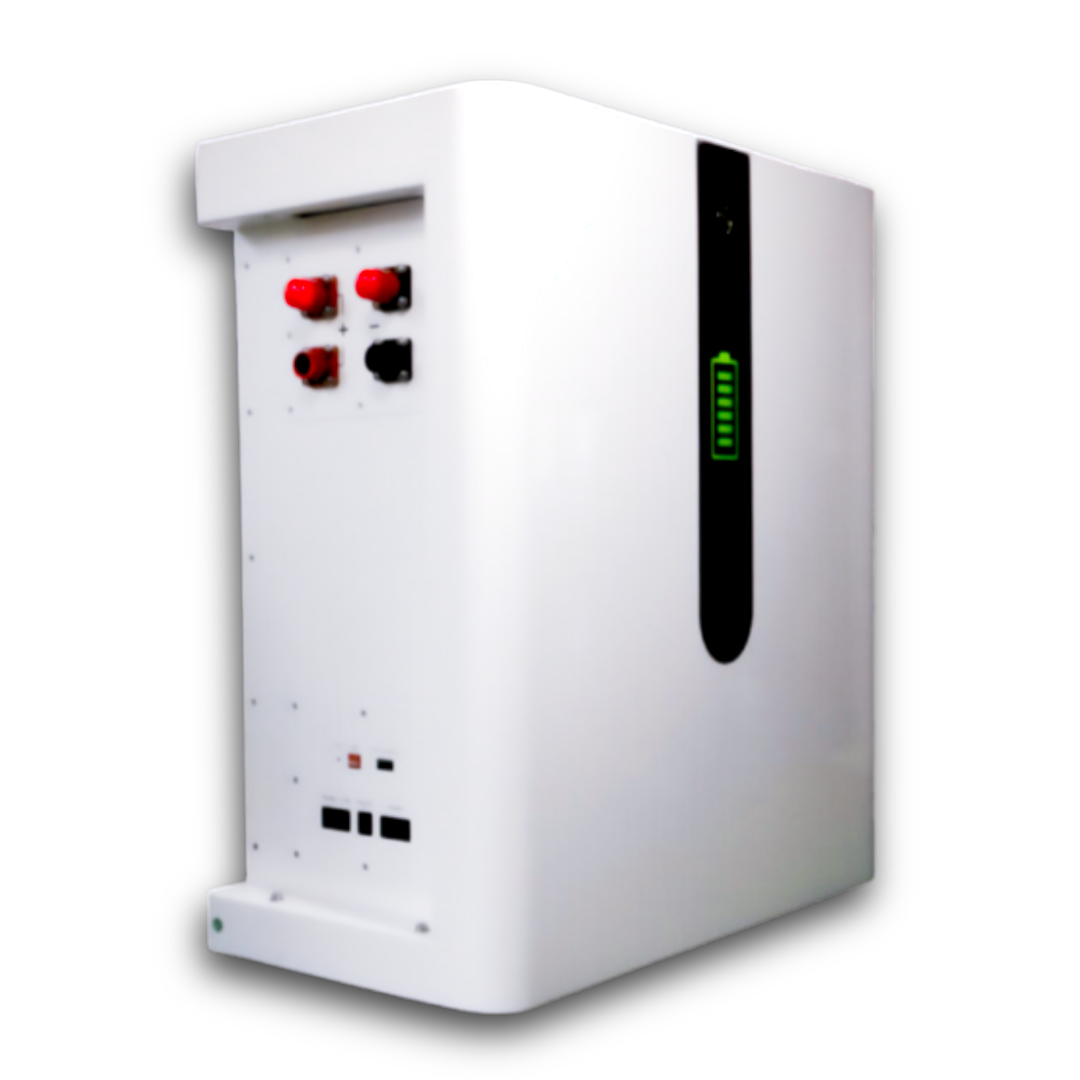

🔋 Greenrich 10.24kWh SSRE 51.2V Series Lithium Battery
Model: SSRE-51.2V Series
Brand: Greenrich
Type: Low-Voltage Lithium Iron Phosphate (LiFePO₄) Battery — Stackable Residential Energy Storage System
⚡ Key Features
- 10.24kWh energy capacity designed for residential solar storage and backup power applications.
- Advanced LiFePO₄ battery chemistry offering excellent safety, thermal stability, and long service life.
- High-performance 0.75C discharge capability delivering up to 7.5kW continuous power output.
- Supports up to 8 batteries in parallel for expanded energy storage capacity.
- Integrated Battery Management System (BMS) providing comprehensive protection and monitoring.
- Compatible with leading hybrid and off-grid inverter platforms via CAN, RS485, and RS232 communication.
- Stackable design for flexible installation and space-efficient energy storage.
- Over 6,000 cycle lifespan for dependable long-term performance.
- 90% Depth of Discharge (DoD) maximises usable battery capacity.
- Backed by a 10-year warranty.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SSRE-51.2V Series |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 43.2V – 58.4V |
| Nominal Capacity | 200Ah |
| Energy Capacity | 10.24kWh |
| Usable Capacity | 9.22kWh |
| Depth of Discharge (DoD) | 90% |
| Recommended Charge Current | 40A |
| Maximum Charge Current | 110A |
| Recommended Discharge Current | 100A |
| Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 160A |
| Standard Charge Power | 5,000W |
| Maximum Charge Power | 6,500W |
| Standard Discharge Power | 7,500W |
| Maximum Discharge Power | 9,000W |
| Cycle Life | ≥ 6,000 Cycles |
| Parallel Expansion | 1 – 8 Units |
| Communication | CAN / RS485 / RS232 |
| Monitoring Parameters | Voltage, Current, Cell Temperature, PCBA Temperature |
| Installation | Stackable |
| Dimensions (W × D × H) | 550 × 280 × 610 mm |
| Weight | 94 ± 1 kg |
| Operating Temperature (Charge) | 0°C to 55°C |
| Operating Temperature (Discharge) | -20°C to 60°C |
| Storage Temperature | -20°C to 45°C |
| Humidity | 10% – 85% |
| Warranty | 10 Years |
🏷️ Quality & Support
The Greenrich SSRE 10.24kWh battery is a premium residential energy storage solution engineered for solar backup, hybrid systems, and off-grid applications. Featuring robust LiFePO₄ technology, high power output capability, intelligent battery management, and scalable expansion up to eight units, it delivers reliable long-term performance for modern energy storage requirements. Backed by a 10-year warranty and over 6,000 life cycles, the SSRE series provides dependable power security for homes and small businesses.
