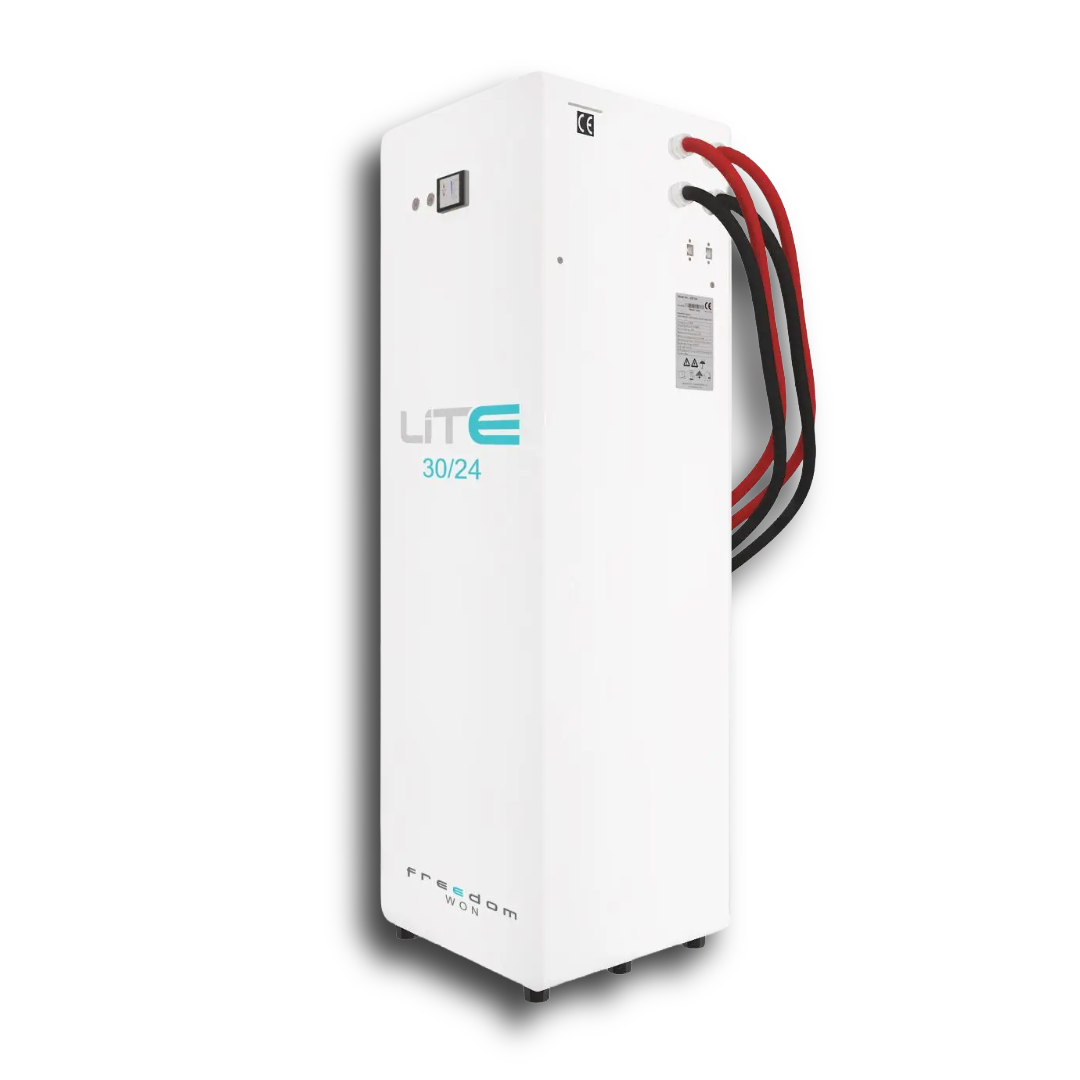

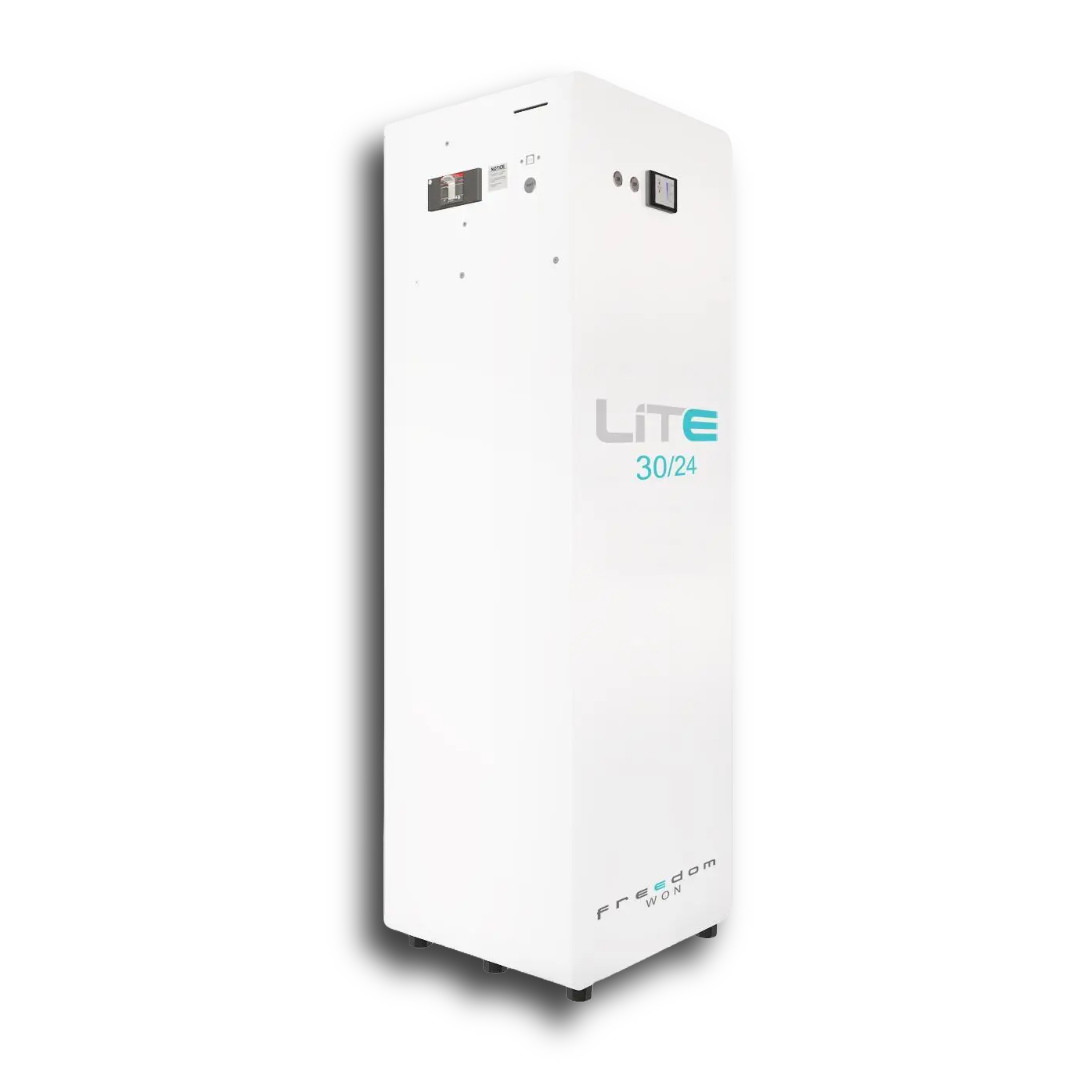

Freedom Won 30kWh LiTE Home 30/24 Lithium Battery - 52V
Regular price
R 126,950.00 ZAR
Regular price
R 139,100.00 ZAR
Sale price
R 126,950.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Freedom Won LiTE Home 30/24 Lithium Battery - 52V
🆔 Models
Battery: Freedom Won LiTE Home 30/24 Lithium Battery - 52V
Includes
- Integrated BMS with full protection suite
- Aluminium indoor enclosure (IP20 rated)
- Shunt Trip Circuit Breaker
- USB communication cable (for PC connection)
- CAN Bus termination resistor
Key Features
- 30kWh total energy capacity with high usable output
- Compatible with 48V inverter systems (52V nominal)
- High discharge capability (up to 38kW peak)
- Advanced BMS with full fault protection and monitoring
- Long lifespan with up to 20+ years expected service life
- Built-in State of Charge display and diagnostics interface
- Reliable indoor installation with durable aluminium enclosure
Specifications
| Specification | Details |
|---|---|
| Total Energy Capacity | 30 kWh |
| Usable Energy (80% DoD) | 24 kWh |
| Usable Energy (90% DoD) | 27 kWh |
| Current Capacity | 600 Ah |
| Nominal Voltage | 52V (Min: 47V / Max: 56V) |
| Max / Continuous Charge Current | 600 A |
| Max / Continuous Charge Power | 30 kW |
| Max / Continuous Discharge Current | 750 A / 600 A |
| Max / Continuous Discharge Power | 38 kW / 30 kW |
| Max Recommended Inverter Size | 25 kVA |
| Short Circuit Current | 12 kA |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (H×W×D) | 1300 × 413 × 370 mm |
| Crated Dimensions | 1396 × 586 × 568 mm |
| Weight | 254 kg |
| Crated Weight | 293 kg |
Technical & Build
| Specification | Details |
|---|---|
| DC Connection | 2 × 95mm² Permopower fly leads per electrode |
| Enclosure | Aluminium, white coated, indoor (IP20) |
| Protection | Overcurrent, voltage, temperature, weak cell detection, SoC control |
| Circuit Breaker | Shunt trip with BMS integration |
| Control Interface | USB Serial + RJ45 (BMS & inverter comms) |
| User Interface | SOC display, error indicator, reset button |
Additional Requirements
- CAN Bus cable (RJ45 LAN) – required (not included)
- Some inverters may require custom communication cable
- Installation per manufacturer guidelines recommended
Quality & Support
Built for long-term performance, the Freedom Won LiTE Home 30/24 delivers reliable energy storage with advanced protection and industry-leading lifespan, making it ideal for larger residential and commercial backup and solar applications.
