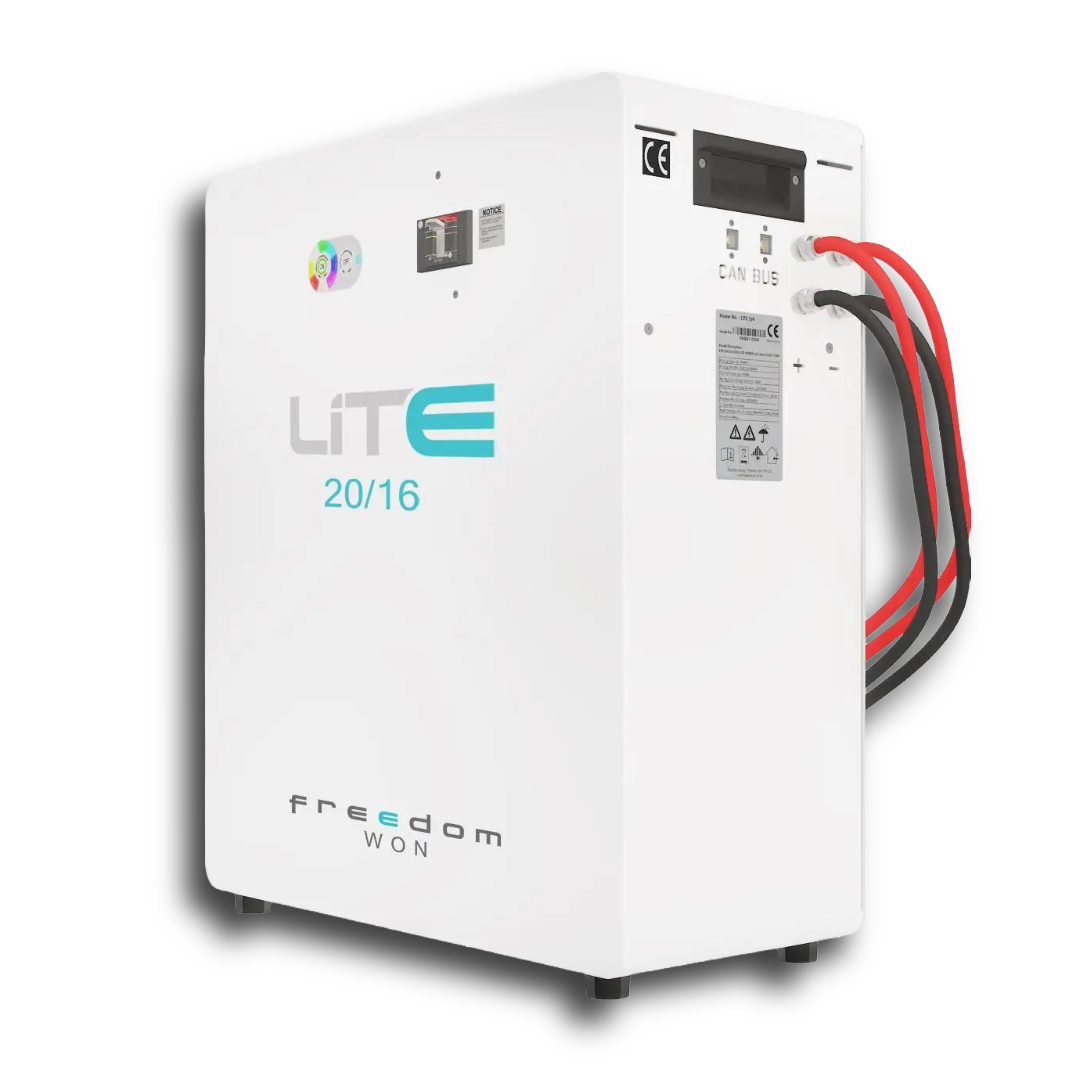

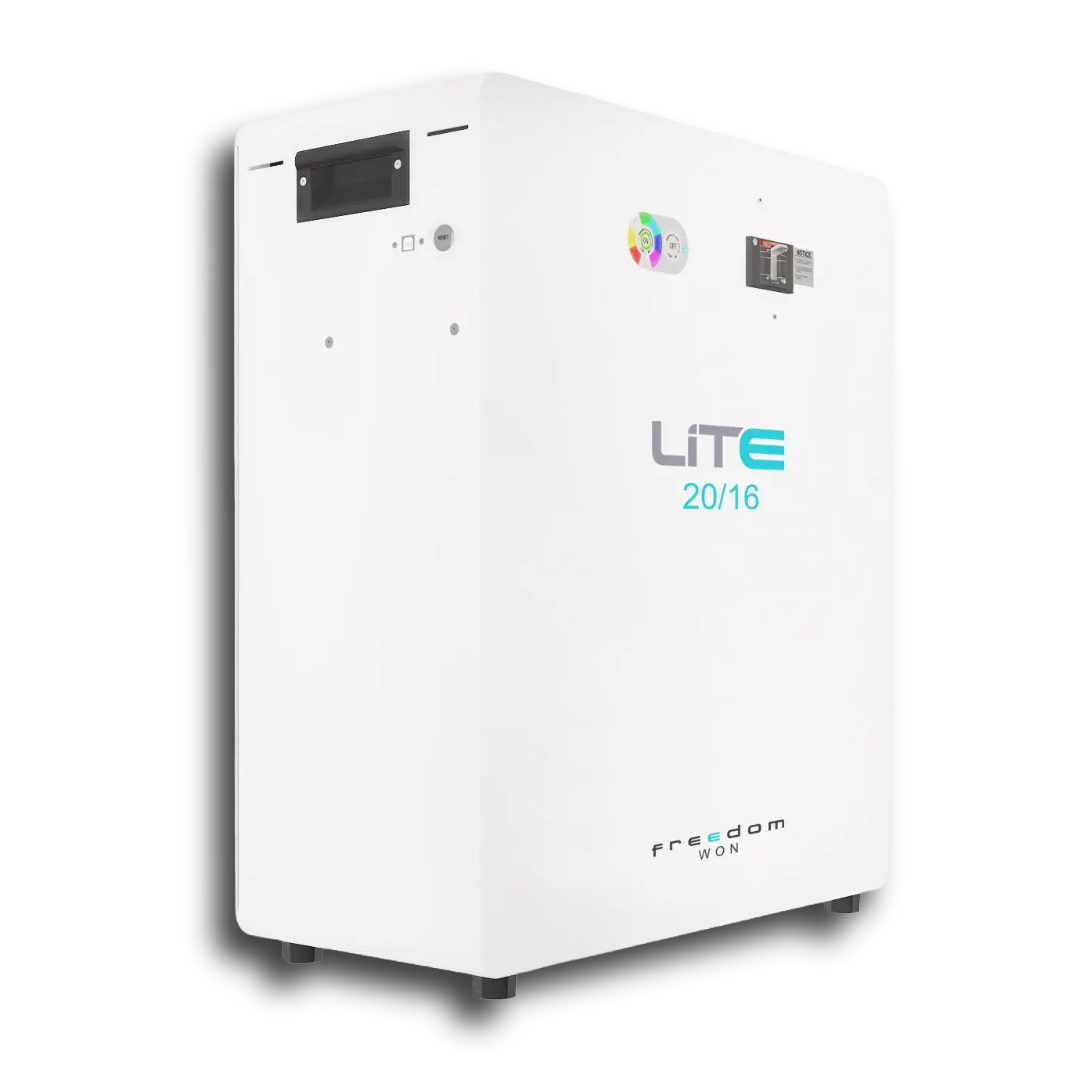

Freedom Won 20kWh LiTE Home 20/16 Lithium Battery – 52 V
Regular price
R 88,750.00 ZAR
Regular price
R 94,150.00 ZAR
Sale price
R 88,750.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Freedom Won LiTE Home 20/16 Lithium Battery - 52V
🆔 Models
Battery: Freedom Won LiTE Home 20/16 Lithium Battery - 52V
Includes
- Integrated BMS with full protection suite
- Aluminium indoor enclosure (IP20 rated)
- Shunt Trip Circuit Breaker
- USB communication cable (for PC connection)
- CAN Bus termination resistor
Key Features
- 20kWh total energy capacity with high usable output
- Compatible with 48V inverter systems (52V nominal)
- High discharge capability (up to 24kW peak)
- Advanced BMS with full fault protection and monitoring
- Long lifespan with up to 20+ years expected service life
- Built-in State of Charge display and diagnostics interface
- Reliable indoor installation with durable aluminium enclosure
Specifications
| Specification | Details |
|---|---|
| Total Energy Capacity | 20 kWh |
| Usable Energy (80% DoD) | 16 kWh |
| Usable Energy (90% DoD) | 18 kWh |
| Current Capacity | 400 Ah |
| Nominal Voltage | 52V (Min: 47V / Max: 56V) |
| Max / Continuous Charge Current | 400 A |
| Max / Continuous Charge Power | 20 kW |
| Max / Continuous Discharge Current | 480 A / 400 A |
| Max / Continuous Discharge Power | 24 kW / 20 kW |
| Max Recommended Inverter Size | 15 kVA |
| Short Circuit Current | 12 kA |
Physical Specifications
| Specification | Model A | Model B |
|---|---|---|
| Dimensions (H×W×D) | 745 × 640 × 290 mm | 732 × 534 × 365 mm |
| Crated Dimensions | 848 × 805 × 509 mm | 836 × 696 × 588 mm |
| Weight | 173 kg | 179 kg |
| Crated Weight | 206 kg | 200 kg |
Technical & Build
| Specification | Details |
|---|---|
| DC Connection | 2 × 50mm² Permopower fly leads per electrode |
| Enclosure | Aluminium, white coated, indoor (IP20) |
| Protection | Overcurrent, voltage, temperature, weak cell detection, SoC control |
| Circuit Breaker | Shunt trip with BMS integration |
| Control Interface | USB Serial + RJ45 (BMS & inverter comms) |
| User Interface | SOC display, error indicator, reset button |
Additional Requirements
- CAN Bus cable (RJ45 LAN) – required (not included)
- Some inverters may require custom communication cable
- Installation per manufacturer guidelines recommended
Quality & Support
Built for long-term performance, the Freedom Won LiTE Home 20/16 delivers reliable energy storage with advanced protection and industry-leading lifespan, making it ideal for both residential and small business backup and solar applications.
