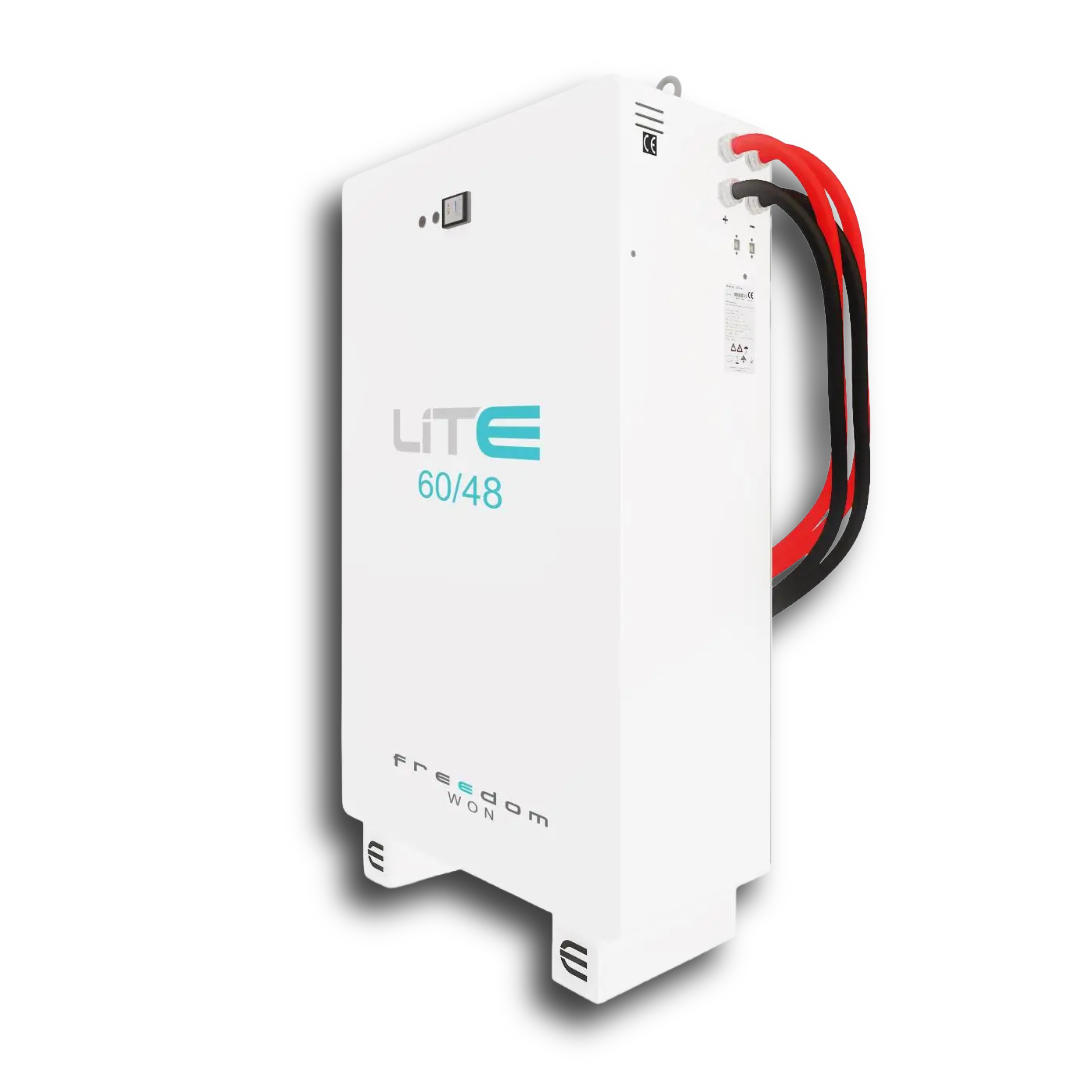

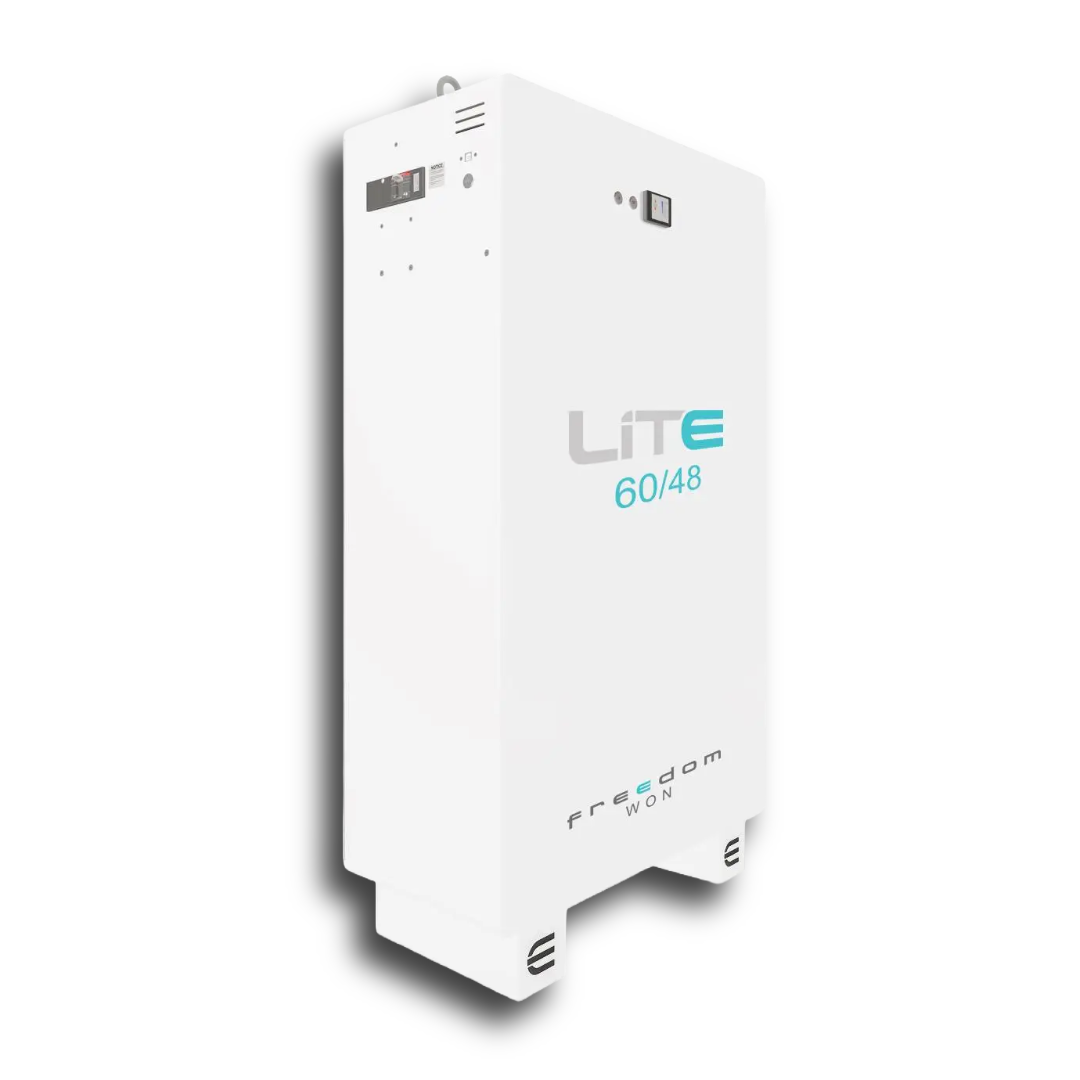

Freedom Won 60kWh LiTE Business 60/48 Lithium Battery - 52V

🆔 Models

Battery: Freedom Won LiTE Business 60/48 Lithium Battery - 52V

Includes

  • Integrated BMS with full protection suite
  • Aluminium indoor enclosure (IP20 rated)
  • Shunt Trip Circuit Breaker
  • USB communication cable (for PC connection)
  • CAN Bus termination resistor

Key Features

  • 60kWh total energy capacity with high usable output
  • Compatible with 48V inverter systems (52V nominal)
  • High discharge capability (up to 50kW peak)
  • Advanced BMS with full fault protection and monitoring
  • Long lifespan with up to 20+ years expected service life
  • Built-in State of Charge display and diagnostics interface
  • Designed for large commercial and industrial energy storage applications

Specifications

Specification Details
Total Energy Capacity 60 kWh
Usable Energy (80% DoD) 48 kWh
Usable Energy (90% DoD) 54 kWh
Current Capacity 1200 Ah
Nominal Voltage 52V (Min: 47V / Max: 56V)
Max / Continuous Charge Current 800 A
Max / Continuous Charge Power 40 kW
Max / Continuous Discharge Current 1000 A / 800 A
Max / Continuous Discharge Power 50 kW / 40 kW
Max Recommended Inverter Size 35 kVA
Short Circuit Current 20 kA

Physical Specifications

Specification Details
Dimensions (H×W×D) 1350 × 800 × 370 mm
Crated Dimensions 1506 × 956 × 568 mm
Weight 508 kg
Crated Weight 563 kg

Technical & Build

Specification Details
DC Connection 2 × 95mm² Permopower fly leads per electrode
Enclosure Aluminium, white coated, indoor (IP20)
Protection Overcurrent, voltage, temperature, weak cell detection, SoC control
Circuit Breaker Shunt trip with BMS integration
Control Interface USB Serial + RJ45 (BMS & inverter comms)
User Interface SOC display, error indicator, reset button

Additional Requirements

  • CAN Bus cable (RJ45 LAN) – required (not included)
  • Some inverters may require custom communication cable
  • Installation per manufacturer guidelines recommended

Quality & Support

Engineered for high-demand environments, the Freedom Won LiTE Business 60/48 delivers powerful, reliable energy storage with advanced protection and extended service life, making it ideal for large-scale commercial and industrial applications.


Battery Spec Sheet

Installation Manual
