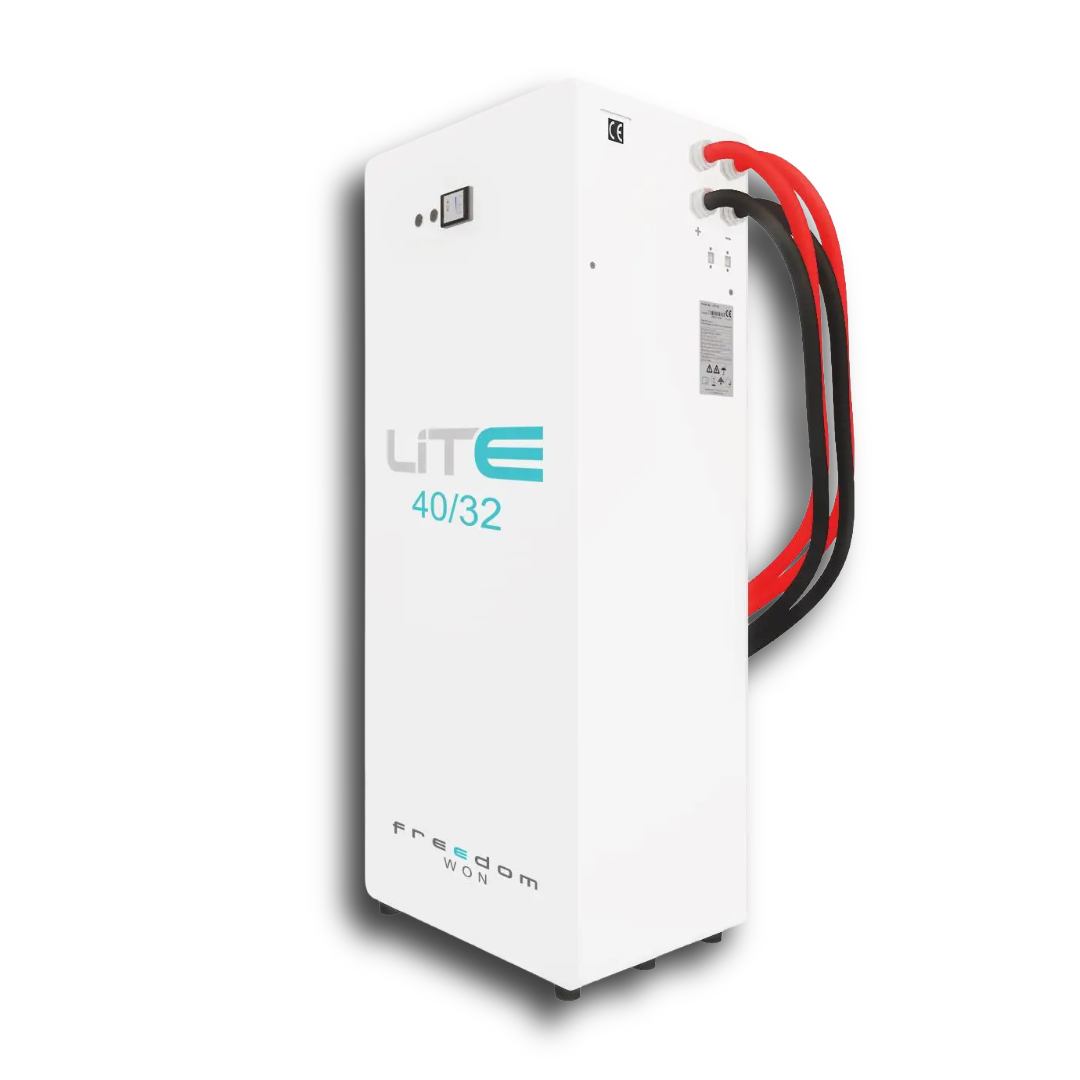

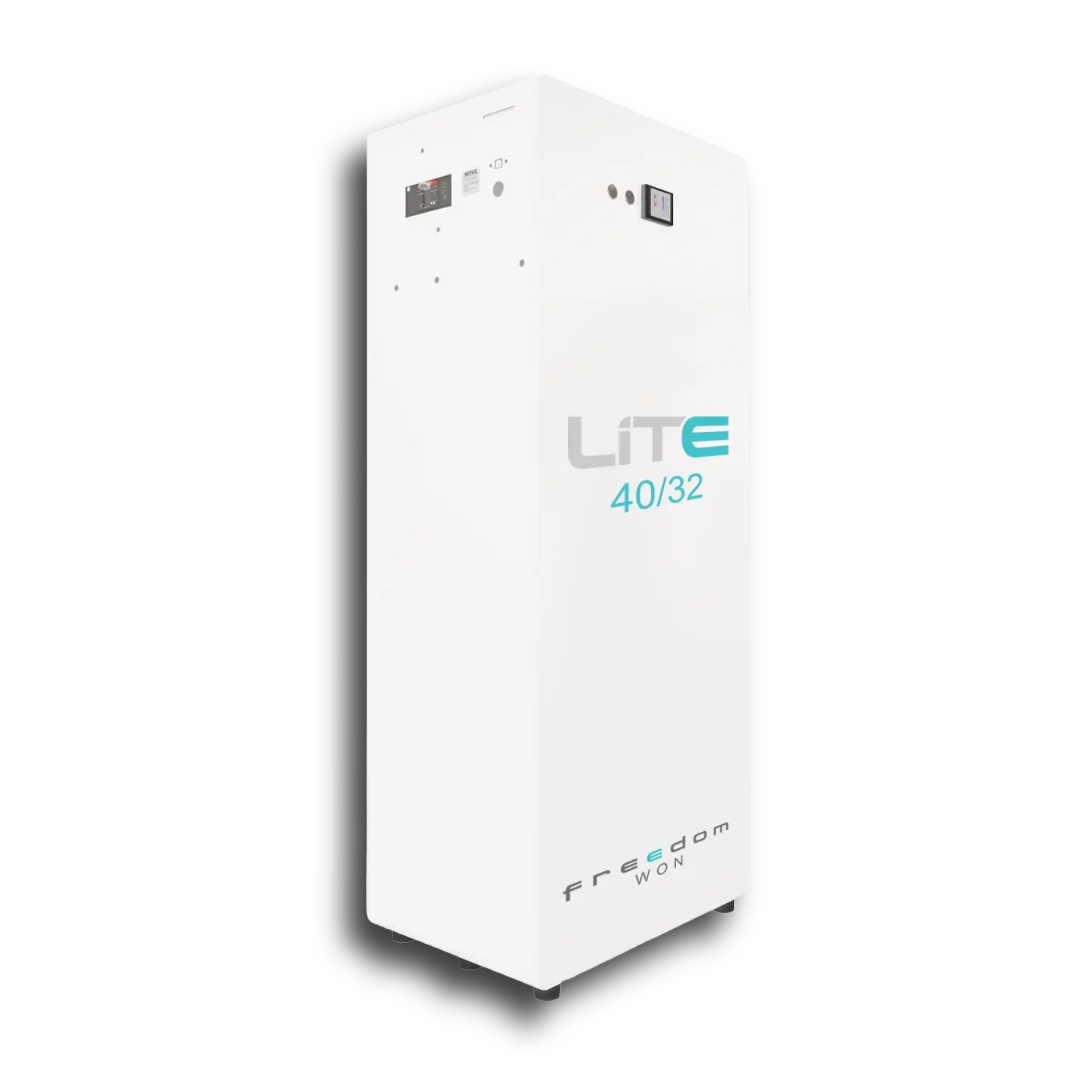

Freedom Won 40kWh LiTE Business 40/32 Lithium Battery - 52V

🆔 Models

Battery: Freedom Won LiTE Business 40/32 Lithium Battery - 52V

Includes

  • Integrated BMS with full protection suite
  • Aluminium indoor enclosure (IP20 rated)
  • Shunt Trip Circuit Breaker
  • USB communication cable (for PC connection)
  • CAN Bus termination resistor

Key Features

  • 40kWh total energy capacity with high usable output
  • Compatible with 48V inverter systems (52V nominal)
  • High discharge capability (up to 38kW peak)
  • Advanced BMS with full fault protection and monitoring
  • Long lifespan with up to 20+ years expected service life
  • Built-in State of Charge display and diagnostics interface
  • Designed for larger residential, commercial, and business applications

Specifications

Specification Details
Total Energy Capacity 40 kWh
Usable Energy (80% DoD) 32 kWh
Usable Energy (90% DoD) 36 kWh
Current Capacity 800 Ah
Nominal Voltage 52V (Min: 47V / Max: 56V)
Max / Continuous Charge Current 600 A
Max / Continuous Charge Power 30 kW
Max / Continuous Discharge Current 750 A / 600 A
Max / Continuous Discharge Power 38 kW / 30 kW
Max Recommended Inverter Size 25 kVA
Short Circuit Current 15 kA

Physical Specifications

Specification Details
Dimensions (H×W×D) 1300 × 522 × 370 mm
Crated Dimensions 1396 × 786 × 568 mm
Weight 326 kg
Crated Weight 376 kg

Technical & Build

Specification Details
DC Connection 2 × 95mm² Permopower fly leads per electrode
Enclosure Aluminium, white coated, indoor (IP20)
Protection Overcurrent, voltage, temperature, weak cell detection, SoC control
Circuit Breaker Shunt trip with BMS integration
Control Interface USB Serial + RJ45 (BMS & inverter comms)
User Interface SOC display, error indicator, reset button

Additional Requirements

  • CAN Bus cable (RJ45 LAN) – required (not included)
  • Some inverters may require custom communication cable
  • Installation per manufacturer guidelines recommended

Quality & Support

Built for demanding applications, the Freedom Won LiTE Business 40/32 delivers high-capacity, reliable energy storage with advanced protection and long service life, making it ideal for commercial, industrial, and large-scale backup power systems.
