  • Eenovance RT 5.12-HX 61.44kWh High-Voltage Battery System
1 2

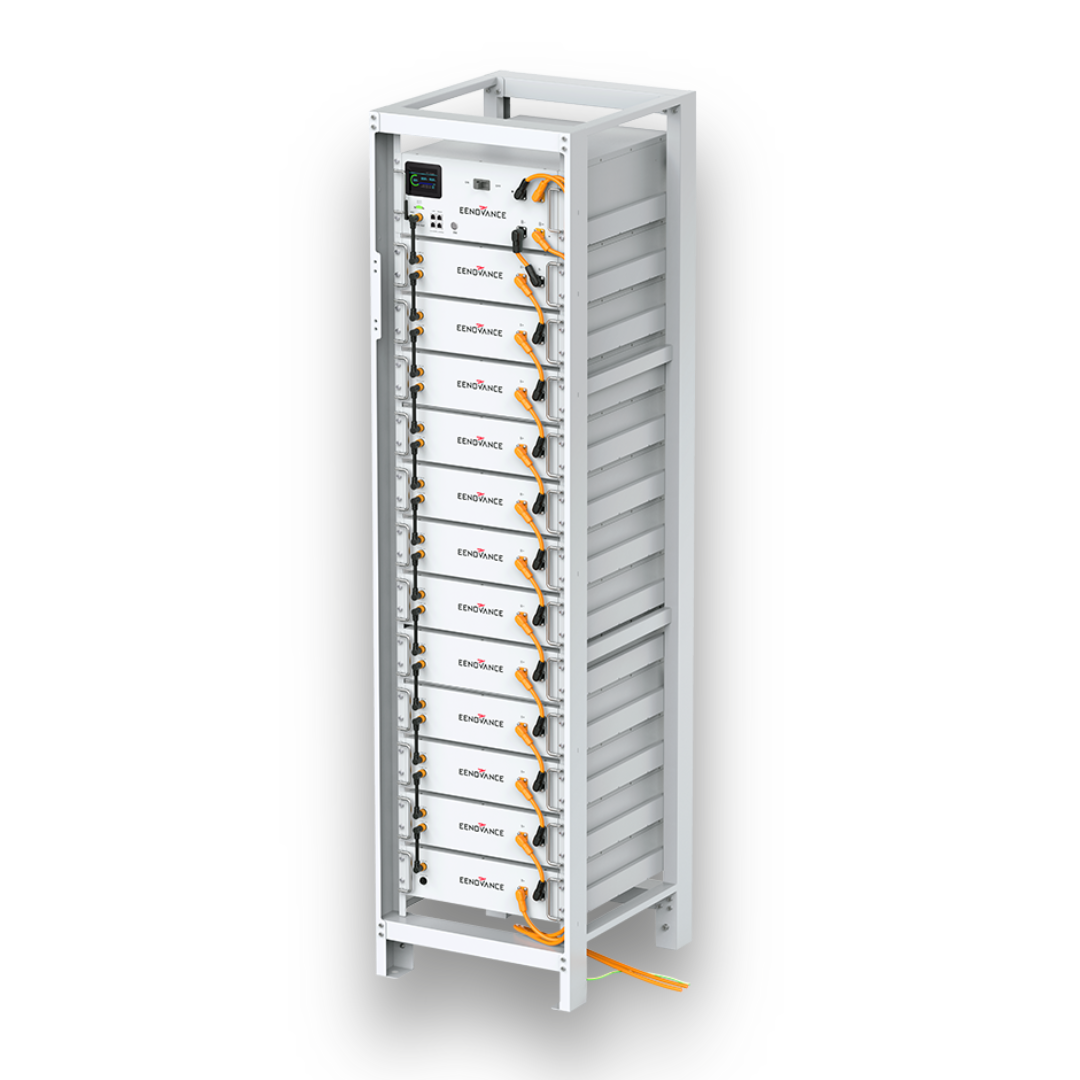

Eenovance RT 5.12-HX 61.44kWh High-Voltage Battery System

← Back

R 199,500.00 ZAR
R 219,500.00 ZAR R 199,500.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

🔋 Eenovance RT 5.12-HX 61.44kWh High-Voltage Battery System

Model: RT 5.12-HX Series
Brand: EEnovance
Type: Modular High-Voltage LiFePO₄ Battery Energy Storage System

⚡ Key Features

  • Modular high-voltage battery system with configurations ranging from 20.48kWh to 61.44kWh.
  • Built using premium Grade A LiFePO₄ (LFP) battery cells for maximum safety and longevity.
  • Flexible expansion from 4 to 12 battery modules per stack.
  • Supports up to 15 stacks in parallel for large-scale commercial and industrial energy storage applications.
  • Advanced CCS manufacturing technology for improved reliability and cell consistency.
  • Precise monitoring of voltage, temperature, and State of Charge (SOC).
  • Integrated Battery Control Unit (BCU) for intelligent system management and protection.
  • Built-in Wi-Fi connectivity for remote monitoring and firmware updates.
  • LCD display provides real-time system status, battery information, alarms, and SOC monitoring.
  • Plug-and-play cable architecture for simplified installation and maintenance.
  • Compatible with major high-voltage inverter and PCS manufacturers.
  • Designed for on-grid, hybrid backup, and off-grid applications.
  • Backed by a comprehensive 10-year warranty.

📐 Specifications

Specification Value
Battery Chemistry Lithium Iron Phosphate (LiFePO₄)
Battery Module Capacity 5.12kWh
Battery Module Voltage 51.2V
Battery Module Weight 43kg
System Capacity Range 20.48kWh – 61.44kWh
Modules per Stack 4 – 12
Nominal Voltage Range 204.8V – 614.4V
Operating Voltage Range 179.2V – 673.92V
Maximum Charge / Discharge Current 100A
Communication CAN / RS485 / RS232 / Wi-Fi / LAN
Display LCD Display
Parallel Expansion Up to 15 Stacks
Installation Floor Standing
Operating Temperature Charge: 0°C to 50°C / Discharge: -15°C to 50°C
Humidity ≤95% RH (Non-Condensing)
Protection Rating IP20
Scalability 4–12 Modules per Stack
Warranty 10 Years

📦 Available Configurations

Model Modules Capacity
RT 5.12-H4 4 Modules 20.48kWh
RT 5.12-H5 5 Modules 25.60kWh
RT 5.12-H6 6 Modules 30.72kWh
RT 5.12-H7 7 Modules 35.84kWh
RT 5.12-H8 8 Modules 40.96kWh
RT 5.12-H9 9 Modules 46.08kWh
RT 5.12-H10 10 Modules 51.20kWh
RT 5.12-H11 11 Modules 56.32kWh
RT 5.12-H12 12 Modules 61.44kWh

🔧 Technical & Build

Specification Details
Battery Control Unit RT 5.12-H-BCU
Battery Module RT-5.12-QC-A
Rack Options RT-R8-A / RT-R12-A
Cycle Life Long-Life LFP Technology
Monitoring Voltage, Temperature, SOC, Alerts
Firmware Updates Wi-Fi Enabled
Cooling Method Natural Cooling
Compliance UN38.3, IEC62619, IEC62040-1, IEC62477-1, IEC61000 Series

🏷️ Quality & Support

The EEnovance RT 5.12-HX Series delivers scalable high-voltage energy storage for commercial, industrial, and large residential applications. Featuring premium LiFePO₄ battery technology, intelligent monitoring, flexible modular expansion, and compatibility with leading inverter brands, the system provides reliable long-term performance for hybrid, backup, and off-grid installations. With capacities from 20.48kWh to 61.44kWh per stack and support for up to 15 parallel stacks, the RT 5.12-HX is engineered to meet demanding energy storage requirements while maintaining safety, efficiency, and operational flexibility.
-----------
DATASHEET
