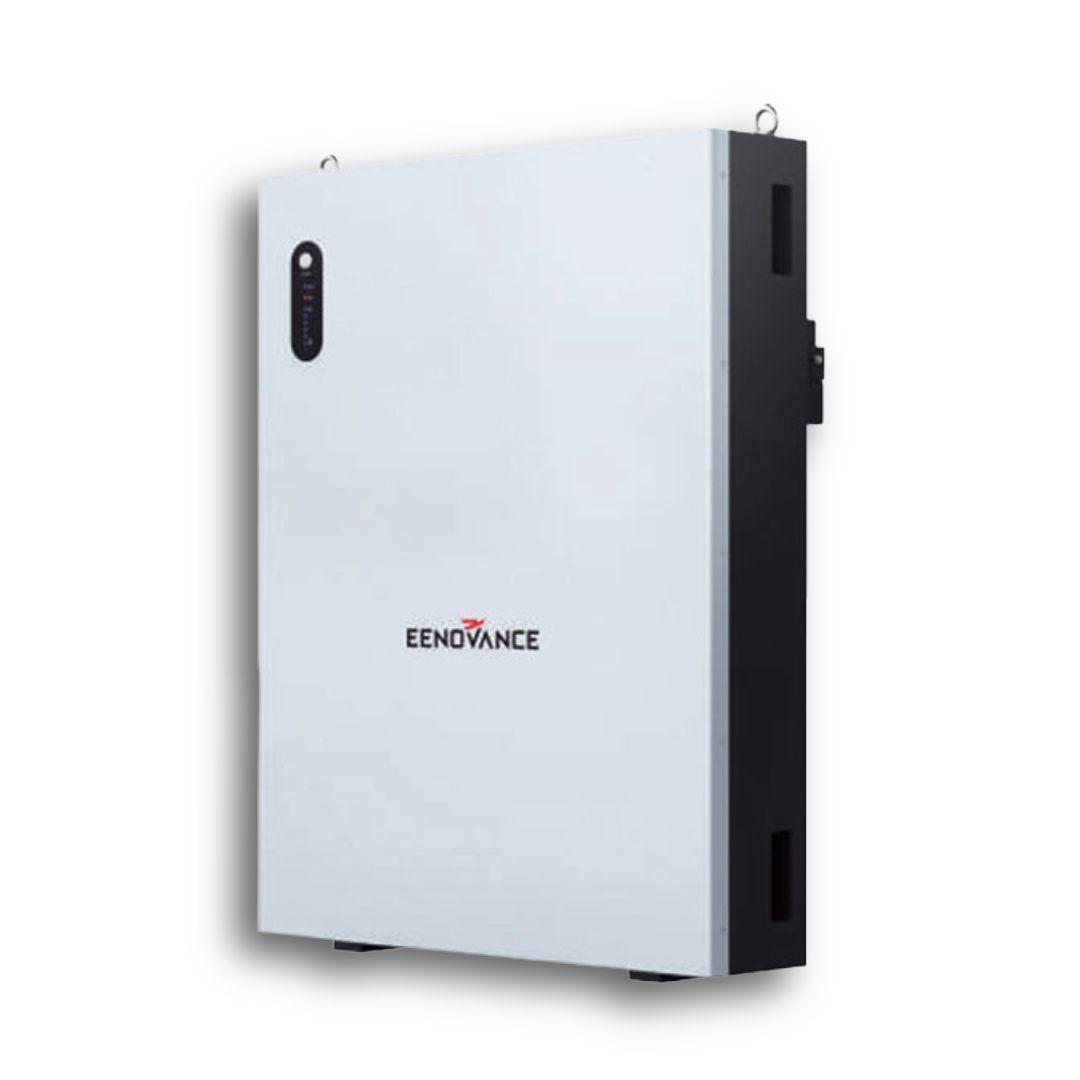

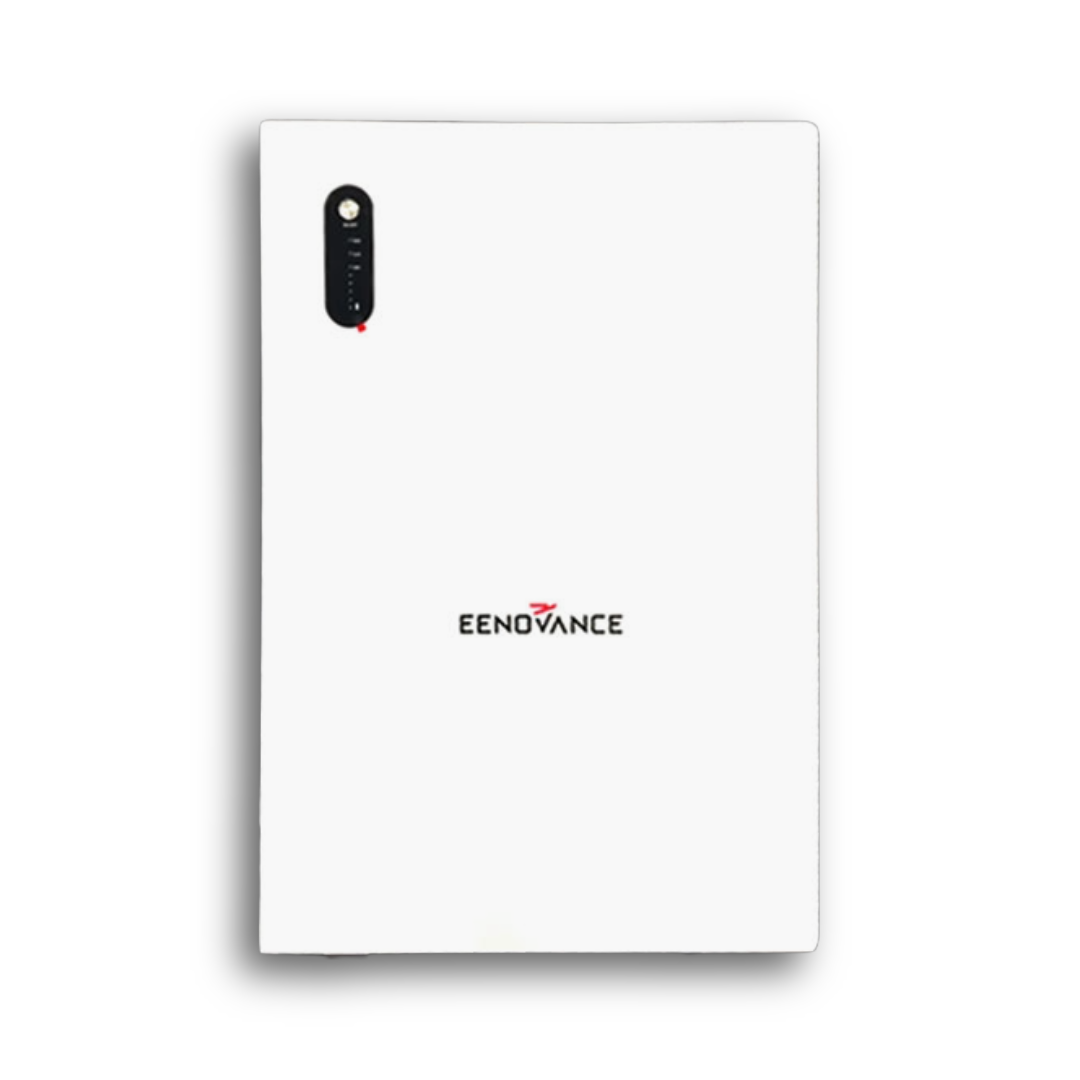

🔋 Eenovance MANA 15.97kWh Lithium Battery
Model: MANA 16.0
Brand: EEnovance
Type: Low-Voltage Lithium Iron Phosphate (LiFePO₄) Battery Energy Storage System
⚡ Key Features
- High-capacity 15.97kWh usable energy storage designed for demanding residential and light commercial applications.
- Premium LiFePO₄ battery technology delivers superior safety, thermal stability, and long service life.
- High-performance architecture supporting up to 300A charge and discharge current.
- Expandable system design allowing up to 15 batteries in parallel for larger energy storage requirements.
- Integrated Battery Management System (BMS) with advanced protection against overcharge, over-discharge, short circuit, overcurrent, and temperature faults.
- Built-in Wi-Fi connectivity for remote monitoring and energy management via smartphone.
- Multiple communication interfaces including CAN, RS485, and RS232 for broad inverter compatibility.
- Flexible installation options supporting both wall-mounted and floor-standing configurations.
- Smart LED and SOC indicators provide clear visual system status monitoring.
- Compatible with leading hybrid, backup, and off-grid inverter platforms.
- Designed for residential energy storage, backup power, and solar self-consumption applications.
- Backed by a comprehensive 10-year warranty.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | MANA 16.0 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2V |
| Operating Voltage Range | 44.8V – 56.16V |
| Usable Energy Capacity | 15.97kWh |
| Maximum Charge Current | 300A |
| Maximum Discharge Current | 300A |
| Cycle Life | ≥ 6,000 Cycles |
| Parallel Expansion | Up to 15 Units |
| Communication | CAN / RS485 / RS232 / Wi-Fi |
| User Interface | LED Indicators & SOC Display |
| Installation | Wall-Mounted or Floor-Standing |
| Protection Rating | IP20 |
| Operating Temperature (Charge) | 0°C to 50°C |
| Operating Temperature (Discharge) | -15°C to 50°C |
| Relative Humidity | ≤95% RH (Non-Condensing) |
| Dimensions (W × D × H) | 720 × 160 × 916 mm |
| Weight | 130 kg |
| Warranty | 10 Years |
🔧 Technical & Build
| Specification | Details |
|---|---|
| Battery Technology | Grade A LiFePO₄ Cells |
| Smart Monitoring | Smartphone App Monitoring |
| Energy Management | Real-Time Battery Monitoring |
| Application Modes | Grid-Tied, Hybrid, Backup & Off-Grid |
| Scalability | Up to 15 Batteries in Parallel |
| Safety Protection | Advanced BMS Protection |
| Compatible Systems | Major Hybrid & Off-Grid Inverter Brands |
| Certifications | UN38.3, IEC62619, IEC61000 |
📦 Included
- 1 × EEnovance MANA 16.0 Battery
- Parallel Connection Cable
- PCS Connection Cable
🏷️ Quality & Support
The EEnovance MANA 16.0 is the flagship battery in the MANA residential energy storage range, delivering nearly 16kWh of usable energy in a compact low-voltage platform. Combining high-current capability, intelligent monitoring, scalable expansion, and proven LiFePO₄ technology, it provides reliable long-term energy storage for solar, backup, and off-grid applications. With support for up to 15 batteries in parallel and over 6,000 life cycles, the MANA 16.0 offers a powerful and future-ready energy solution backed by a 10-year warranty.
DATASHEET
