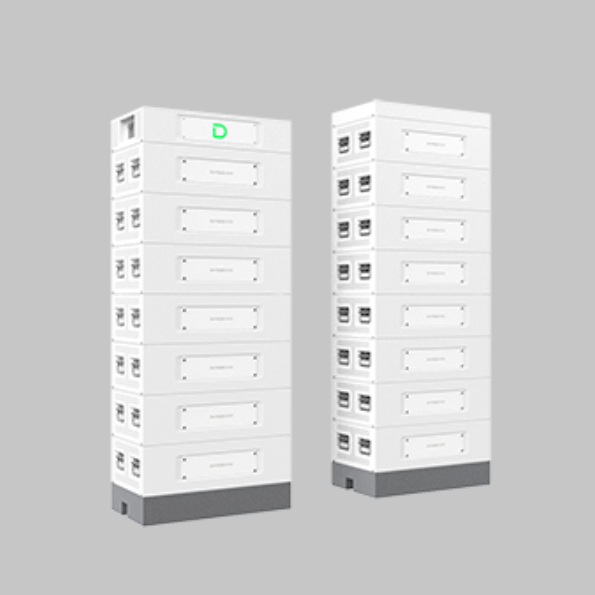

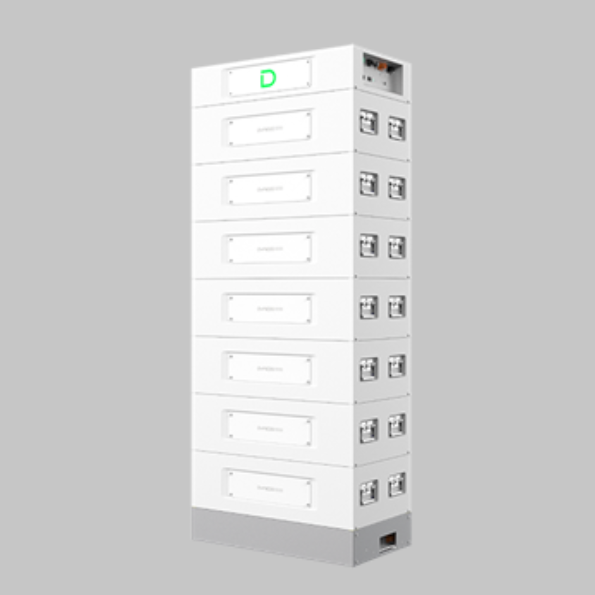

Dyness STACK280 186.37kWh
Couldn't load pickup availability
🔋 Dyness STACK280 186.37kWh
Brand: Dyness
Type: Modular Stacked Li-ion Battery Energy Storage System
INCLUDES:
1 x Dyness STACK280 BDU Single Unit (DYN-BDU280)
13 x Dyness STACK280 14.3kWh Battery (DYN-S51280)
⚡ Key Features
-
Scalable capacity from 57.4 kWh up to 2.58 MWh by stacking up to 12 clusters. (The Deye and Sunsynk High voltage inverters require a minimum of 4 batteries to provide minimum startup battery voltage)
-
Uses high-capacity 280 Ah LFP modules; each cluster is “plug-and-play” with free-stacking design.
-
Built with advanced safety features including built-in aerosol automatic fire-extinguisher that activates within ~5 seconds.
-
Long lifespan design: ≥ 8,000 cycles and covered by a 10-year warranty.
📐 Specifications (high-level)
| Specification | Value |
|---|---|
| System Energy Range | 43 kWh – 215.04 kWh (single cluster) |
| Maximum Expansion | Up to ~2.58 MWh |
| Module Specification | 51.2 V / 280 Ah |
| Cycle Life | ≥ 8,000 cycles |
| Warranty | 10 years (limited) |
🏷️ Quality & Support
Dyness is known for high-quality energy-storage solutions with modular designs, smart safety features and strong service support. The STACK280 is aimed at commercial, industrial and larger residential installations where large capacity and expansion-flexibility matter.
