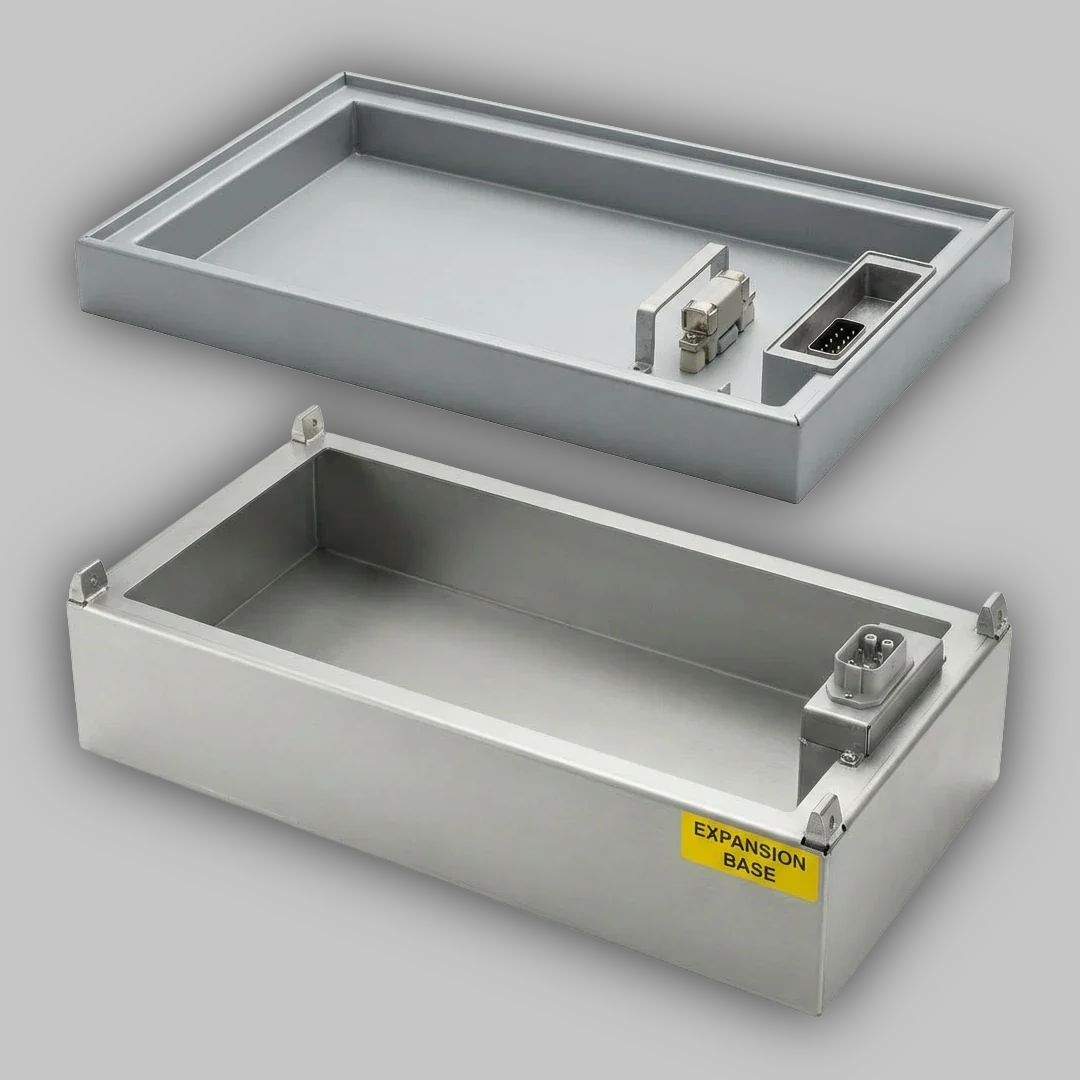

Dyness STACK100 PRO Base & Cover Extension Kit C
Model: STACK100 PRO Package C
Brand: Dyness
Type: Battery Expansion Base & Cover Kit (Dual-Column Configuration)
Key Features
• Engineered extension kit — designed specifically for STACK100 PRO systems exceeding 12 battery modules
• Enables dual-column configuration — required for installations with 13 to 15 modules
• IP66-rated enclosure — superior protection against dust and water ingress for indoor and outdoor use
• Complete expansion solution — includes base, cover, and all required interconnection cabling
• Integrated communication support — ensures seamless BMS synchronization via CAN/RS485
• Heavy-duty construction — ensures structural stability and safe load distribution
• Precision-engineered components — exact fitment for professional system integration
• Secure installation — includes M12 expansion bolts for solid floor anchoring
• Plug-and-install design — simplifies system expansion for installers
Specifications
| Specification | Details |
|---|---|
| Product Name | STACK100 PRO Package C |
| Application Range | 13–15 Battery Modules |
| Protection Rating | IP66 |
| Expansion Base Dimensions | 657 × 460 × 133 mm |
| Expansion Cover Dimensions | 657 × 460 × 159 mm |
| Communication | CAN / RS485 |
| Mounting Hardware | M12 × 100 Expansion Bolts Included |
| Fastening Torque | M5: 2.5 N·m / M12: 30 N·m |
| Compatibility | Dyness STACK100 PRO Series Only |
Included Components

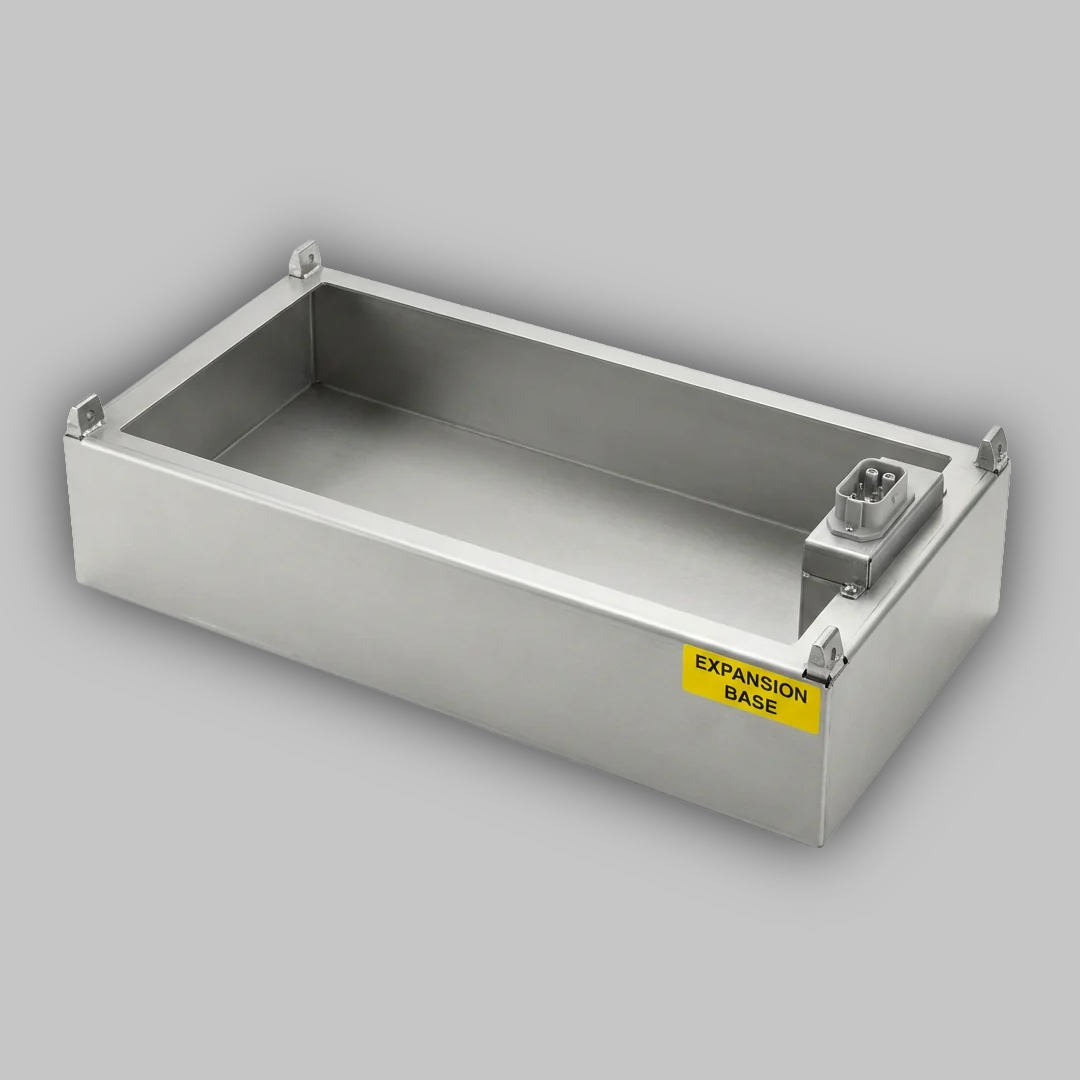

• Expansion Base (for second column)

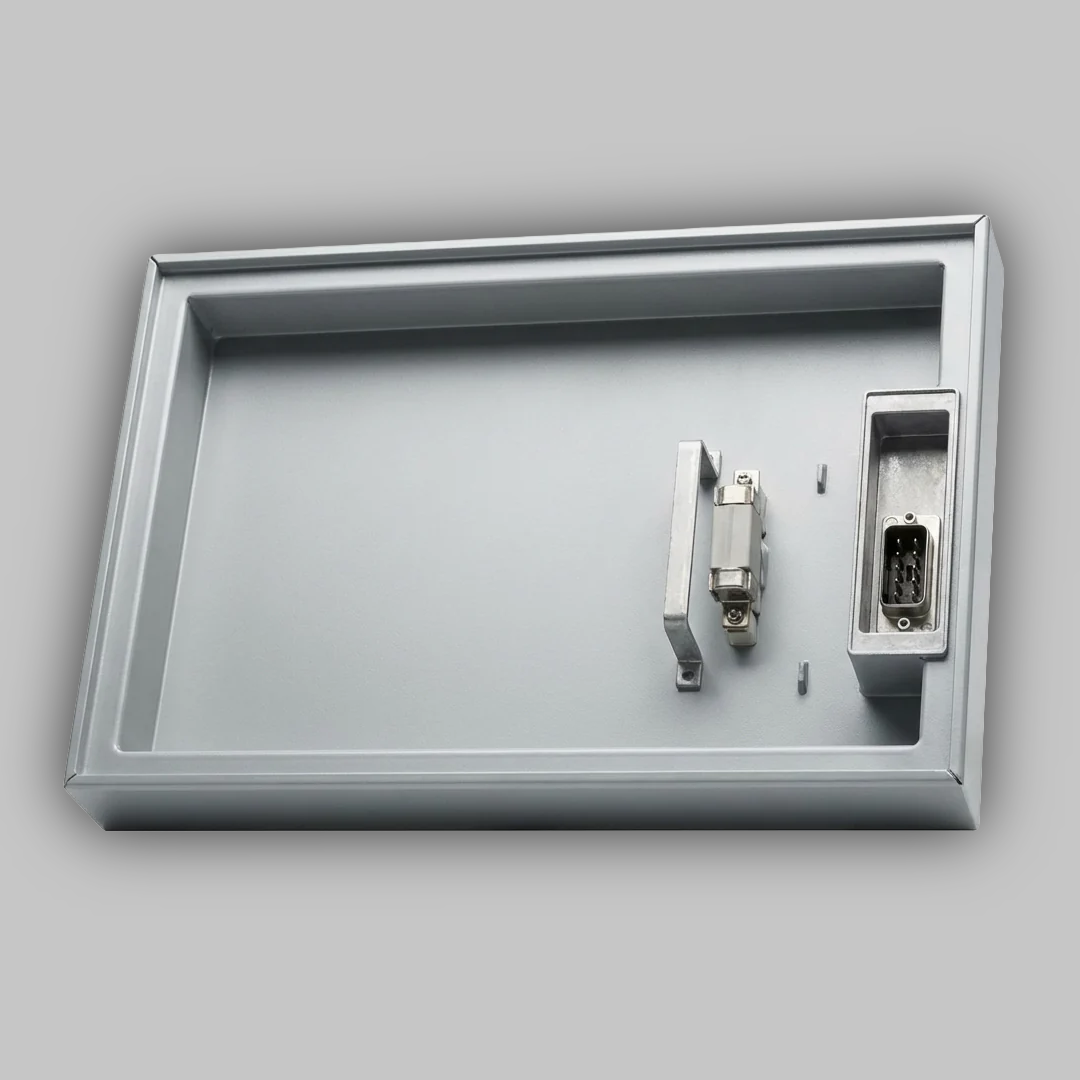

• Expansion Cover (top sealing unit)
• Positive and negative series power cables
• Parallel communication cables
• M12 × 100 expansion bolts
• Mounting screws (M5 × 30)
Installation Notes
• Required when installing more than 12 STACK100 PRO battery modules
• Second column must be securely anchored to a level surface using supplied expansion bolts
• Electrical and communication links must be routed through IP66-rated conduits
• Ensures proper load distribution and system stability in high-capacity installations
Applications
• Commercial energy storage systems
• Industrial backup power solutions
• Large-scale residential solar installations
• Professional energy storage architectures
Quality & Support
The Dyness STACK100 PRO Package C is a precision-engineered expansion solution designed to maintain structural integrity, safety, and performance in high-capacity battery systems, making it essential for professional multi-column installations.
