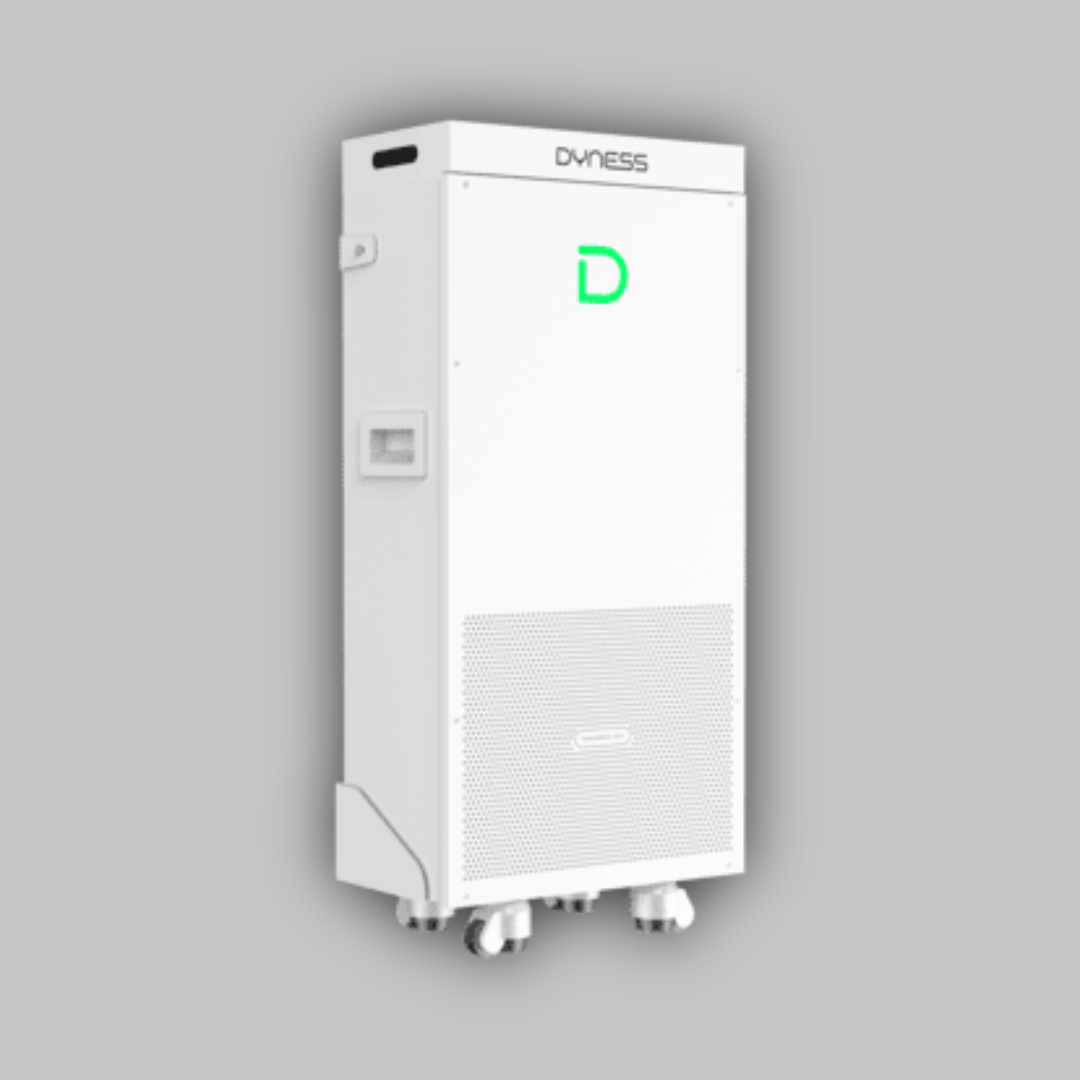

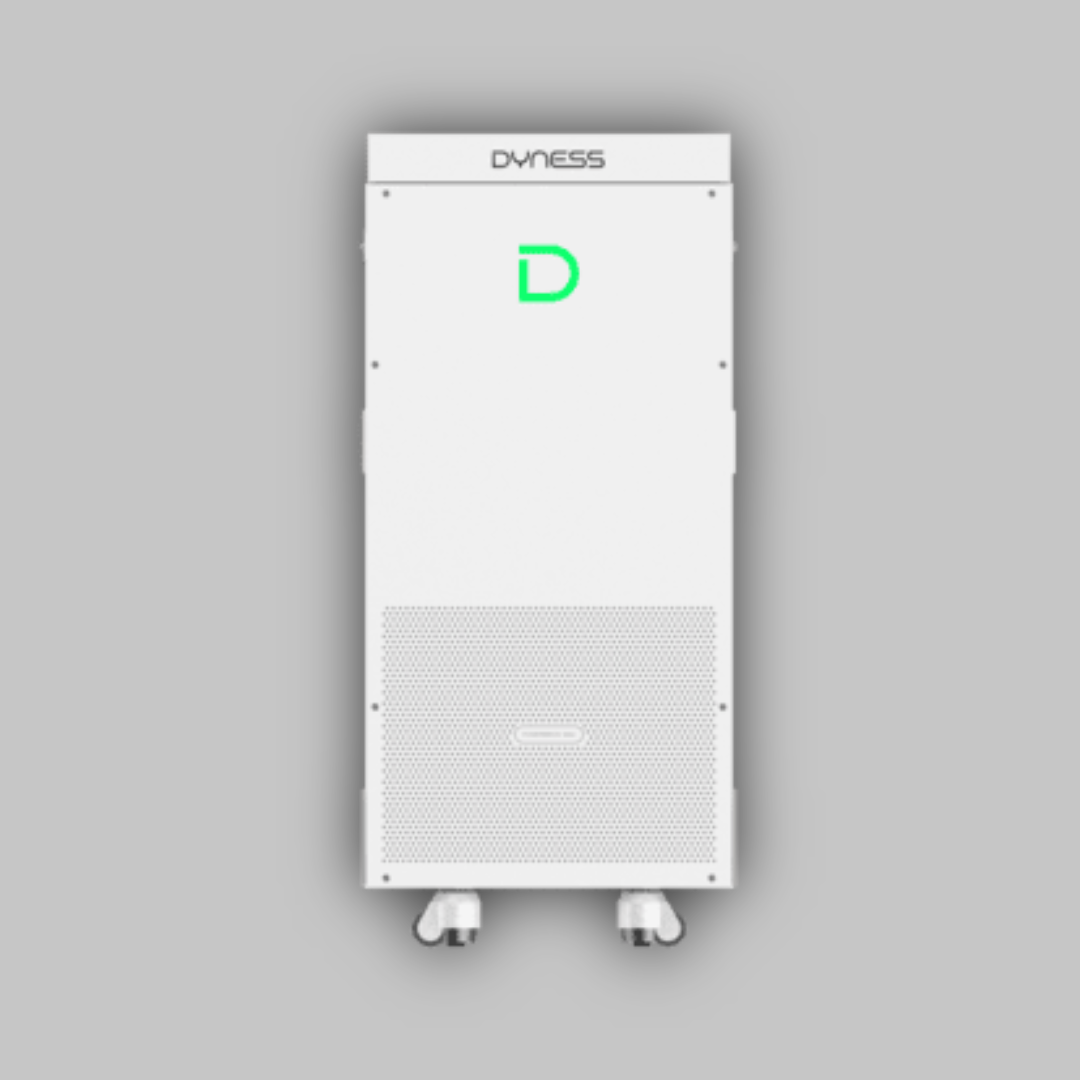

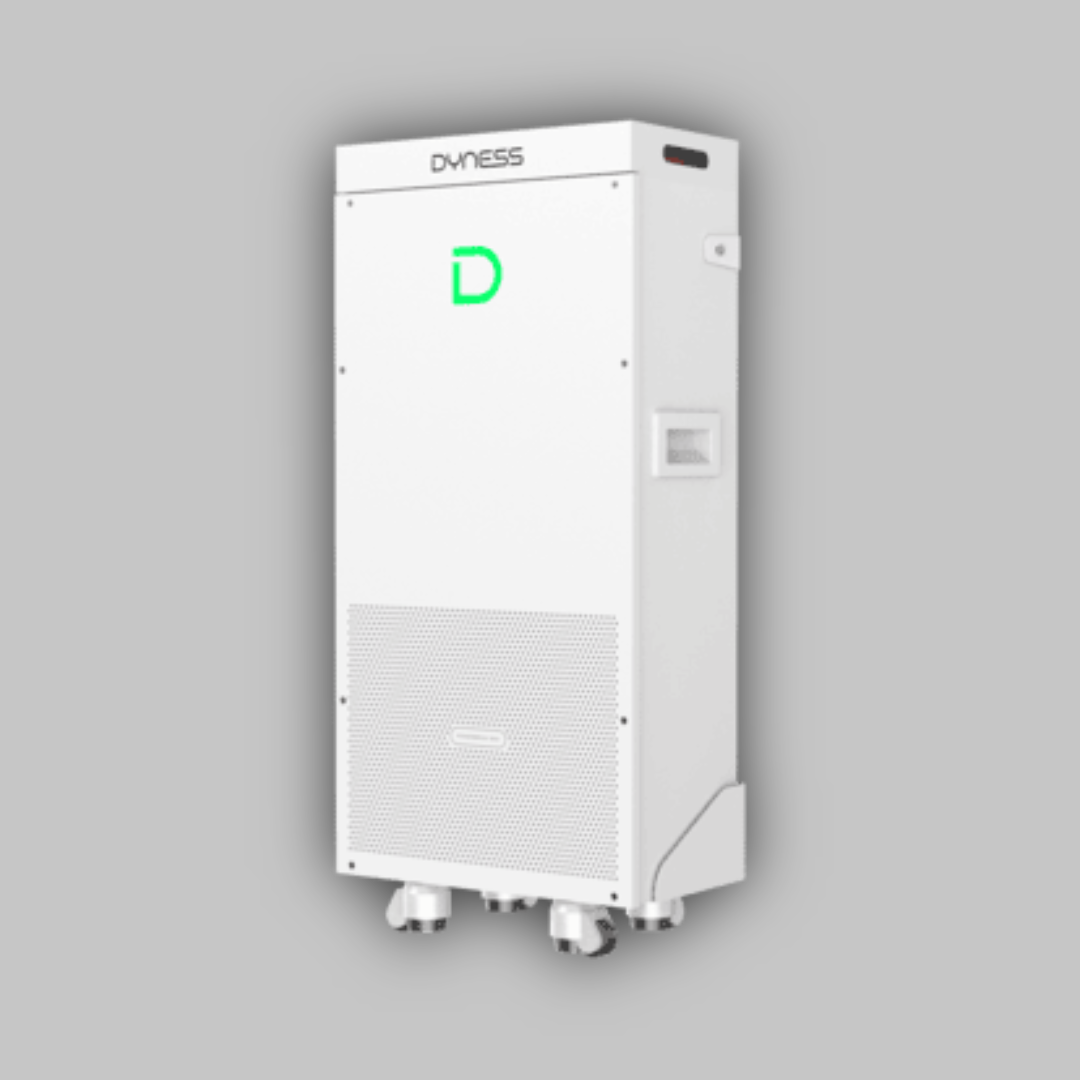

Dyness PowerBrick Max 16kWh
Couldn't load pickup availability
🔋 Dyness PowerBrick Max 16.07 kWh Residential LiFePO₄ Battery
Brand: Dyness
Model: PowerBrick Max
Type: Low-Voltage LiFePO₄ (Lithium Iron Phosphate) Battery Module
Application: Residential solar energy storage, backup power, hybrid systems
⚡ Key Features
• 16.07 kWh nominal energy capacity — substantial storage for daily solar use and backup scenarios.
• High-capacity 314 Ah LFP cells — safe, stable, and long-lasting energy storage.
• Support for up to 50 units in parallel — flexible expansion from 16.07 kWh up to ~803.8 kWh to meet large household demands.
• Fast charge/discharge capability — high output suitable for household loads and multiple appliances.
• Intelligent fire protection system — detects high cell temperature and suppresses fire within seconds for enhanced safety.
• Easy installation & mobility — compact form factor with optional wheels for easier positioning.
• Smart management features — system monitoring, remote control, and firmware updates (OTA).
• Reliable long cycle life — designed for extended daily cycling with robust performance.
• Indoor rated (IP20) — suitable for battery room, utility closet, or garage installation.
📐 Specifications
| Specification | Value |
|---|---|
| Model | PowerBrick Max |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Energy | 16.07 kWh |
| Nominal Voltage | 51.2 V DC |
| Rated Capacity | 314 Ah |
| Cycle Life | ≥ 8 000 cycles (10-year design life) |
| Continuous Charge/Discharge Current | Up to 200 A |
| Parallel Expandability | Up to 50 modules |
| Expandable Capacity Range | 16.07 kWh → ~803.84 kWh |
| Protection Rating | IP20 (indoor installation) |
| Operating Temperature (Charge) | 0 °C to 55 °C |
| Operating Temperature (Discharge) | −20 °C to 55 °C |
| Dimensions (W × D × H) | 435 × 233 × 857 mm |
| Weight | 116 kg |
| Communication Interface | CAN / RS485 (inverter monitoring & BMS) |
| Fire Protection System | Intelligent rapid aerosol fire suppression |
| Warranty | 10 years design life |
SPEC SHEET
🏡 Benefits
• Large capacity for everyday use — covers household loads through evening and night.
• Highly expandable system — scales up to utility-like energy bank sizes.
• Enhanced safety features — fire suppression, robust LFP chemistry with stable thermal behavior.
• Smart monitoring & control — OTA updates and remote status reporting.
• User-friendly installation — easier mobility and integration with modern hybrid inverters.
🏷️ Ideal For
• Solar + battery residential installations
• Load-shedding backup and peak shaving
• Large homes with high daily energy use
• Hybrid solar + generator systems
• Scalable energy storage projects needing modular expansion
