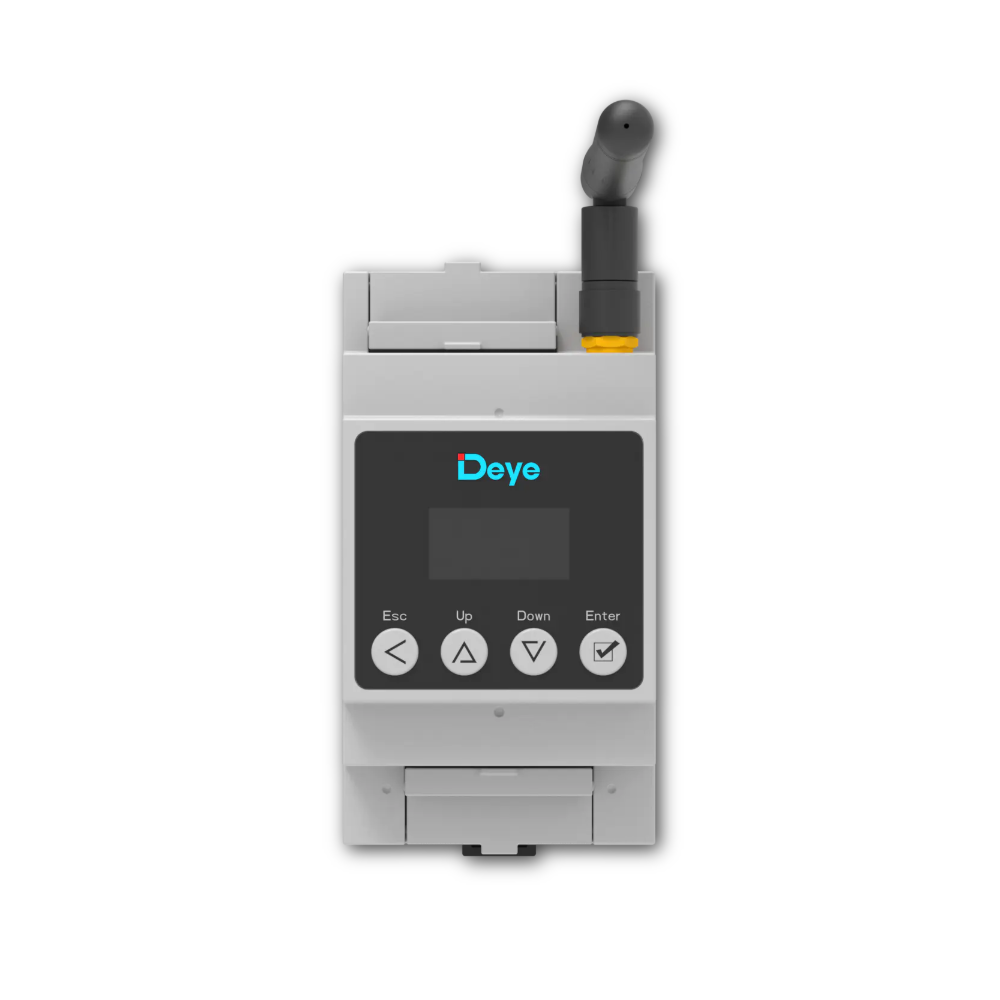

Deye SUN-SMART-CT01 Smart Energy Meter - Single & Three Phase
Regular price
R 1,389.00 ZAR
Regular price
R 1,489.00 ZAR
Sale price
R 1,389.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Deye SUN-SMART-CT01 Smart Energy Meter - Single & Three Phase
🆔 Models
Meter: Deye SUN-SMART-CT01 Smart Energy Meter
Includes
- Deye Smart Energy Meter Unit
- CT (Current Transformer) Input Support
- DIN Rail Mounting Design
Key Features
- Supports both single-phase and three-phase systems
- High-precision energy monitoring and measurement
- Real-time display of electrical parameters via LCD
- LoRa and RS485 communication for system integration
- Low power consumption (≤2W)
- Long-range wireless communication (up to ±200m line-of-sight)
- Compact DIN rail design for easy installation
- Ideal for solar monitoring and energy management systems
Specifications
| Specification | Details |
|---|---|
| Model | SUN-SMART-CT01 |
| Connection Type | L1/N (Single Phase), L1/L2/L3/N (Three Phase) |
| CT Input | Secondary Current: 50mA |
| Operating Voltage | 85 – 300V AC (L-N) |
| Frequency Range | 50Hz (45–55Hz) / 60Hz (55–65Hz) |
| Self Consumption | ≤2W |
| AC Withstand Voltage | 4kV / 1 min |
Accuracy
| Parameter | Accuracy |
|---|---|
| Voltage | ±0.1V |
| Current | ±0.01A |
| Frequency | ±0.01Hz |
| Power | ±1W |
Communication & Display
| Specification | Details |
|---|---|
| Communication | LoRa / RS485 |
| LoRa Range | ±200m (line-of-sight) |
| Display | LCD |
| Display Data | Voltage, Current, Active Power, Reactive Power, Frequency, Power Factor, Energy |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions | 53 × 96 × 64 mm |
| Weight | 0.15 kg |
| Mounting | DIN Rail |
Technical & Build
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Humidity | 0 – 75% |
| IP Rating | IP20 |
| Max Altitude | ≤4000 m |
| Certification | IEC / EN 61010-1 |
Additional Information
- Suitable for solar PV monitoring and energy management systems
- Integrates with inverters and monitoring platforms via RS485 or LoRa
- Installation by qualified technician recommended
DATASHEET
