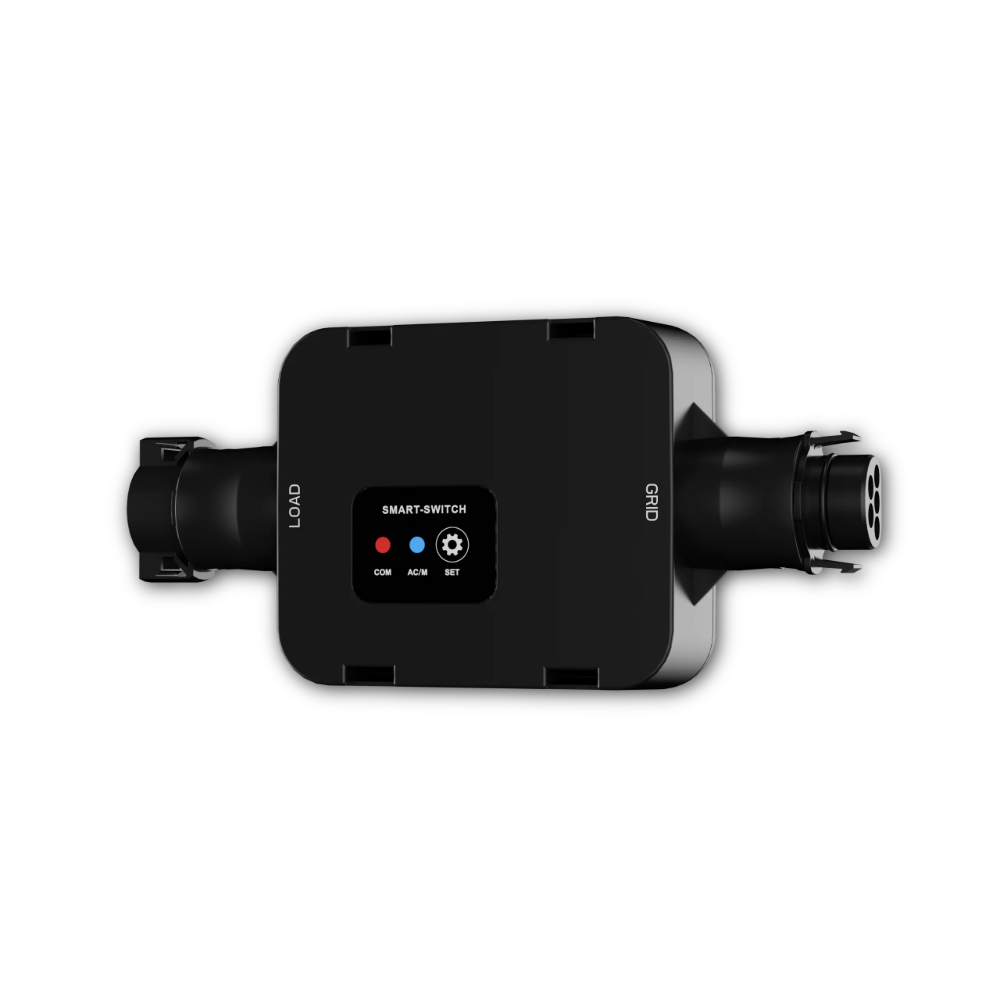

Deye SUN-SMART-SWITCH01P3 Smart Switch - Single & Three Phase
🆔 Models
Device: Deye SUN-SMART-SWITCH01P3 Smart Switch
Includes
- Deye Smart Switch Unit
- Plug-in connector terminals
- Integrated LoRa communication module
Key Features
- Supports both single-phase and three-phase systems
- 25A per phase switching capability
- Remote control and monitoring via LoRa communication
- Long-range wireless communication (up to ±200m line-of-sight)
- Weather-resistant design (IP65 rated) for indoor and outdoor use
- Compact, wall-mountable design
- Ideal for smart energy management and load control systems
Specifications
| Specification | Details |
|---|---|
| Model | SUN-SMART-SWITCH01P3 |
| Voltage Range | 94 – 238V AC (phase voltage) |
| Connection Type | L1/N (Single Phase), L1/L2/L3/N (Three Phase) |
| Maximum Current | 25A AC (per phase) |
| Frequency Range | 50Hz (45–55Hz) / 60Hz (55–65Hz) |
| Connection | Plug-in connector type |
Communication
| Specification | Details |
|---|---|
| Communication Type | LoRa |
| Communication Range | ±200m (line-of-sight) |
| Frequency Range | 863 – 870 MHz |
| Antenna | Internal |
| Antenna Gain | 1.58 dBi @ 868 MHz |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W×H×D) | 96.7 × 204.7 × 37.7 mm |
| Weight | 0.4 kg |
Technical & Build
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to +45°C |
| Humidity | 0 – 100% RH |
| IP Rating | IP65 |
| Protection Class | Class I |
| Max Altitude | ≤4000 m |
| Standard | IEC / EN 61010-1 |
Additional Information
- Suitable for smart load control in solar and energy management systems
- Enables remote switching of connected circuits
- Designed for residential, commercial, and industrial applications
- Installation by qualified electrician recommended
Quality & Support
The Deye SUN-SMART-SWITCH01P3 provides reliable smart switching with robust environmental protection and long-range communication, making it ideal for efficient energy control in modern electrical and solar systems.
