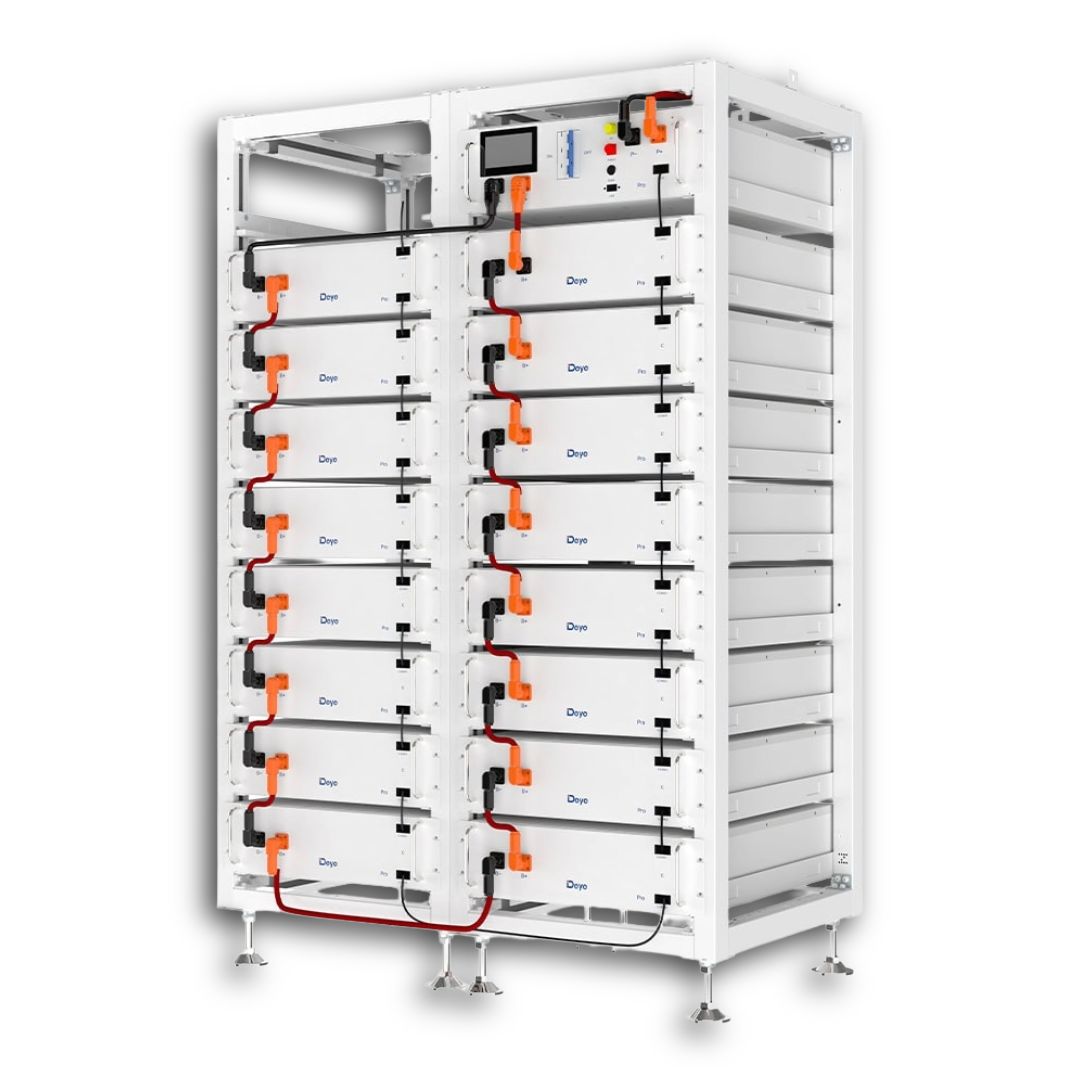

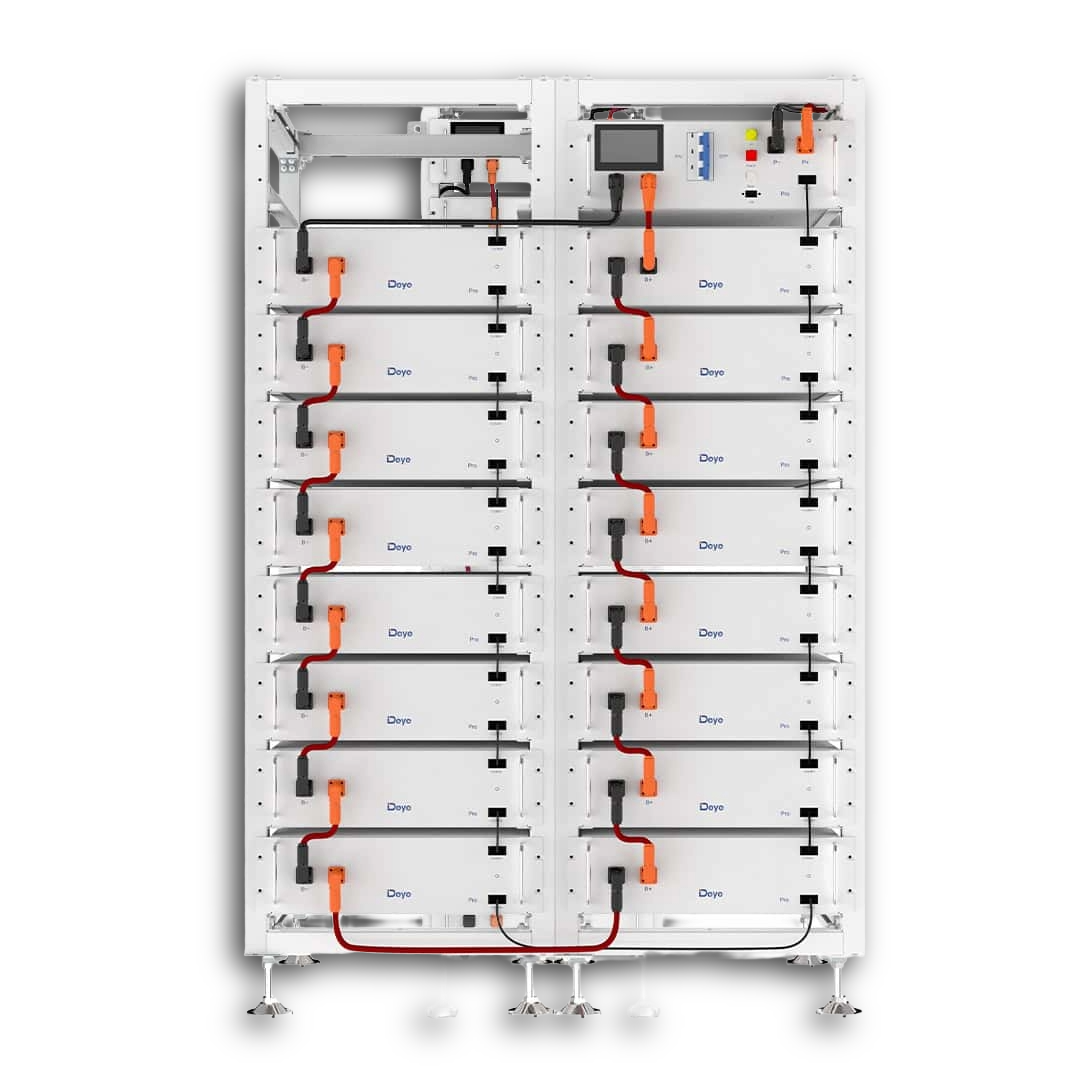

Deye BOS-G Pro 61.44kWh Battery Set HV
Couldn't load pickup availability
🔋 Deye BOS-G Pro 61.44kWh Battery Set HV
Model: BOS-G60 Pro
Brand: Deye
Type: High-Voltage LiFePO₄ Rack-Mounted Battery Energy Storage System
INCLUDES
- 1 × Deye BOS-G-PDU-2 High-Voltage Battery Control Unit
- 12 × Deye BOS-G-Pack5.1 5.12kWh Battery Modules
- Battery communication cables
- Battery power interconnection cables
- PCS connection cables
- Grounding cables
- Rack mounting hardware and accessories
⚡ Key Features
- Large-scale 61.44kWh high-voltage energy storage system designed for commercial, industrial, and large residential applications.
- Built using 12 high-performance 5.12kWh LiFePO₄ battery modules.
- Delivers 55.30kWh of usable energy at 90% depth of discharge.
- High-voltage architecture improves system efficiency while reducing cable losses.
- Flexible expansion supports up to 16 battery clusters in parallel.
- Advanced intelligent BMS provides real-time monitoring, cell balancing, and comprehensive battery protection.
- Long-life LiFePO₄ battery technology delivering over 6,000 operating cycles.
- Wide operating temperature range for reliable year-round performance.
- Standard 19-inch rack-mounted design simplifies installation and servicing.
- Fully compatible with Deye high-voltage hybrid and commercial inverters.
- CAN and RS485 communication ensure seamless inverter integration.
- Supports remote firmware upgrades when paired with compatible Deye inverters.
- Low-maintenance, environmentally friendly battery solution.
- Backed by a 10-year manufacturer warranty.
📐 Specifications
| Specification | Value |
|---|---|
| Battery Chemistry | LiFePO₄ (LFP) |
| Battery Module Energy | 5.12 kWh |
| Battery Module Voltage | 51.2 V |
| Battery Module Capacity | 100 Ah |
| Number of Modules | 12 |
| System Nominal Voltage | 614.4 V |
| Operating Voltage Range | 528 – 700.8 V |
| Total Energy | 61.44 kWh |
| Usable Energy | 55.30 kWh |
| Rated DC Power | 61.44 kW |
| Recommended Charge/Discharge Current | 100 A |
| Nominal Charge/Discharge Current | 100 A |
| Peak Discharge Current | 125 A |
| Recommended Depth of Discharge | 90% |
| Cycle Life | ≥ 6,000 Cycles |
| Communication | CAN 2.0 / RS485 |
| Protection Rating | IP20 |
| Installation | Rack Mounted |
| Operating Temperature | Charge: 0°C to 55°C |
| Discharge Temperature | -20°C to 55°C |
| Storage Temperature | 0°C to 35°C |
| Operating Humidity | 5% – 85% RH |
| Maximum Altitude | ≤ 3000 m |
| Warranty | 10 Years |
📏 Physical Specifications
| Specification | Details |
| Rack Dimensions (W × D × H) | 1060 × 602 × 1629 mm |
| System Weight | Approximately 699 kg |
| Battery Module Dimensions | 440 × 585 × 133 mm |
| Battery Module Weight | 46 kg |
| PDU Dimensions | 440 × 570 × 150 mm |
| PDU Weight | 19 kg |
🔧 Technical & Build
| Specification | Details |
| System Type | High-Voltage Battery Energy Storage System |
| Configuration | 12 Battery Modules + PDU |
| Cooling Method | Natural Cooling |
| Battery Management | Intelligent BMS |
| Installation | Indoor Rack Mount |
| Communication Protocols | CAN / RS485 |
| Scalability | Up to 16 Battery Clusters |
| Inverter Compatibility | Deye High-Voltage Inverters and Compatible PCS Systems |
| Application | Commercial, industrial, and large-scale backup systems |
ℹ️ Additional Information
Ideal for commercial buildings, manufacturing facilities, agricultural operations, office parks, schools, and large residential properties requiring dependable high-voltage energy storage.
The 614.4V high-voltage architecture minimizes current losses, improves overall system efficiency, and simplifies large-scale installations. Multiple battery racks can be connected in parallel to create multi-megawatt-hour energy storage systems for peak shaving, load shifting, backup power, and renewable energy integration.
Supports remote monitoring, diagnostics, and firmware updates when integrated with compatible Deye equipment. Professional installation and commissioning are recommended for optimal performance and warranty compliance.
🏷️ Quality & Support
The Deye BOS-G Pro 61.44kWh Battery Set HV delivers dependable commercial-grade energy storage using advanced LiFePO₄ battery technology and intelligent battery management. With 61.44kWh of installed capacity, high-voltage efficiency, and support for extensive system expansion, it provides an ideal solution for commercial, industrial, and large residential energy storage projects. Backed by a 10-year manufacturer warranty and over 6,000 operating cycles, the BOS-G Pro offers reliable long-term performance for hybrid, backup, and off-grid energy systems.
