Deye 10.24 kWh Lithium Battery Pack (2 × AI-W5.1-B)
Model: AI-W5.1-B (×2)
Brand: Deye
Type: Low-Voltage Lithium Iron Phosphate (LFP) Battery System
Includes
- 2 x 5.1kWh Battery
- 1 x Control Box
- 1 x Base
Key Features
-
10.24 kWh total usable capacity – created by pairing two 5.12 kWh AI-W5.1-B modules.
-
Safe LFP chemistry – excellent thermal stability and long service life.
-
Modular & scalable – supports multi-module expansion for larger residential or commercial systems.
-
Smart BMS integration – advanced cell protection, balancing, and inverter communication.
-

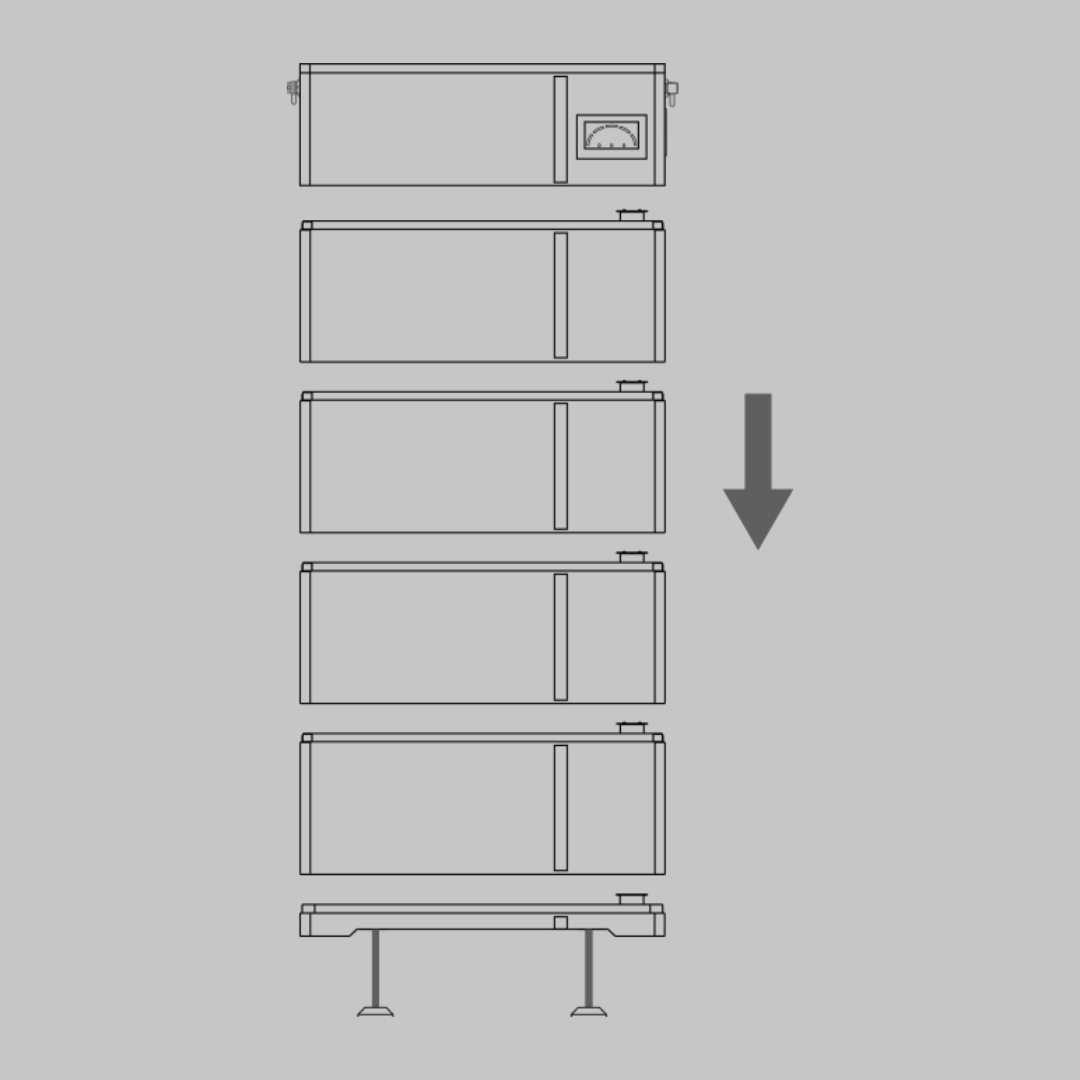

Flexible installation – wall-mount or stack configuration.
-
Perfect pairing – fully compatible with Deye LV hybrid inverters.
Specifications
| Specification | Value |
|---|---|
| Total Usable Capacity | 10.24 kWh |
| Module Capacity | 5.12 kWh × 2 |
| Nominal Voltage | 51.2V |
| Battery Type | LFP (LiFePO₄) |
| Communication | CAN / RS485 |
| Cycle Life | 6000+ cycles @ 80% DoD |
| Scalability | Supports multi-module expansion |
| Installation | Wall-mount / Stackable |
| Warranty | 10 years (typical) |
Quality & Support
The Deye 10.24 kWh configuration provides reliable, long-lasting storage ideal for hybrid solar systems. With strong OEM backing, safe LFP chemistry, and robust BMS protection, it offers dependable performance with full after-sales support.
