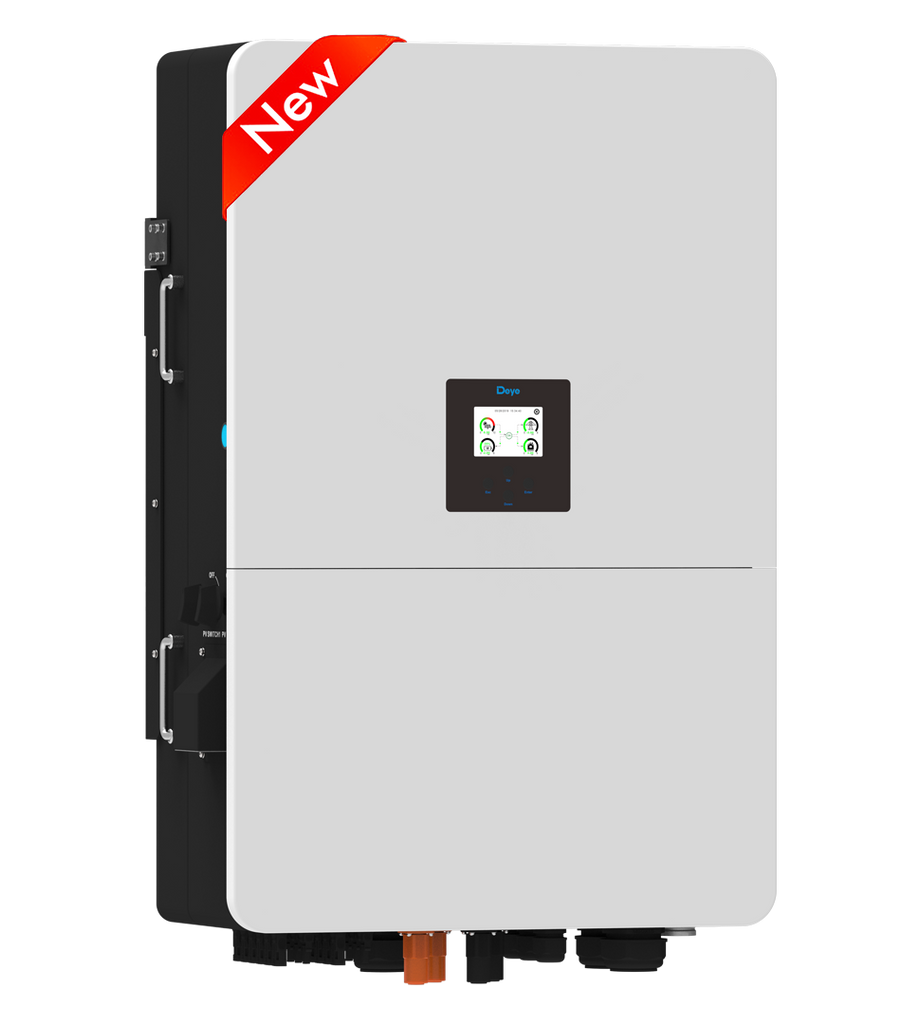

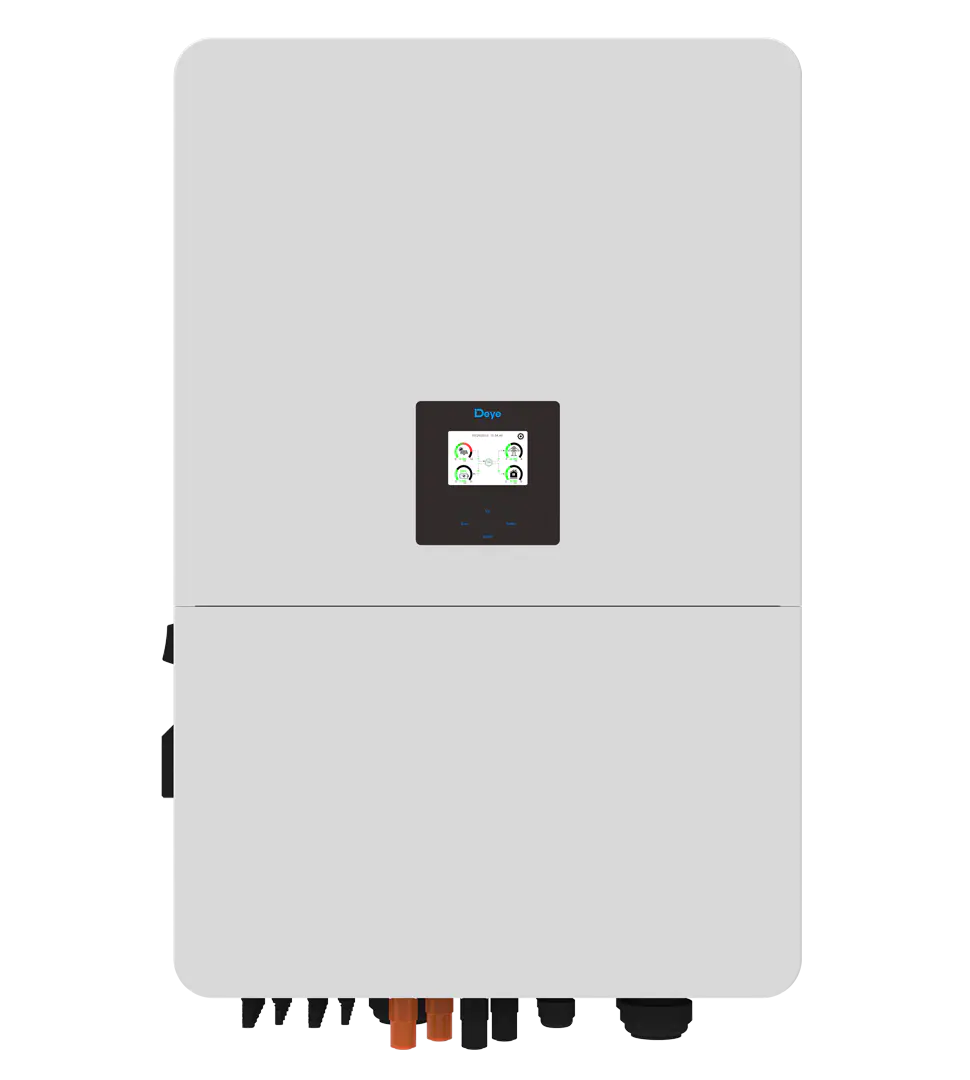

Colorful touch LCD, IP65 protection degree
AC‑couple and DC‑couple retrofit capability for existing solar systems
Supports up to 10 pcs in parallel for on‑grid and off‑grid operation; supports multiple batteries in parallel
Max. charging/discharging current of 80A per battery input
6 time periods for battery charging/discharging
Supports storing energy from diesel generators
Unbalanced three‑phase output: each phase can supply up to 50% of rated power
Battery Input Data:
Battery Type: Lithium‑ion
Battery Voltage Range: 160–1000V
Max. Charging/Discharging Current: 80A per battery input
UPS Power: 80,000W
PV String Input Data:
Max. PV Input Power: 128,000W
Max. PV Input Voltage: 1000V
Start‑up Voltage: 180V
MPPT Voltage Range: 150–850V
Rated DC Input Voltage: 650V
Number of MPPTs / Strings per MPPT: 6 / 2
Max. PV Input Current: 36A per MPPT
Max. Short‑Circuit Current: 54A per MPPT
AC Input/Output Data:
Rated AC Output Power: 80,000W
Max. AC Apparent Power: 88,000VA
Rated AC Output Current: ~121.3A
Max. AC Output Current: ~115.9A
Max. Continuous AC Passthrough: 200A
Peak Off‑Grid Power: 1.5× rated power for 10 seconds
Output Voltage/Frequency: 220/380V or 230/400V, 50/60Hz, 3‑phase
