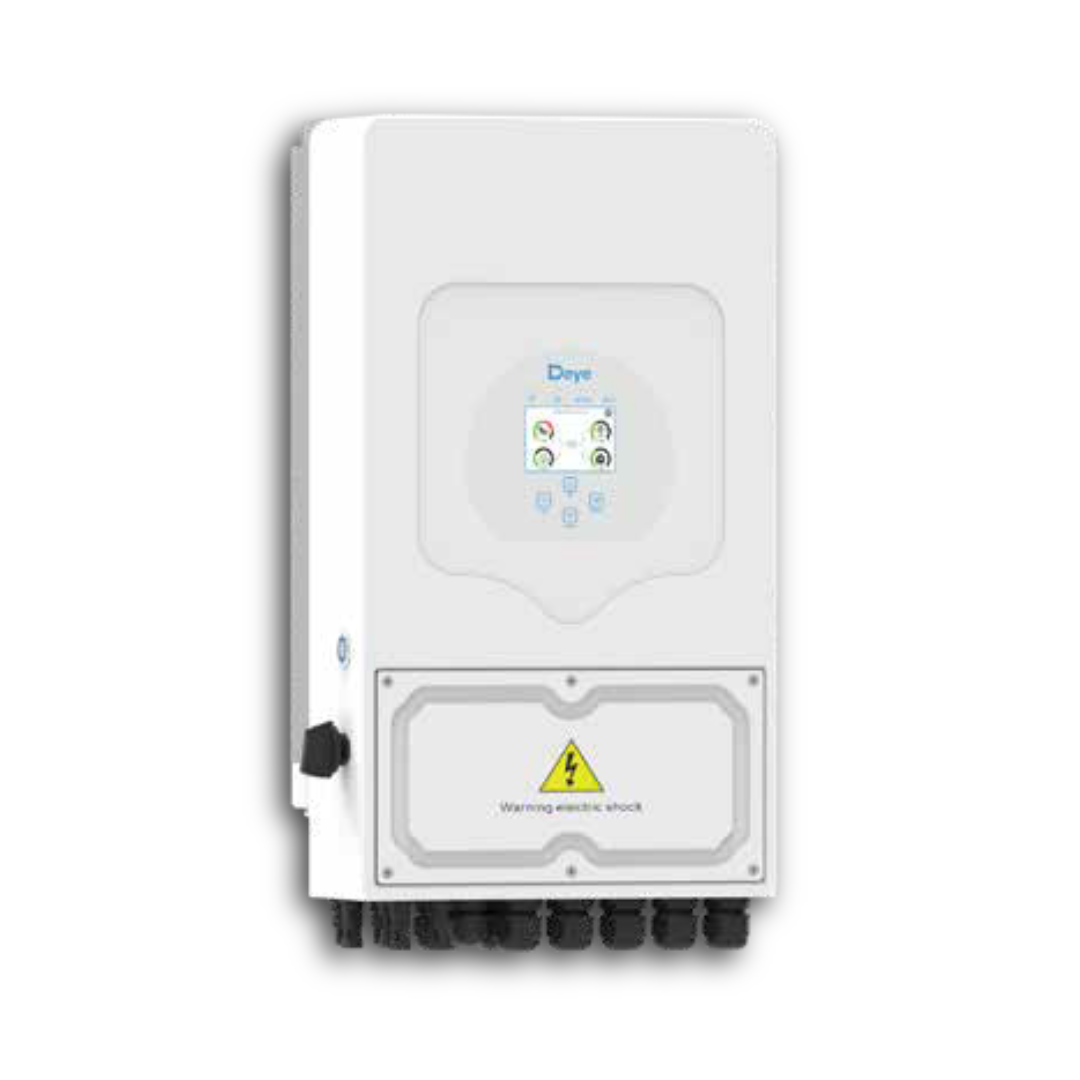

Deye 5kW Single-Phase Hybrid Inverter SUN-5K-SG01LP1-EU
Couldn't load pickup availability
⚡ Deye 5kW Single-Phase Hybrid Inverter Demo Model
Brand: Deye
Model: SUN-5K-SG05LP1-EU
Type: Single-Phase Low-Voltage Hybrid Inverter
Rated AC Output: 5kW
Maximum AC Output: 5.5kW
Battery Voltage: 40–60V
Protection Rating: IP65
Condition: Demo Model
⚡ Key Features
• 5kW continuous output — suitable for residential solar, battery and backup power systems
• 5.5kW maximum AC output — provides additional capacity for higher-demand loads
• 120A battery charging and discharging — supports efficient battery energy management
• Solar, battery and grid integration — combines multiple energy sources in a single hybrid system
• Diesel generator compatible — supports storing energy generated by a diesel generator
• AC coupling capability — ideal for retrofitting existing solar PV systems with battery storage
• Up to 16 units in parallel — enables scalable on-grid and off-grid system configurations
• Multiple batteries in parallel — supports expanded battery storage capacity
• Six programmable time periods — allows scheduled battery charging and discharging
• Colour touch LCD display — provides convenient local monitoring and system control
• IP65 protection — suitable for demanding installation environments
• Intelligent air cooling — provides effective thermal management
• Wi-Fi communication — enables convenient system monitoring and connectivity
• Advanced protection system — includes surge, over-current, thermal, short-circuit, reverse-polarity and anti-islanding protection
📐 Technical Specifications
🔋 Battery Input
| Specification | Value |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60V |
| Maximum Charging Current | 120A |
| Maximum Discharging Current | 120A |
| Charging Strategy for Li-Ion | Self-adaption to BMS |
| Number of Battery Inputs | 1 |
☀️ PV Input
| Specification | Value |
|---|---|
| Maximum PV Access Power | 10,000W |
| Maximum PV Input Voltage | 500V |
| Rated PV Input Voltage | 370V |
| Start-Up Voltage | 125V |
| MPPT Voltage Range | 150–425V |
| Number of MPPT Trackers | 2 |
| Strings per MPPT | 1 + 1 |
| Maximum Operating PV Current | 13A + 13A |
| Maximum Input Short-Circuit Current | 17A + 17A |
⚡ AC Input / Output
| Specification | Value |
|---|---|
| Rated AC Input/Output Active Power | 5,000W |
| Maximum AC Input/Output Apparent Power | 5,500VA |
| Rated AC Input/Output Current | 25A / 23.9A |
| Maximum AC Input/Output Current | 22.7A / 21.7A |
| Maximum Continuous AC Passthrough | 40A |
| Peak Off-Grid Power | 2 × rated power for 10 seconds |
| Power Factor | 1 |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Voltage | 220/230V |
| Voltage Range | 0.85Un–1.1Un |
| Grid Frequency | 50/60Hz |
| Grid Frequency Range | 45–55Hz / 55–65Hz |
| Grid Connection | L + N + PE |
| Phase | Single Phase |
📊 Efficiency
| Specification | Value |
|---|---|
| Maximum Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | >99% |
| THDi | <3% of nominal power |
| DC Injection Current | <0.5% In |
🛡️ Protection & Safety
The Deye SUN-5K-SG05LP1-EU incorporates multiple protection functions:
• DC reverse polarity protection
• AC output over-current protection
• Thermal protection
• AC output over-voltage protection
• AC output short-circuit protection
• DC component monitoring
• Anti-islanding protection
• DC switch
• Insulation impedance detection
• Residual current detection
• Surge protection
• Optional Arc Fault Circuit Interrupter (AFCI)
Surge Protection: Type II DC / Type II AC
Over-Voltage Category: OVC II DC / OVC III AC
Topology: Non-isolated
📡 Communication & Monitoring
| Specification | Value |
|---|---|
| Display | LCD |
| Communication Interfaces | Wi-Fi / RS485 / CAN |
| BMS Communication | Supported |
| Local Control | Colour touch LCD |
| Remote Connectivity | Wi-Fi |
🛠️ General Specifications
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +60°C |
| Derating | Above 45°C |
| Ambient Humidity | 0–100% |
| Maximum Altitude | 2000m |
| Noise | <50dB |
| Cooling | Intelligent Air Cooling |
| Protection Degree | IP65 |
| Installation | Wall-mounted |
| Inverter Topology | Non-isolated |
| Dimensions | 330 × 580 × 232mm |
| Weight | 24.9kg |
| Warranty | 5 Years Standard |
| Extended Warranty | Available |
Dimensions exclude connectors and brackets.
🏡 Ideal For
• Residential solar + battery systems
• Home backup power installations
• Off-grid and hybrid solar systems
• Existing solar system upgrades using AC coupling
• Diesel generator-assisted energy storage
• Battery backup systems
• Scalable solar installations
• Installations requiring multiple inverters in parallel
• Small residential and energy-storage applications
🏷️ Quality & Support
The Deye 5kW Single-Phase Hybrid Inverter Demo Model provides a flexible platform for solar generation, battery storage, grid interaction and backup power. With 5kW rated output, 10kW maximum PV input, 120A battery charging/discharging, dual MPPTs, AC coupling and support for up to 16 units in parallel, it is well suited to scalable residential energy systems.
Condition: Demo Model — supplied as a demonstration unit rather than standard new-stock equipment.
