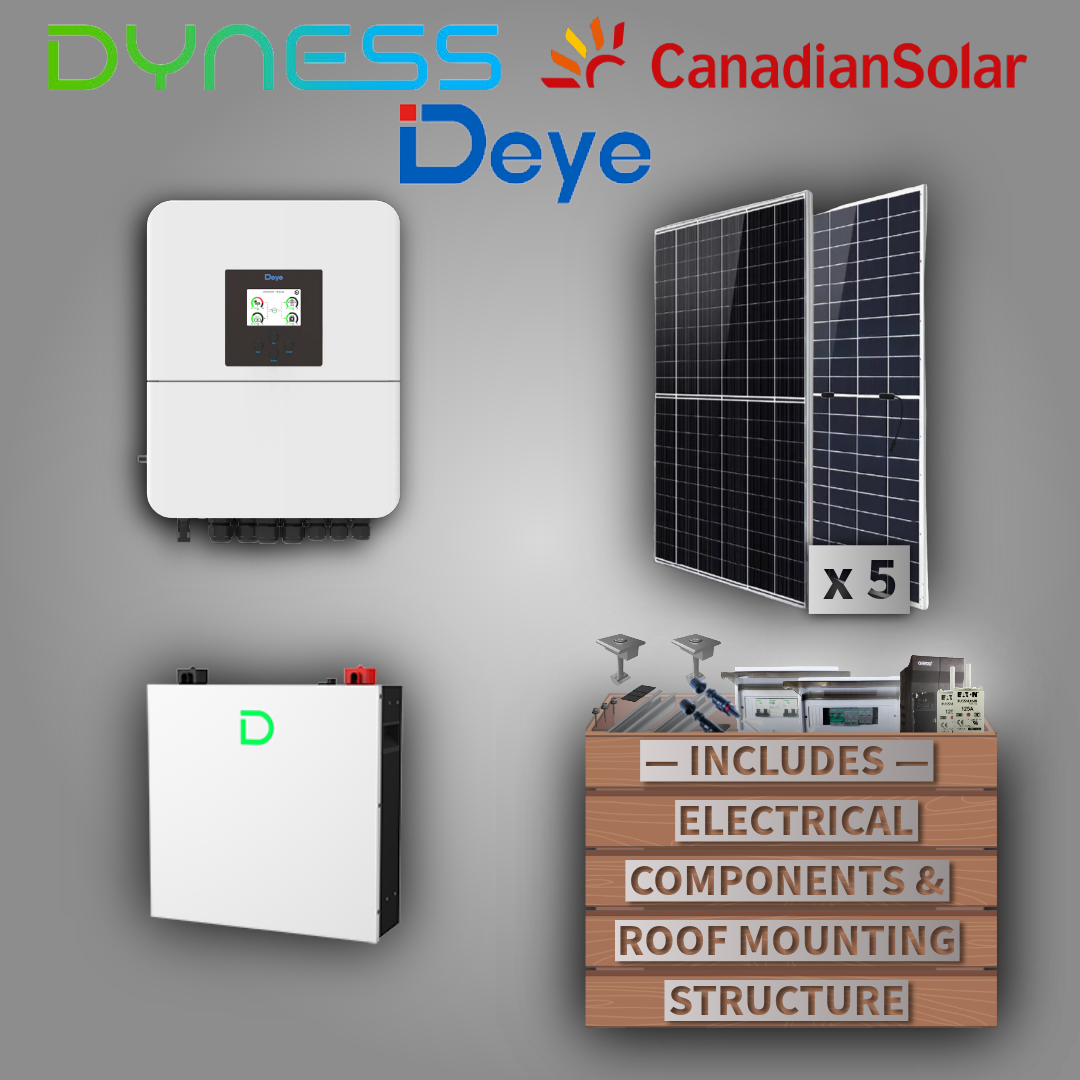

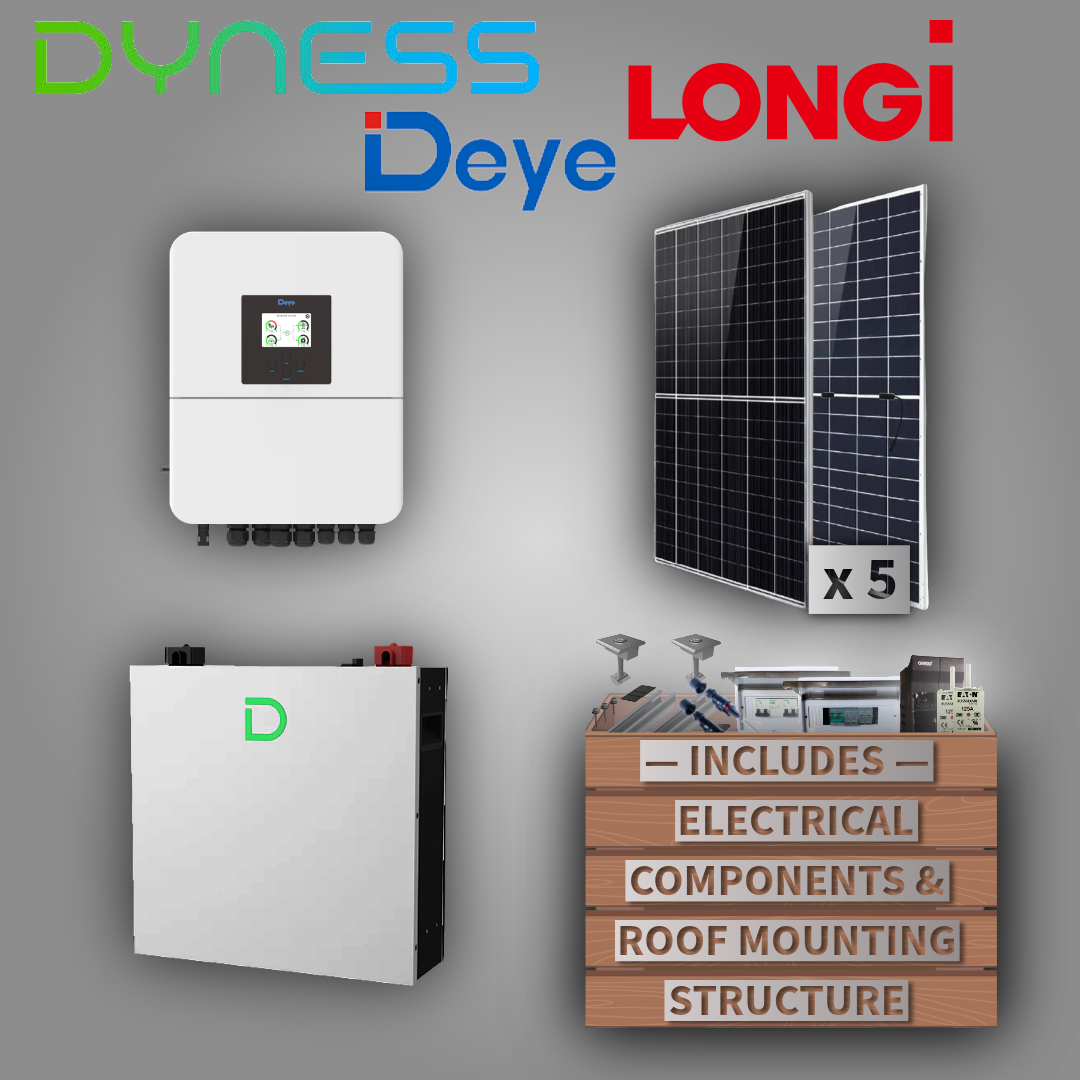

Deye 5kW 1P Inverter + Dyness DL5.0C Pro 5.12 kWh + 5 Solar Panels
Couldn't load pickup availability
🔌 Deye 5kW 1P Hybrid Inverter Kit + Dyness DL5.0C Pro 5.12 kWh Battery + 5 Solar Panels
🆔 Models
-
Inverter: Deye 5kW 1P Low-Voltage Hybrid Inverter
-
Battery: Dyness DL5.0C Pro 5.12 kWh Lithium Iron Phosphate Battery
-
Panels: 5 × Canadian Solar Panels
🛠️ Includes
-
Complete Aluminium Mounting Structure for IBR/Corrugated Roof Types ×5
-
5kW Inverter AC DB Kit Box ×1
-
DC DB Kit Box (1 String) ×1
-
160A Battery Fuse Disconnector ×1
-
125A Battery Fuse ×2
-
MC4 Connector Set ×2
🏷️ Brand
Deye / Dyness
⚡ Type
Hybrid Inverter + Low-Voltage Lithium Battery + Solar Panel Kit
Ideal for residential hybrid setups, daily cycling, and dependable loadshedding backup.
🔋 Key Features
🔆 Deye 5kW 1P Hybrid Inverter (LV)
-
5 kW continuous output — ideal for medium-sized households
-
Dual MPPT for stable and efficient solar production
-
Fast switchover time (<10 ms) for uninterrupted backup
-
Supports Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Intelligent load management and time-of-use scheduling
-
Built-in monitoring with Wi-Fi and app support
-
Supports generator input and smart load prioritisation
-
Parallel-ready for system expansion
-
Highly reliable for daily solar utilisation and backup power
🔋 Dyness DL5.0C Pro 5.12 kWh LiFePO₄ Battery
-
5.12 kWh total capacity (~4.8 kWh usable)
-
Safe LiFePO₄ chemistry with long cycle life
-
Advanced BMS with CAN/RS485 communication
-
Stackable, modular design for easy expansion
-
High discharge capability — suitable for 5kW hybrid systems
-
6000+ cycles for long-term durability
-
Wall-mounted or rack-mounted installation options
-
Stable performance in high-frequency cycling applications
☀️ Solar Panels
-
High-efficiency panels ideal for residential solar roofs
-
Reliable, durable, and designed for long-term stable energy production
📐 Specifications
Inverter — Deye 5kW 1P (LV)
| Specification | Value |
|---|---|
| Rated Power | 5 kW |
| Phase | Single-Phase |
| Battery Voltage | 48 V (LV) |
| MPPT Trackers | 2 |
| Max PV Input | ~6.5 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ±97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness DL5.0C Pro 5.12 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 5.12 kWh |
| Usable Energy | ±4.8 kWh |
| Nominal Voltage | 51.2 V |
| Chemistry | LiFePO₄ |
| Nominal Capacity | 100 Ah |
| Cycle Life | 6000+ cycles |
| Max Charge/Discharge | 50 A |
| Depth of Discharge | 95% |
| Communication | CAN / RS485 |
| Parallel Capability | Yes |
| Mounting | Wall / Rack |
| Operating Temp | –20 °C to +55 °C |
🏷️ Quality & Support
This hybrid kit offers a dependable and efficient solar solution for residential applications.
-
Deye 5kW Inverter: Robust hybrid functionality and responsive backup performance
-
Dyness DL5.0C Pro Battery: Safe, durable, and stable energy storage
-
Canadian Solar Panels: Reliable generation for day-to-day operation
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
