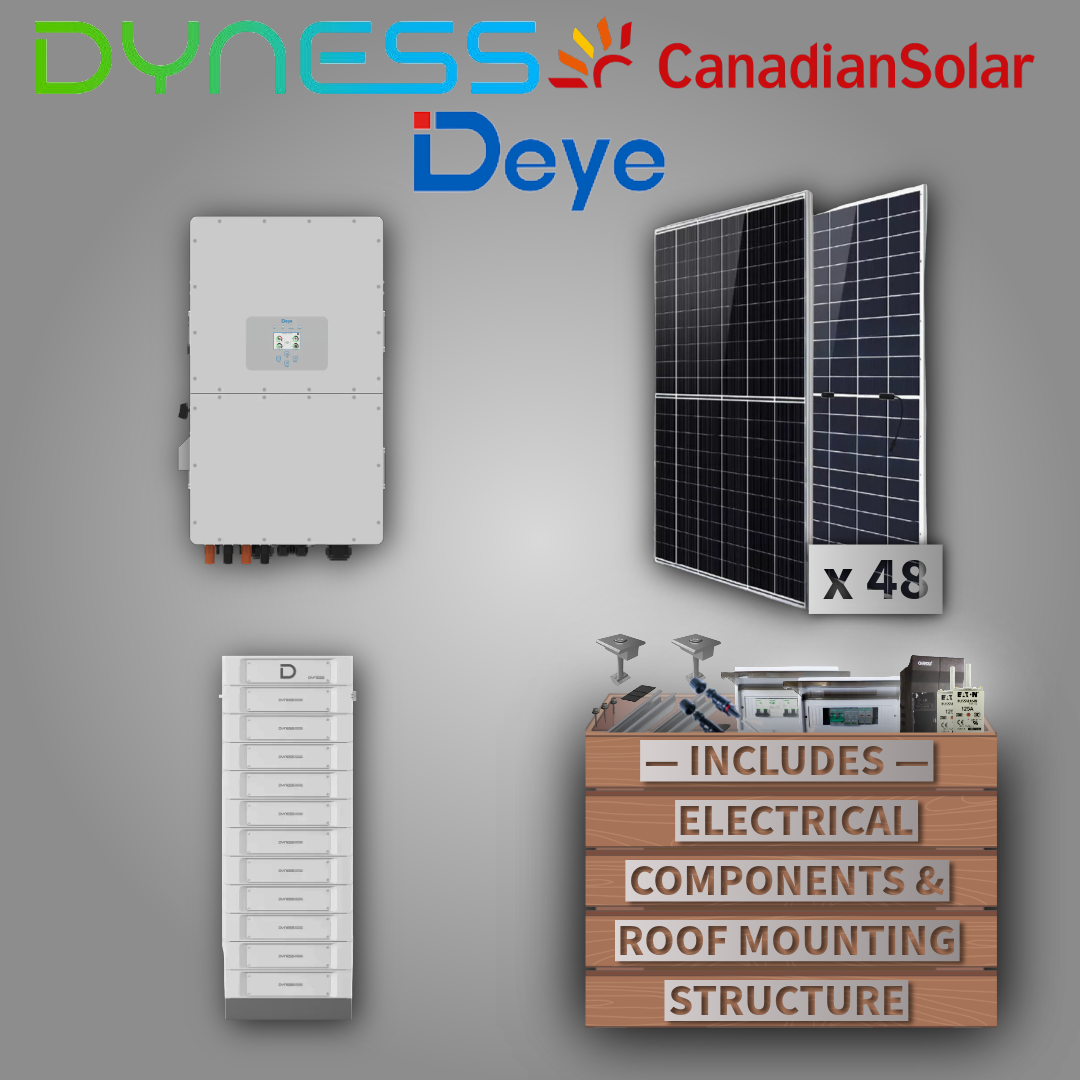

Deye 50 kW 3P Hybrid Inverter + Dyness STACK100 30.72 kWh + 48 Canadian Solar Panels
🆔 Models
-
Inverter: Deye 50 kW 3-Phase Hybrid Inverter
-
Battery: Dyness STACK100 — 6 × 5.12 kWh modules = 30.72 kWh
-
Panels: 48 × Canadian Solar Panels
🏷️ Brand
Deye + Dyness
🔌 Type
Three‑Phase Hybrid Inverter + Modular Li‑ion Battery + Solar Panel Kit
Ideal for commercial, industrial, and large-scale residential systems requiring high-capacity backup and solar generation.
⚡ Key Features
🔆 Deye 50 kW 3P Hybrid Inverter
-
50 kW three-phase output — supports heavy commercial and industrial loads
-
High-voltage battery support: 160 – 700 V
-
Max charging / discharging current: 75 A
-
Multiple MPPT trackers for flexible PV string design
-
Wide DC input PV voltage range, up to ~1000 V
-
Parallel-capable for future system scalability
-
IP65-rated enclosure for outdoor or semi-outdoor installation
-
Built-in communication: RS485 / CAN for battery integration
🔋 Dyness STACK100 30.72 kWh Battery System
-
Modular design: 6 × 5.12 kWh LiFePO₄ modules = 30.72 kWh
-
Module specification: 51.2 V / 100 Ah
-
Cycle life: ≥ 8,000 cycles
-
Scalable system (supports up to 76.8 kWh in one cluster, more in parallel)
-
Built-in safety with modular fire suppression per stack
-
Communication via CAN / RS-485 for seamless inverter integration
☀️ Canadian Solar Panels (48 Units)
-
High-efficiency monocrystalline modules
-
Reliable long-term performance for commercial-scale systems
📐 Specifications
Inverter – Deye 50 kW 3P
| Specification | Value |
|---|---|
| Rated Power | 50 kW |
| Battery Voltage Range | 160–700 V |
| Max Charge/Discharge Current | 75 A |
| MPPT Trackers | Multiple |
| Max DC Input Voltage | ~1000 V |
| Efficiency (Max) | ~98.5% |
| Parallel Operation | Supported |
| Protection | IP65 |
| Communication | CAN / RS-485 |
Battery – Dyness STACK100 (30.72 kWh)
| Specification | Value |
|---|---|
| Nominal Energy | 30.72 kWh |
| Nominal Voltage | 51.2 V per module |
| Chemistry | LiFePO₄ |
| Cycle Life | ≥ 8,000 cycles |
| Max Discharge Rate | Compatible with 50 kW inverter |
| Communication | CAN / RS-485 |
| Installation | Modular stacking, floor-standing or rack-mounted |
🏷️ Quality & Support
This bundle delivers a high-capacity commercial and industrial hybrid solar solution. The Deye 50 kW inverter provides reliable power for large loads. The Dyness STACK100 system offers 30.72 kWh of modular, safe, and expandable storage with a long cycle life. With 48 Canadian Solar panels, the system ensures efficient solar generation, dependable backup, and scalable energy management for demanding applications.
