Deye 50kW Inverter + Dyness Stack 100, 61.44kWh + 96 Canadian Solar Panels
Couldn't load pickup availability

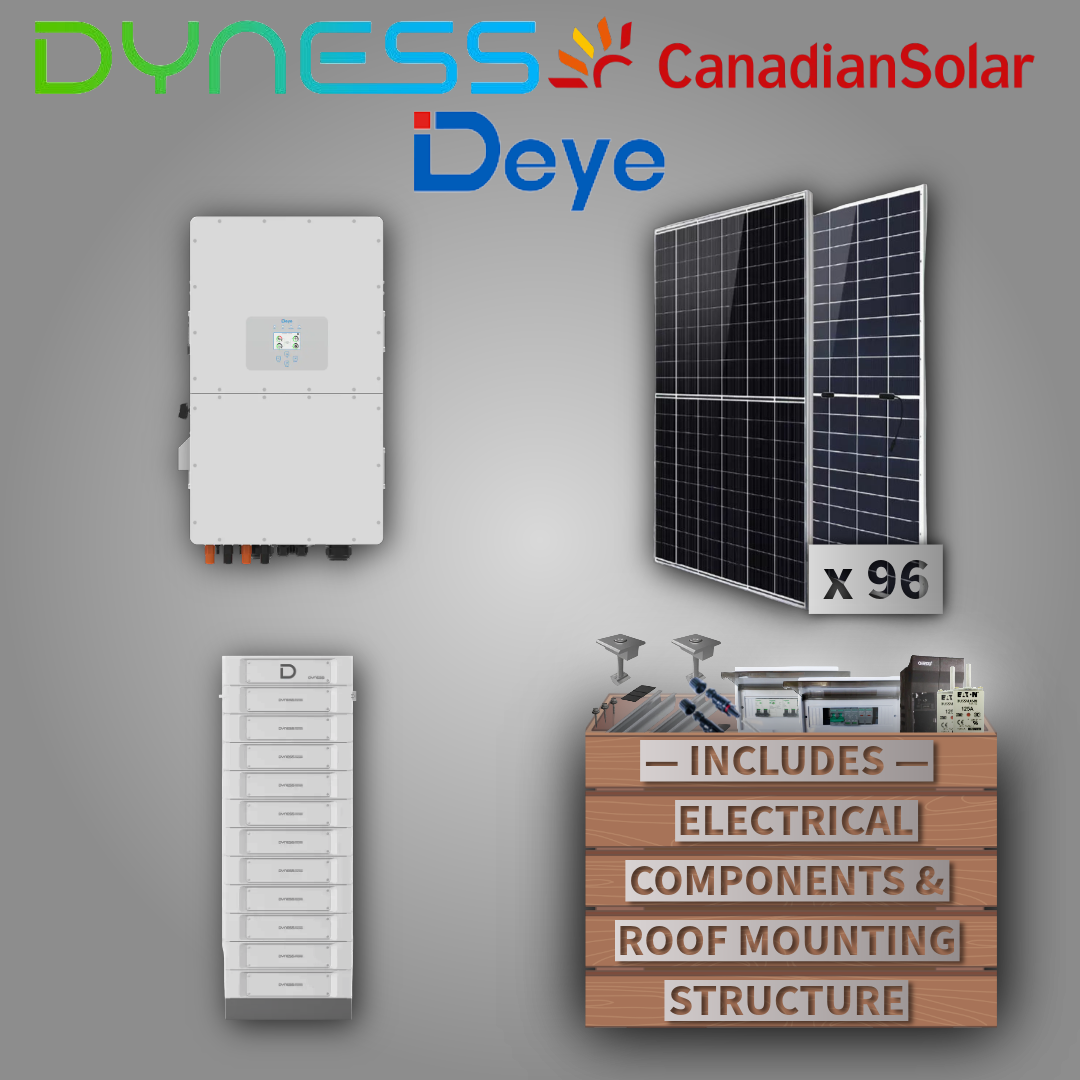

Deye 50 kW 3P Hybrid Inverter + Dyness STACK100 61.44 kWh + 96 Canadian Solar Panels
🆔 Models
-
Inverter: Deye 50 kW 3-Phase Hybrid Inverter
-
Battery: Dyness STACK100 — 12 × 5.12 kWh modules = 61.44 kWh
-
Panels: 96 × Canadian Solar Panels
🏷️ Brand
Deye + Dyness
🔌 Type
Three‑Phase Hybrid Inverter + Modular Li‑ion Battery + Solar Panel Kit
Ideal for commercial, industrial, and large-scale residential systems requiring high-capacity solar generation and backup.
⚡ Key Features
🔆 Deye 50 kW 3P Hybrid Inverter
-
50 kW three-phase output — supports heavy commercial and industrial loads
-
High-voltage battery support: 160 – 700 V
-
Max charging / discharging current: 75 A
-
Multiple MPPT trackers for flexible PV string design
-
Wide DC input PV voltage range, up to ~1000 V
-
Parallel-capable for future system scalability
-
IP65-rated enclosure for outdoor or semi-outdoor installation
-
Built-in communication: RS485 / CAN for battery integration
🔋 Dyness STACK100 61.44 kWh Battery System
-
Modular design: 12 × 5.12 kWh LiFePO₄ modules = 61.44 kWh
-
Module specification: 51.2 V / 100 Ah
-
Cycle life: ≥ 8,000 cycles
-
Scalable system (supports up to 76.8 kWh in one cluster, more in parallel)
-
Built-in safety with modular fire suppression per stack
-
Communication via CAN / RS-485 for seamless inverter integration
☀️ Canadian Solar Panels (96 Units)
-
High-efficiency monocrystalline modules
-
Reliable long-term performance for large-scale commercial or industrial solar systems
📐 Specifications
Inverter – Deye 50 kW 3P
| Specification | Value |
|---|---|
| Rated Power | 50 kW |
| Battery Voltage Range | 160–700 V |
| Max Charge/Discharge Current | 75 A |
| MPPT Trackers | Multiple |
| Max DC Input Voltage | ~1000 V |
| Efficiency (Max) | ~98.5% |
| Parallel Operation | Supported |
| Protection | IP65 |
| Communication | CAN / RS-485 |
Battery – Dyness STACK100 (61.44 kWh)
| Specification | Value |
|---|---|
| Nominal Energy | 61.44 kWh |
| Nominal Voltage | 51.2 V per module |
| Chemistry | LiFePO₄ |
| Cycle Life | ≥ 8,000 cycles |
| Max Discharge Rate | Compatible with 50 kW inverter |
| Communication | CAN / RS-485 |
| Installation | Modular stacking, floor-standing or rack-mounted |
🏷️ Quality & Support
This bundle provides a high-capacity commercial and industrial hybrid solar solution. The Deye 50 kW inverter delivers strong, reliable power for large loads. The Dyness STACK100 system provides 61.44 kWh of modular, safe, and expandable storage with long cycle life. Combined with 96 Canadian Solar panels, the system ensures robust solar generation, reliable backup, and scalable energy management for demanding applications.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
