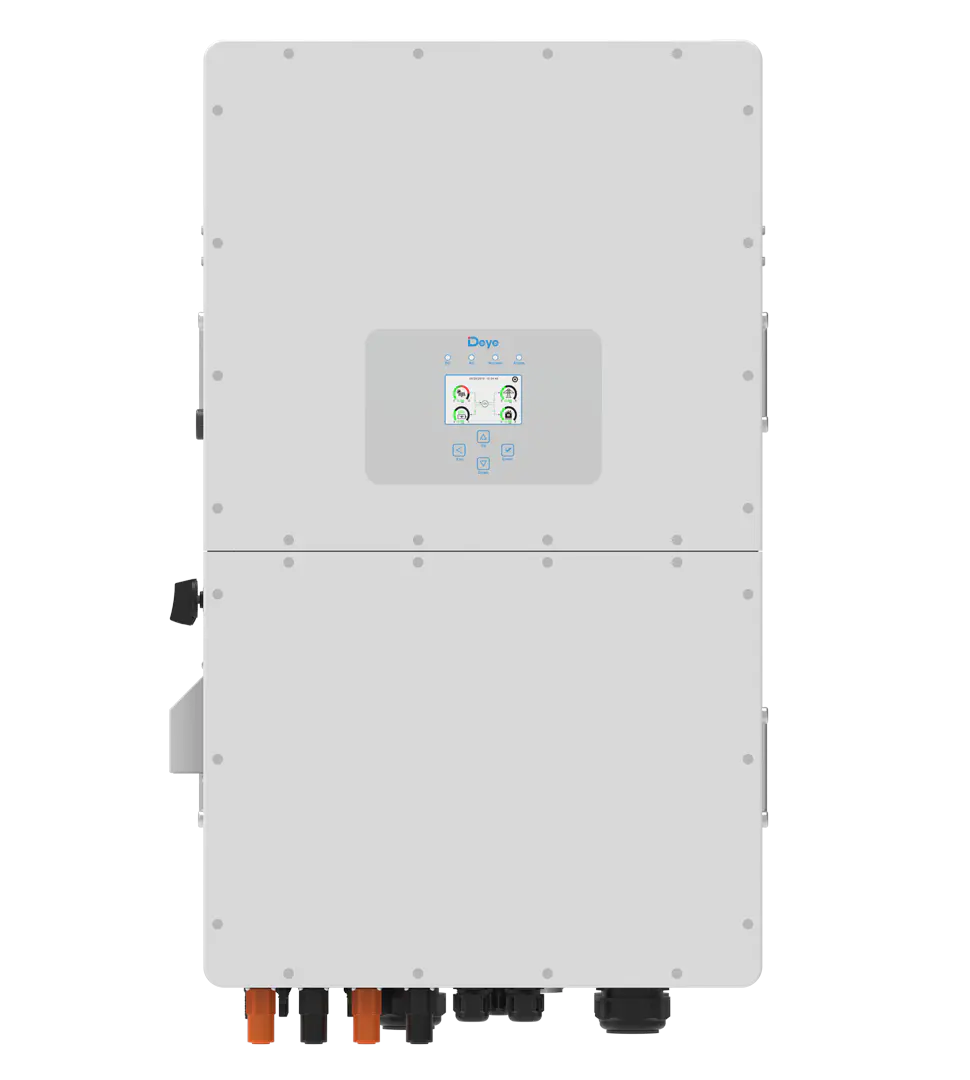

Colorful touch LCD, IP65 protection degree
AC‑couple and DC‑couple retrofit capability for existing solar systems
Supports up to 10 pcs in parallel for on‑grid and off‑grid operation; supports multiple batteries in parallel
Max. charging/discharging current of 100A
6 time periods for battery charging/discharging
Supports storing energy from diesel generators
Unbalanced three‑phase output: each phase can supply up to 50% of rated power
Battery Input Data:
Battery Type: Lithium‑ion
Battery Voltage Range: 160–800V
Max. Charging/Discharging Current: 100A
UPS Power: 50,000W
PV String Input Data:
Max. PV Input Power: 65,000W
Max. PV Input Voltage: 1,000V
Start‑up Voltage: 180V
MPPT Voltage Range: 150–850V
Rated DC Input Voltage: 600V
Number of MPPTs / Strings per MPPT: 4 / 2+2+2+2
Max. PV Input Current: 36A + 36A + 36A + 36A
Max. Short‑Circuit Current: 55A + 55A + 55A + 55A
AC Input/Output Data:
Rated AC Output Power: 50,000W
Max. AC Apparent Power: 55,000VA
Rated AC Output Current: ~75.8A
Max. AC Output Current: ~83.4A
Max. Continuous AC Passthrough: 200A
Peak Off‑Grid Power: 1.5× rated power for 10 seconds
Output Voltage/Frequency: 220/380V or 230/400V, 50/60Hz, 3‑phase
