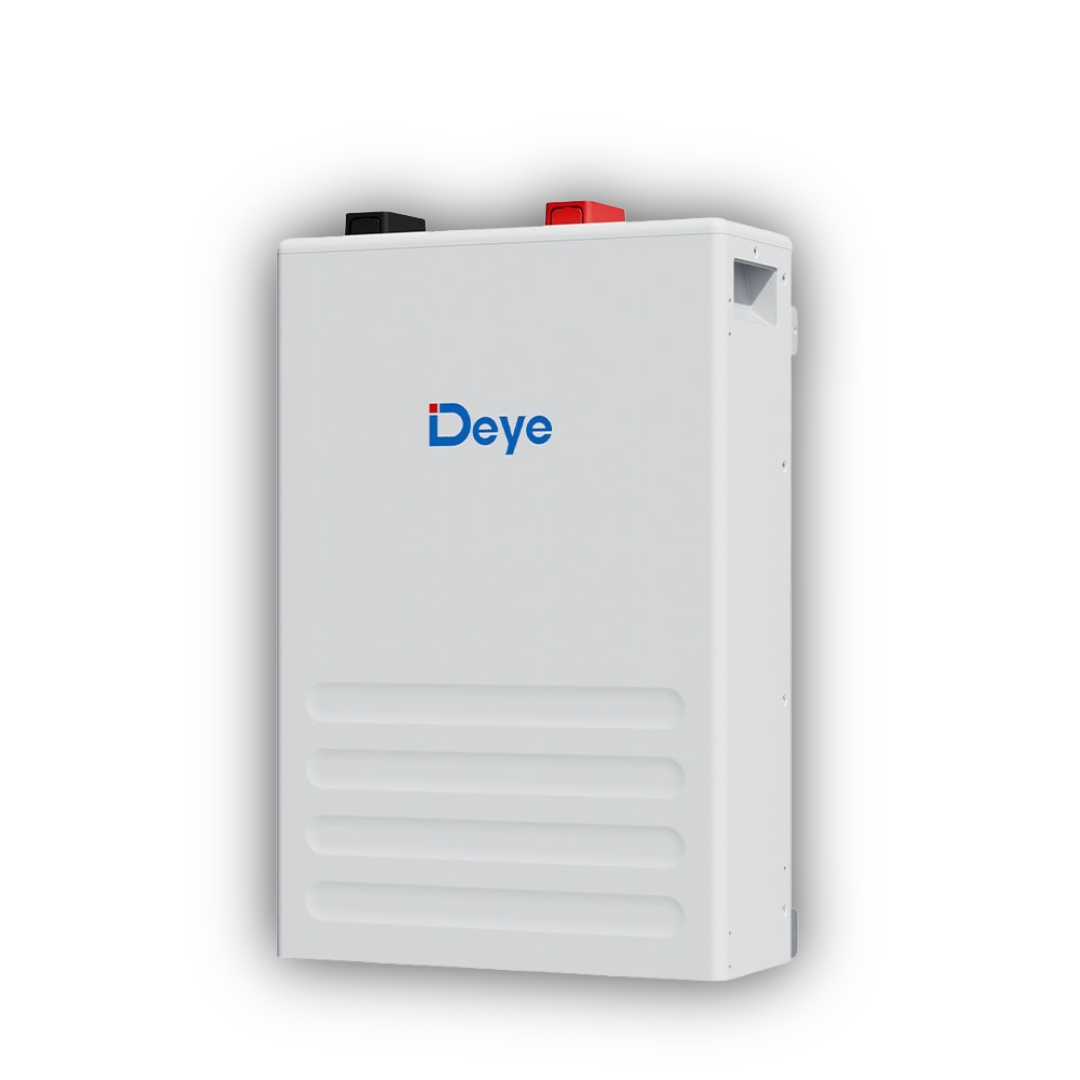

Deye 5.12kWh SE-F5 L Plus Battery - No Screen
Couldn't load pickup availability
🔋 Deye 5.12 kWh Lithium Battery (SE-F5 Plus)
Model: SE-F5 Plus
Brand: Deye
Type: Low-Voltage Lithium Iron Phosphate (LiFePO₄) Battery — Wall / Floor / Stack Installation
⚡ Key Features
• 5.12 kWh energy capacity — ideal for residential solar storage and backup power systems.
• LiFePO₄ battery chemistry — long cycle life, high thermal stability, and improved safety.
• High charge/discharge capability — supports up to 100 A continuous charge and 120 A continuous discharge for strong inverter compatibility.
• Expandable system design — supports up to 32 batteries in parallel for larger storage systems.
• Smart BMS protection — integrated battery management system with fuse protection and advanced safety controls.
• Flexible installation — supports wall-mounted, floor-mounted, or stacked configurations.
• Wide operating temperature range — suitable for demanding environments.
• Communication integration — CAN2.0, RS485 and Bluetooth monitoring via mobile app.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SE-F5 Plus |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Energy Capacity | 5.12 kWh |
| Operating Voltage Range | 44.8 – 57.6 V |
| Max Continuous Charge Current | 100 A |
| Peak Charge Current | 120 A (10 sec) |
| Max Continuous Discharge Current | 120 A |
| Peak Discharge Current | 150 A (10 sec) |
| Recommended Depth of Discharge | 90% |
| Cycle Life | ≥ 6000 cycles |
| Communication | CAN2.0 / RS485 / Bluetooth |
| Installation | Wall-mounted / Floor-mounted / Stackable |
| Max Parallel Units | 32 batteries |
| Dimensions (W × H × D) | 370 × 548 × 140 mm |
| Weight | ~41 kg |
| Protection Rating | IP21 |
| Operating Temperature | Charge: 0–55 °C / Discharge: −20–55 °C |
| Certifications | UN38.3, CE, MSDS |
Difference Between SE-F5 and SE-F5 Plus / Pro
The standard SE-F5 variant is positioned as the more affordable entry-level option within the Deye 5.12 kWh battery range compared to the SE-F5 Plus / Pro models, they differentiate in:
- Lifetime energy throughput (Life span)
- Warranty period duration
- Long-term cycling capability length
The SE-F5 Plus / Pro versions are designed for heavier daily usage with significantly higher lifetime throughput ratings and extended warranty support, making them more suitable for intensive hybrid and off-grid systems.
🏷️ Quality & Support
The Deye SE-F5 Plus 5.12 kWh battery is designed for modern hybrid solar systems requiring reliable lithium energy storage. With LiFePO₄ chemistry, high current capability, and scalable parallel expansion, it provides safe, long-life performance for residential energy storage and backup applications.
