Deye 30KW 3P HV Hybrid Inverter
Couldn't load pickup availability

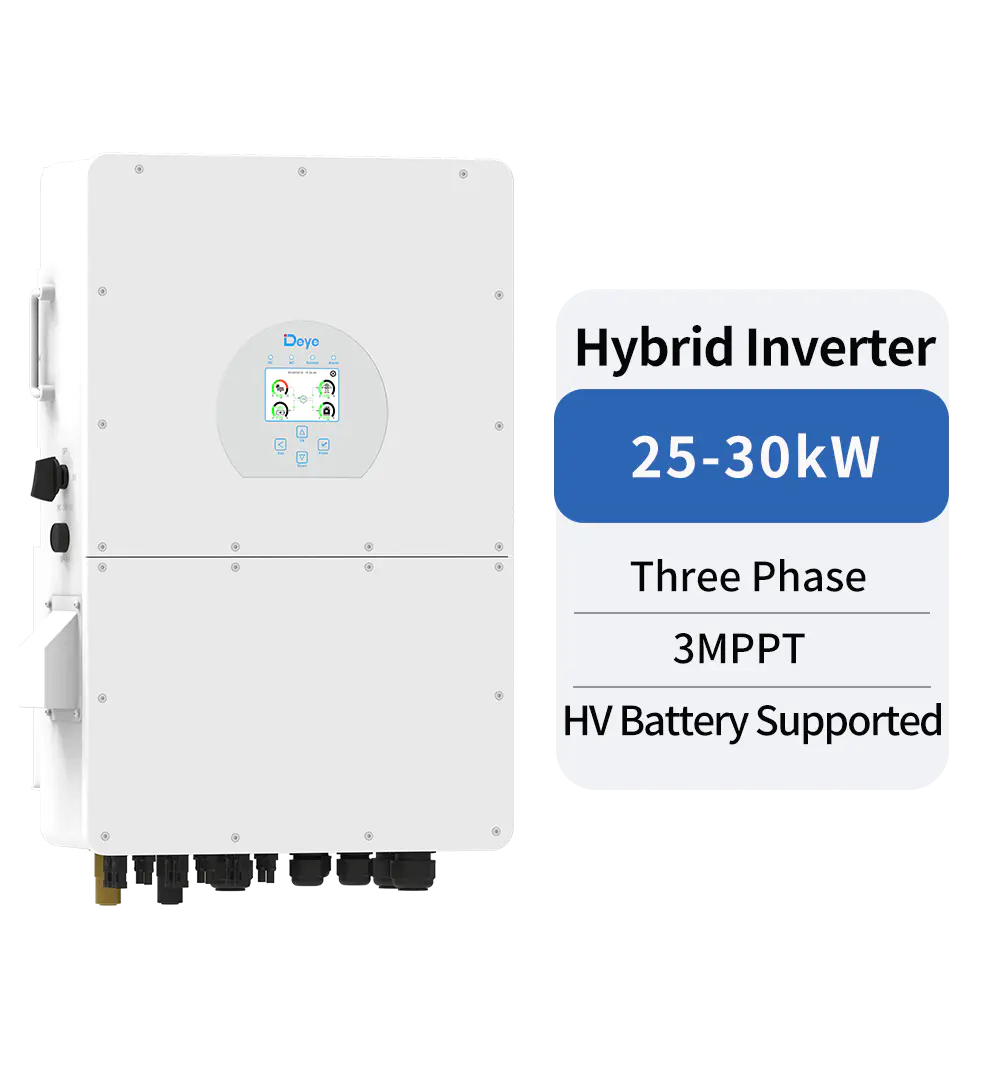

🔌 Deye 30 kW Hybrid Inverter (Three‑Phase)
Model: SUN‑30K‑SG02HP3‑EU‑AM3
Brand: Deye
Type: Three‑Phase Hybrid Inverter (Solar + High-Voltage Battery + Grid Integration)
⚡ Key Features
-
30 kW rated AC output — ideal for commercial, industrial, or larger residential three‑phase solar + storage systems.
-
High-voltage battery support (~160–700 V) with maximum charging/discharging current of ~75 A.
-
Three MPPT trackers for flexible PV string configuration and improved energy harvest.
-
Wide DC input voltage range (up to ~1000 V) and MPPT range (~150–850 V) — supports larger PV arrays.
-
100% unbalanced output capability across phases — useful in systems with uneven load distribution.
-
Parallel operation support: up to 10 units for system scalability.
-
Robust IP65-rated enclosure suitable for outdoor or semi-outdoor installation.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUN‑30K‑SG02HP3‑EU‑AM3 |
| Rated AC Output Power | 30 kW |
| Number of MPPTs | 3 |
| Battery Voltage Range | ~160–700 V |
| Max Charge/Discharge Current | ~75 A |
| Max DC Input Voltage | ~1000 V |
| MPPT Voltage Range | ~150–850 V |
| Efficiency (Max) | ~97.6% |
| Protection Degree | IP65 |
| Grid Type | Three‑phase |
| Dimensions (W×H×D) | ~448 × 688 × 270 mm |
| Weight | ~46 kg |
| Warranty | Standard (typically 5 years) |
🏷️ Quality & Support
The Deye 30 kW three-phase hybrid inverter is designed for reliable performance in solar + battery + grid systems. With high-voltage battery compatibility, flexible PV input, three MPPT trackers, and parallel scalability, it is well-suited for commercial, industrial, and advanced residential installations. Its IP65-rated enclosure ensures durability for outdoor or semi-outdoor applications, while the unbalanced output capability adds operational flexibility.
