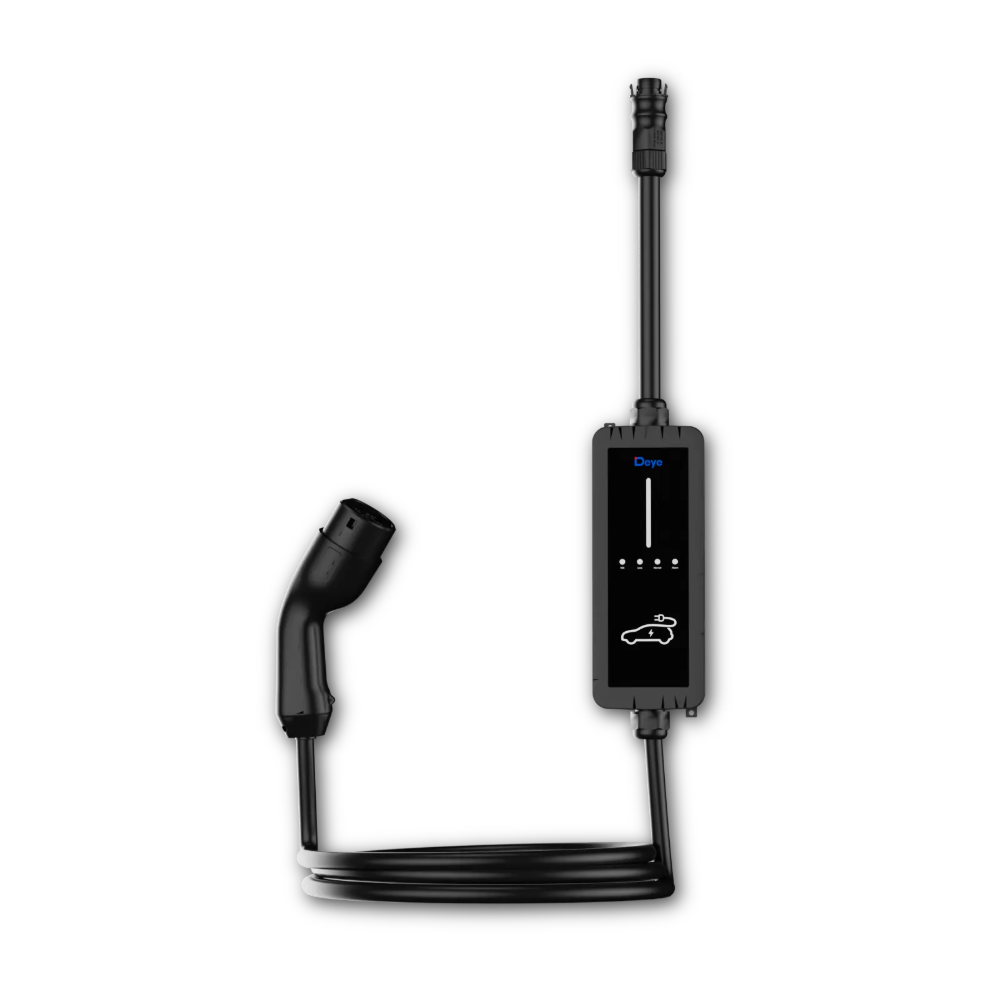

Deye 22kW Smart EV Charger - SUN-EVSE22K01-EU-AC
Regular price
R 6,449.00 ZAR
Regular price
R 7,249.00 ZAR
Sale price
R 6,449.00 ZAR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Deye 22kW Smart EV Charger - SUN-EVSE22K01-EU-AC
🆔 Models
Charger: Deye SUN-EVSE22K01-EU-AC – 22kW Smart EV Charger
Includes
- Deye 22kW Smart EV Charger Unit
- Integrated Type 2 charging cable (±4.2m)
- Built-in communication and protection system
- Wall-mount installation hardware
Key Features
- 22kW high-speed AC charging (3-phase)
- Supports both single-phase (7kW) and three-phase (22kW) operation
- Smart connectivity via LoRa, Wi-Fi, and Bluetooth
- Multiple charging modes: Plug & Charge, App Control, Scheduled Charging
- Solar integration capability with Deye hybrid inverters
- Advanced safety protection including DC leakage (6mA) and surge protection
- Quiet operation and compact wall-mounted design
- IP66-rated for indoor and outdoor installations
Specifications
| Specification | Details |
|---|---|
| Model | SUN-EVSE22K01-EU-AC |
| Max Output Power | 22 kW (3 Phase) / 7 kW (Single Phase) |
| Input Voltage | 230V / 400V |
| Connection Type | L+N+PE / 3L+N+PE |
| Input Current | 32 A |
| Frequency | 50 / 60 Hz |
Protection Features
| Protection Type | Details |
|---|---|
| Over Voltage | Yes |
| Under Voltage | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Over Temperature | Yes |
| Low Temperature | Yes |
| Earth Fault Protection | Yes |
| Leakage Protection | DC 6mA |
| Surge Protection | Type II |
Communication & Interface
| Specification | Details |
|---|---|
| Communication | LoRa / Wi-Fi / Bluetooth |
| Charging Modes | Plug & Charge / Scheduled / Smart Control |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (W×H×D) | 104 × 264 × 57.5 mm |
| Weight | ±3.7 kg |
| Cable Length | ±4.2 m |
| IP Rating | IP66 |
Technical & Build
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to +55°C |
| Humidity | 5% – 95% (non-condensing) |
| Max Altitude | <3000 m |
| Noise Level | ≤25 dB |
| Standards | IEC 61851 / EN compliance standards |
Additional Information
- Compatible with most Type 2 electric vehicles
- Supports solar charging when integrated with Deye systems
- Suitable for residential and commercial installations
- Professional installation recommended
DATASHEET
