Deye 200kW MPPT Module For PCS
Couldn't load pickup availability

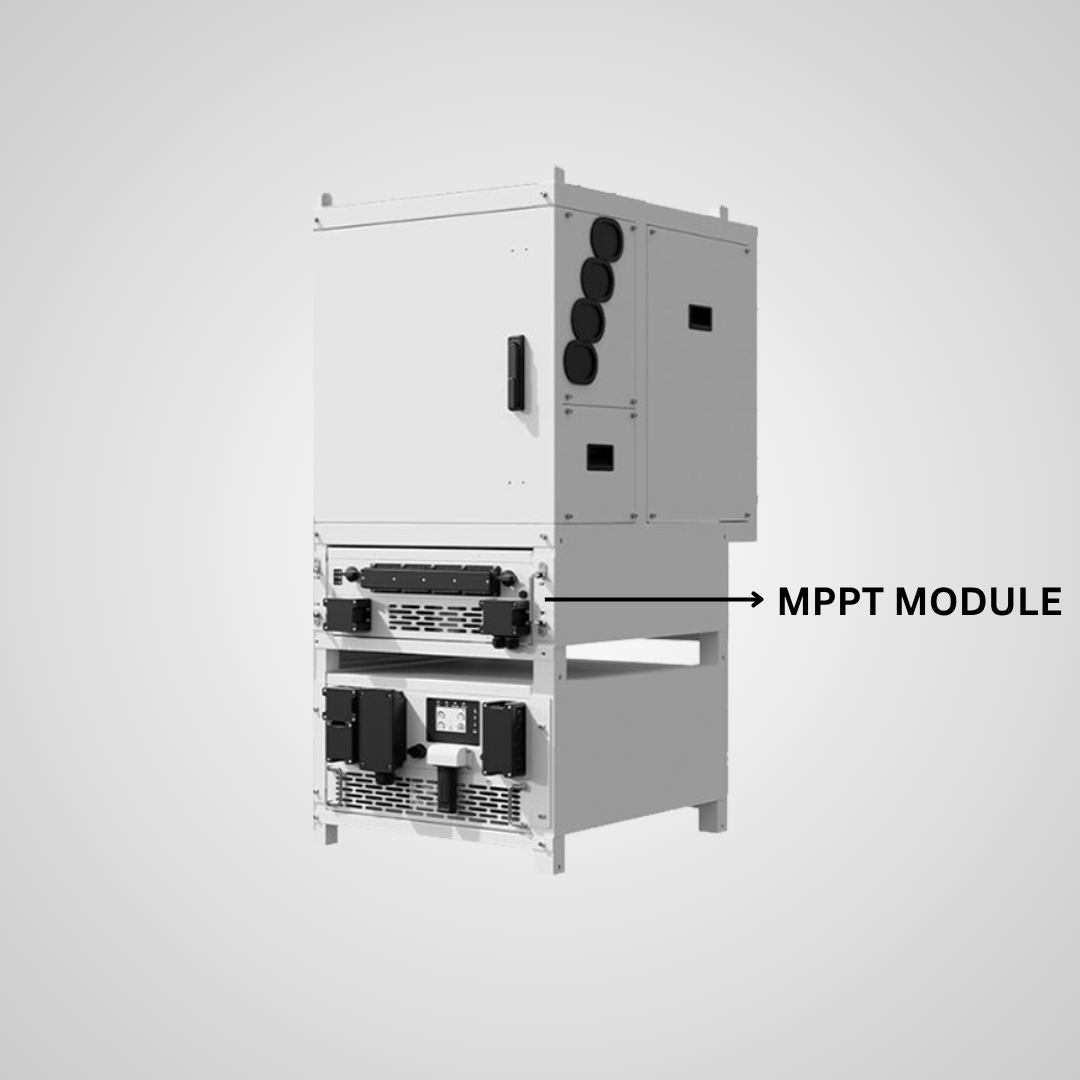

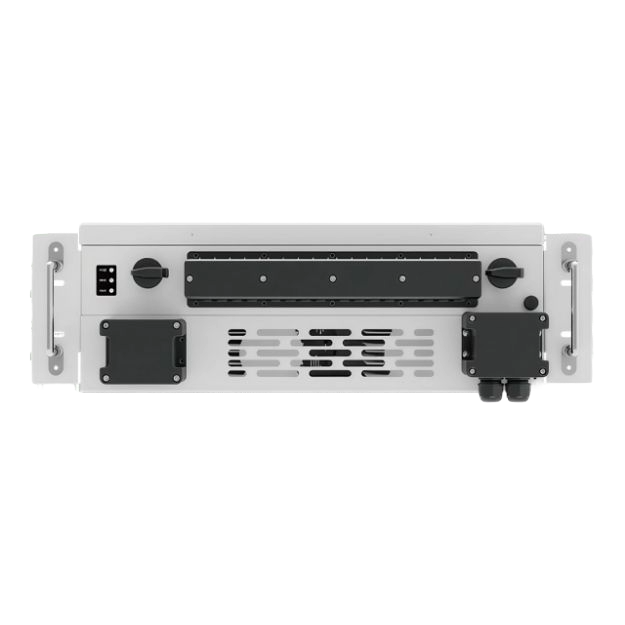

🔌 Deye 200 kW MPPT Module for PCS
Model: SUN-MPPT-200KW
Brand: Deye
Type: High-Capacity MPPT Module (Solar + Battery + Grid Integration)
⚡ Key Features
-
200 kW maximum PV input — ideal for large commercial or industrial solar + storage systems.
-
Multiple MPPT channels (8 independent trackers) for optimized string configuration and maximum energy harvest.
-
Wide MPPT voltage range (~180–850 V) to support flexible PV array designs.
-
Compatible with PCS (Power Conversion System) for integration with battery storage and grid interaction.
-
Outdoor-rated IP65 enclosure with robust cooling and protection for harsh environments.
-
Designed for high-efficiency energy conversion and stable operation in large-scale hybrid systems.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUN-MPPT-200KW |
| Maximum PV Input Power | 200 kW |
| Number of MPPTs | 8 |
| MPPT Voltage Range | ~180–850 V |
| Max PV Input Voltage | ~800–1000 V |
| Cooling & Protection | Smart cooling, IP65 |
| Integration | Compatible with PCS / hybrid systems |
| Weight | ~450 kg |
| Warranty | Standard model warranty |
🏷️ Quality & Support
Deye’s 200 kW MPPT module is engineered for large-scale solar and hybrid energy systems. It combines high-capacity PV input, multiple MPPT trackers, and integration with storage and grid systems in a single robust unit. Ideal for commercial or industrial applications, it offers flexibility, efficiency, and scalability for future energy expansion.
