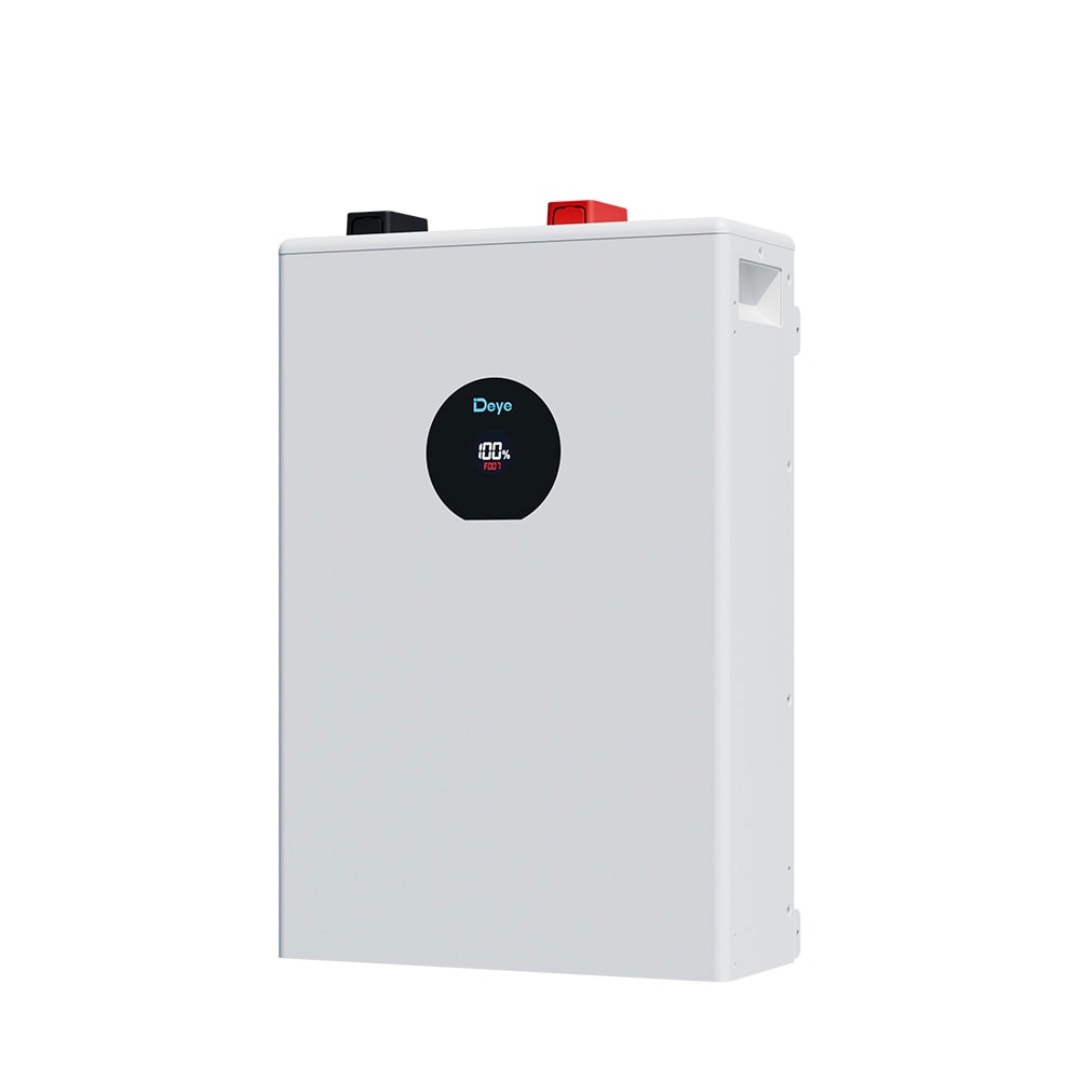

🔋 Deye SE-F16 Lithium Battery (With Screen)
Brand: Deye
Model: SE-F16
Type: Low-Voltage Lithium Iron Phosphate (LiFePO₄) Battery
Application: Residential and small commercial solar energy storage and backup systems
⚡ Key Features
• 16 kWh nominal capacity — ideal for high-demand residential and light commercial energy storage.
• ~14.4 kWh usable energy (90% DoD) — supports daily cycling and extended backup runtime.
• LiFePO₄ battery chemistry — ensures high safety, thermal stability, and long service life.
• High power output — delivers up to 8 kW continuous output for demanding loads.
• Scalable system design — supports up to 32 units in parallel for expanded storage capacity.
• Integrated protection system — built-in breaker with advanced BMS for full protection.
• Integrated display (screen) — allows real-time monitoring of battery status and performance.
• Flexible installation — suitable for wall-mounted or floor-standing installations.
• Smart inverter compatibility — integrates seamlessly with Deye hybrid inverter systems.
• High efficiency performance — optimised for solar self-consumption and backup applications.
• Indoor-rated enclosure (IP20) — ideal for battery rooms and utility spaces.
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | SE-F16 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Usable Energy | ~14.4 kWh (90% DoD) |
| Max Charge / Discharge Current | 160 A |
| Peak Discharge Current (10s) | 300 A |
| Max Continuous Output Power | 8 kW |
| Parallel Capability | Up to 32 units |
| Installation | Wall-mounted / Floor-standing |
| Dimensions (W × H × D) | 480 × 830 × 235 mm |
| Weight | ~122 kg |
| Protection Rating | IP20 |
| Operating Temperature (Charge) | 0 °C to 55 °C |
| Operating Temperature (Discharge) | −20 °C to 55 °C |
| Relative Humidity | ≤ 95% |
| Certifications | UN38.3, MSDS |
| Warranty | Standard 5 years (extendable to 10 years) |
🏷️ Quality & Support
The Deye SE-F16 lithium battery is engineered for reliable, high-capacity energy storage in modern solar systems. With LiFePO₄ chemistry, strong discharge capability, and scalable design, it delivers dependable performance for residential and small commercial installations requiring backup power and energy optimisation.
