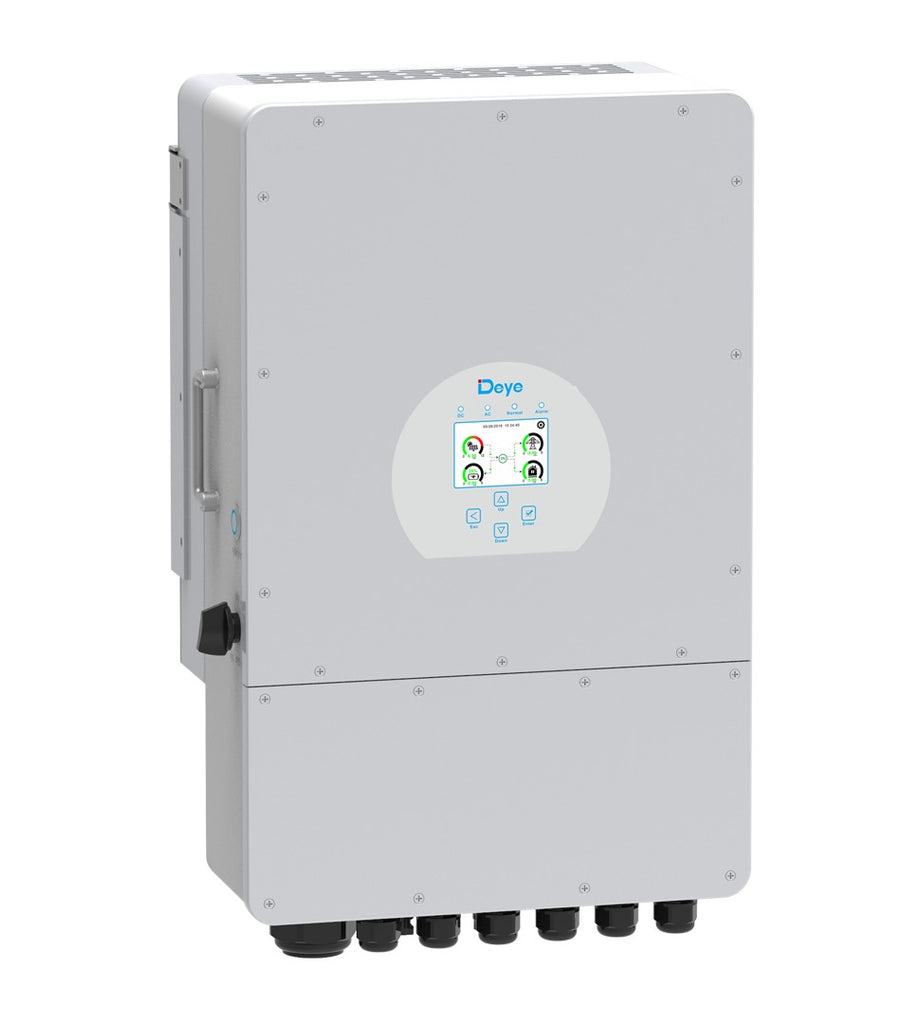

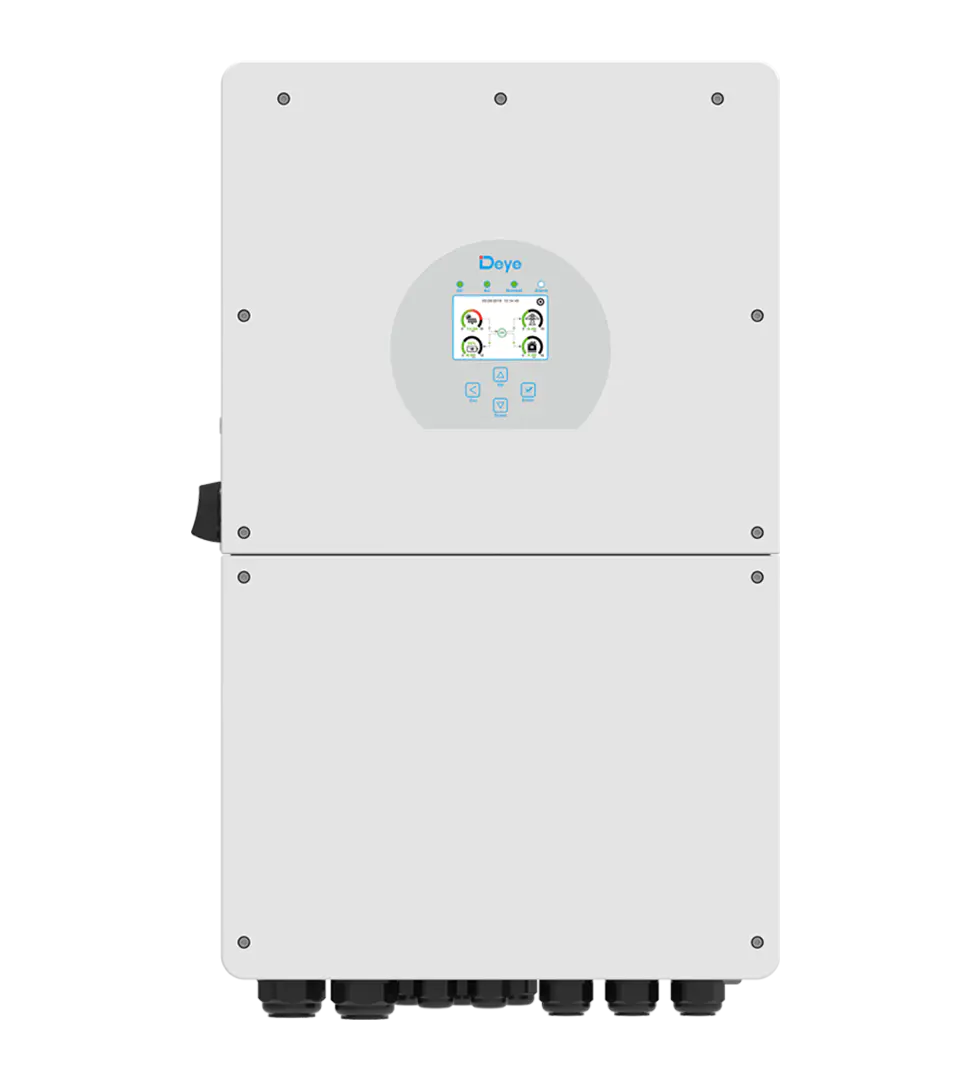

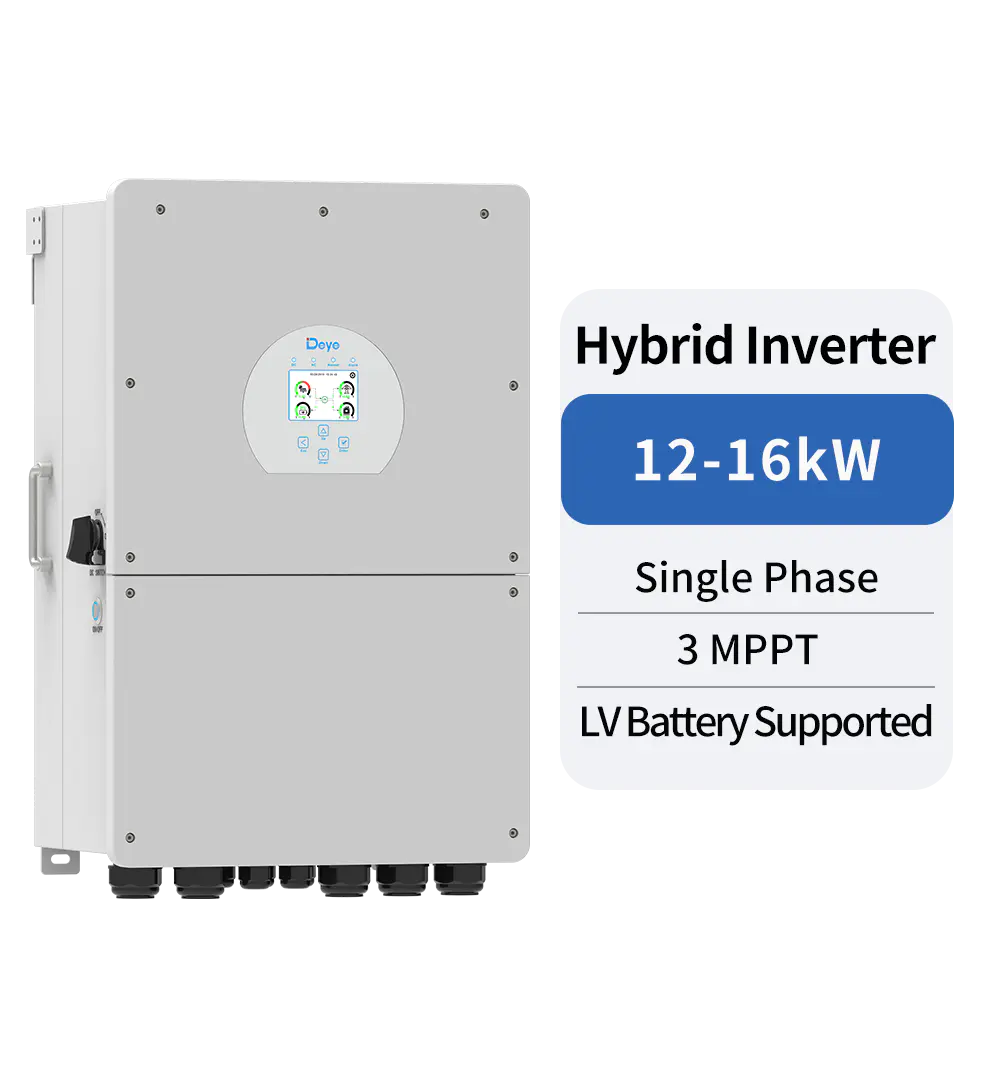

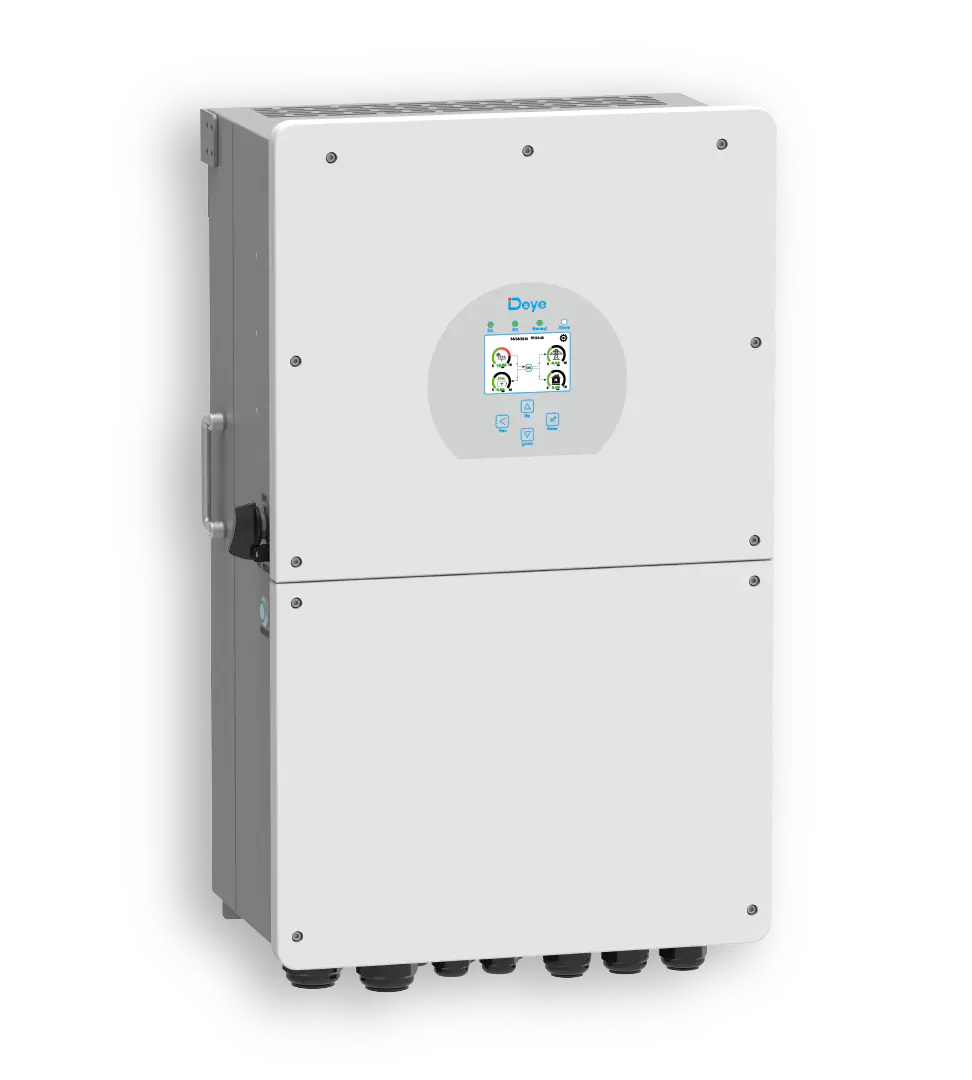

Colorful touch LCD, IP65 protection degree
AC-couple and DC-couple retrofit for existing solar systems
Supports up to 16 pcs parallel for on-grid, hybrid & off-grid operation; support for multiple batteries in parallel
Max. charging/discharging current of 290A
6 time periods for battery charging/discharging
Support storing energy from diesel generator; ≤ 5 ms switchover time
UPS function delivering up to 12 kW backup power
Battery Input Data:
Battery Type : Lead-acid or Lithium-ion
Battery Voltage Range : 40–60V
Max. Charging/Discharging Current : 290A
UPS Power : 12,000W
External temperature sensor, 3-stage/equalization charging, self-adaptive BMS
PV String Input Data:
Max. PV Access Power / Input Power : 20,800W
Max PV Input Voltage : 500V
Start-up Voltage : 125V
MPPT Voltage Range : 150–425V
Rated DC Input Voltage : 370V
Number of MPPTs / Strings per MPPT : 3 / 2
Max PV Input Current : 26A + 26A + 26A
Max Short-Circuit Current : 44A + 44A + 44A
AC Input/Output Data:
Rated AC Output Power : 16,000W
Max AC Apparent Power : 16,000VA
AC Output Rated Current : ~69.6A
Max Continuous AC Passthrough Current : 100A
Peak Off-Grid Power : 2× rated (for 5 s)
Power Factor : 0.8 lagging to 0.8 leading
Output Voltage/Frequency : 220/230V, 50/60Hz single-phase
