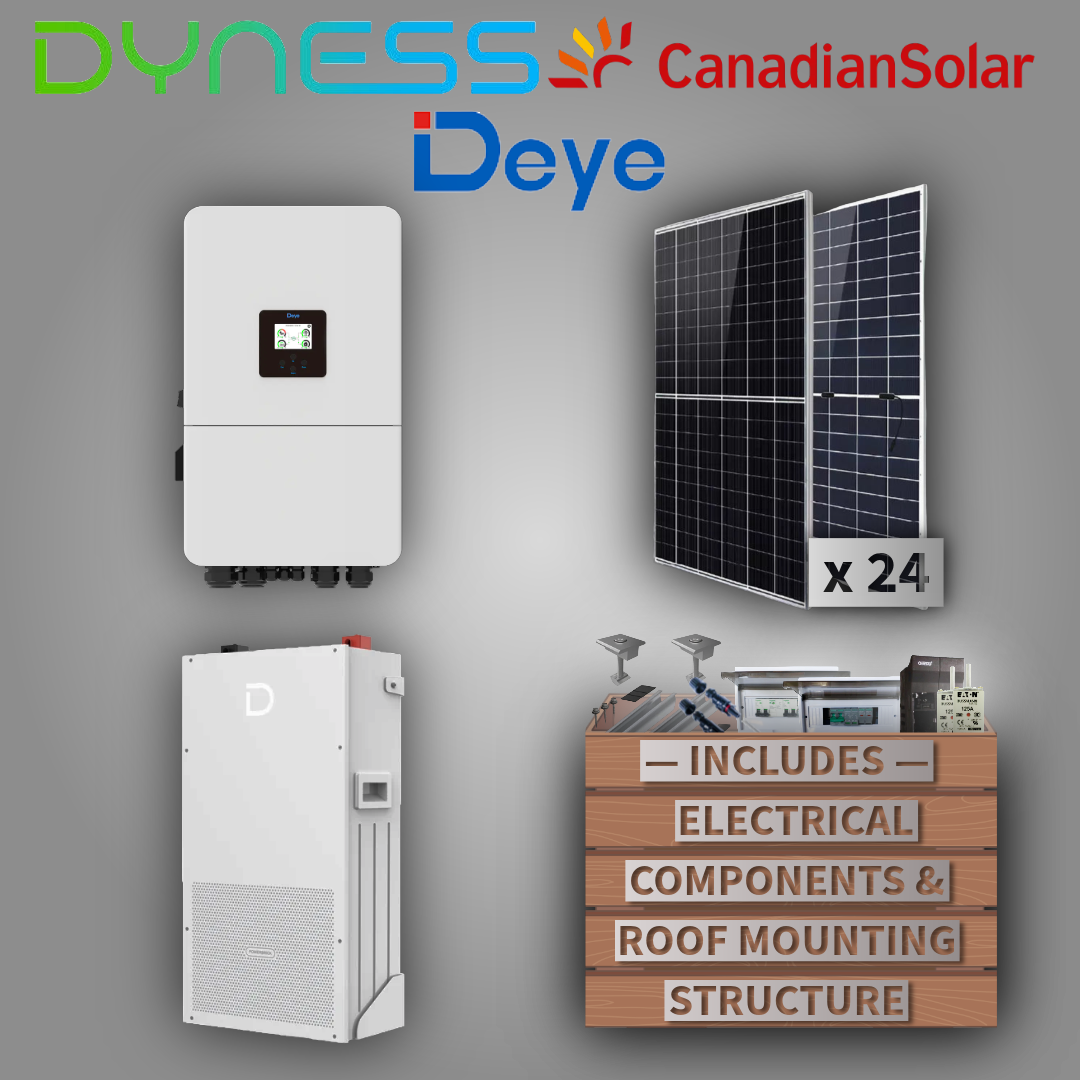

Deye 15kW 3P Inverter + Dyness 14.3kW Powerbrick + 24 Canadian Solar Panels
Couldn't load pickup availability
Deye 15kW 3P Hybrid Inverter + Dyness PowerBrick 14.3 kWh + 24 Canadian Solar Panels
🆔 Models
Inverter: Deye 15kW 3-Phase Hybrid Inverter
Battery: Dyness PowerBrick 14.3 kWh LiFePO₄ Battery
Panels: 24 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X24
10kW-16kW Inverter AC DB Kit Box X1
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye + Dyness
🔌 Type
Three-Phase Hybrid Inverter + Lithium-Ion Battery + Solar Panel Kit
Designed for commercial buildings, large homes, and high-demand backup systems.
⚡ Key Features
🔆 Deye 15kW 3P Hybrid Inverter
-
15kW continuous output — supports commercial or industrial loads
-
Multiple MPPT channels for optimal solar energy harvesting
-
Ultra-fast switchover for uninterrupted backup power
-
Operates in Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Advanced load management and scheduling capabilities
-
Wi-Fi monitoring and mobile app integration
-
Generator support and parallel-ready for future expansion
-
High reliability under heavy daily cycling and peak loads
🔋 Dyness PowerBrick 14.3 kWh Battery
-
14.3 kWh storage — ideal for extended backup or high-demand usage
-
Safe LiFePO₄ chemistry with integrated BMS
-
High discharge capability compatible with 15kW inverter loads
-
Modular and expandable design for larger energy systems
-
6000+ cycle lifespan for long-term durability
-
Floor-standing module with CAN/RS485 communication for inverter integration
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline PV modules
-
Durable and reliable energy production for commercial solar systems
📐 Specifications
Inverter — Deye 15kW 3P
| Specification | Value |
|---|---|
| Rated Power | 15 kW |
| Phase | Three-Phase |
| Battery Voltage | 48–60 V (LV) |
| MPPT Trackers | Multiple |
| Max PV Input | ~18–20 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness PowerBrick 14.3 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 14.3 kWh |
| Usable Energy | ~90–95% DoD |
| Nominal Voltage | 48 V class |
| Chemistry | LiFePO₄ |
| Cycle Life | 6000+ cycles |
| Communication | CAN / RS485 |
| Max Charge/Discharge | Supports 15kW system |
| Installation | Floor-standing module |
🏷️ Quality & Support
This Deye + Dyness bundle provides a high-capacity hybrid solution for commercial and industrial applications. The 15kW three-phase inverter delivers strong performance for heavy loads, while the 14.3 kWh PowerBrick ensures safe, reliable, and expandable energy storage. Combined with 24 Canadian Solar panels, this system offers efficient solar generation, dependable backup, and long-term durability.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
