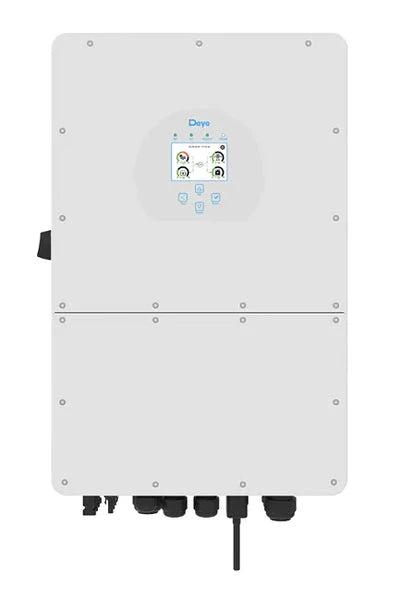

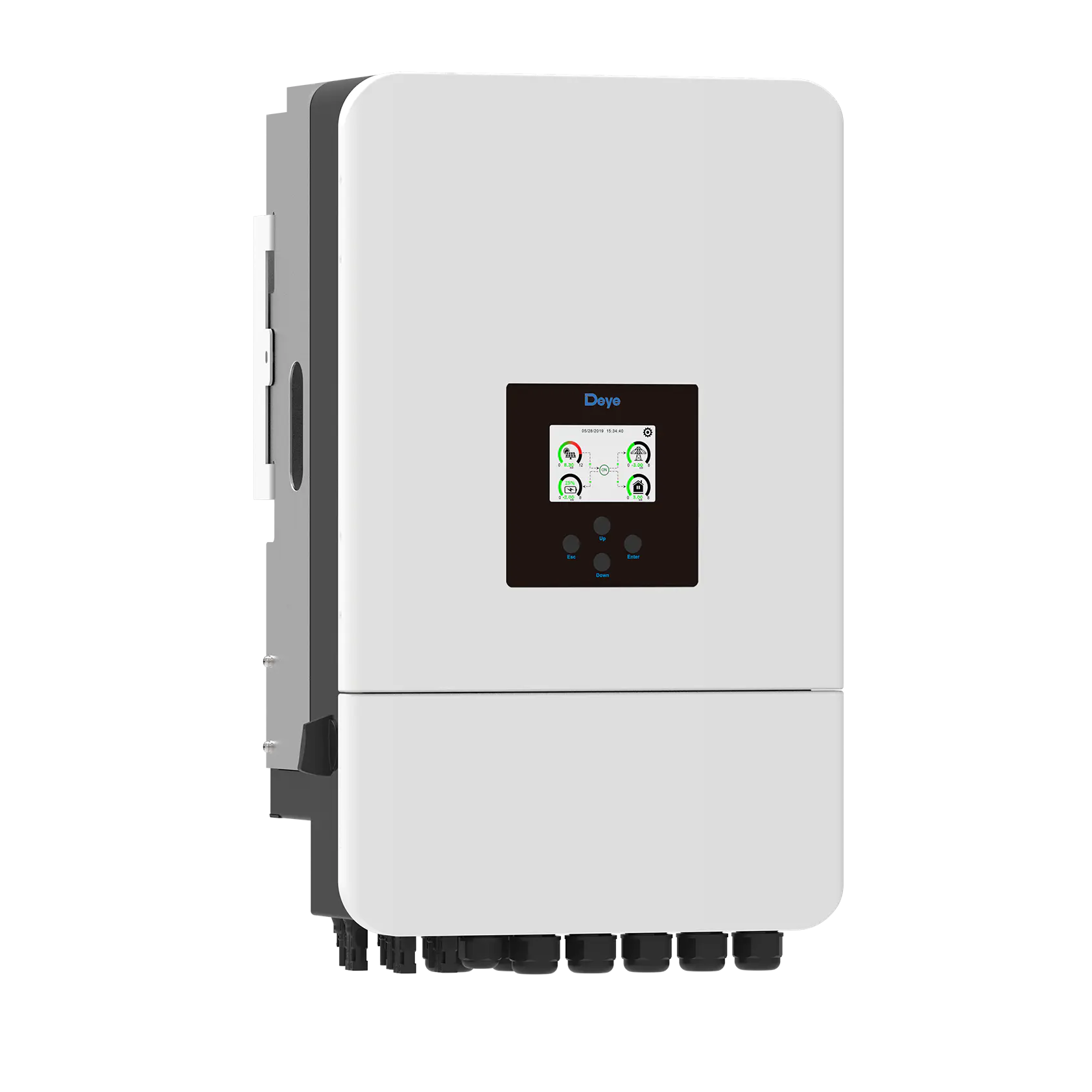

Colorful touch LCD, IP65 protection degree
AC‑couple and DC‑couple retrofit capability for existing solar systems

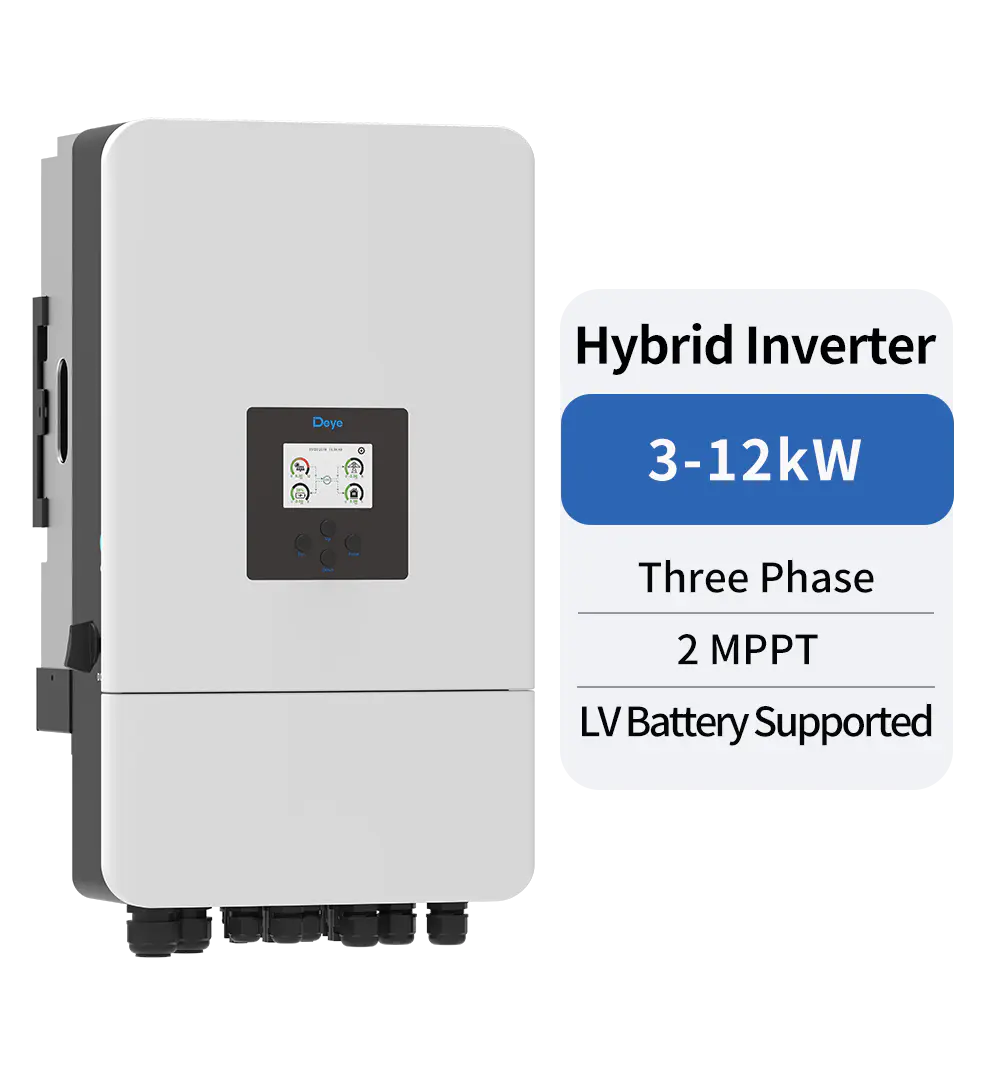

Supports on‑grid, hybrid & off‑grid operation; up to 10–16 pcs parallel
Support multiple batteries in parallel
Max. charging/discharging current of 240 A
6 time periods for battery charging/discharging
Support storing energy from diesel generator; ≤ 5 ms switchover time
Zero-export / export‑limiting and UPS functionality
100 % unbalanced output (each phase can supply up to 50 % of total rated power)
Battery Input Data:
Battery Type : Lead‑acid or Lithium‑ion
Battery Voltage Range : 40–60 V
Max. Charging/Discharging Current : 240 A
PV String Input Data:
Max. PV Access / Input Power : 15 600 W
Max PV Input Voltage : 800 V (operating up to 550 V typical)
Start‑up Voltage : 160 V
MPPT Voltage Range : 200–650 V
Number of MPPTs / Strings per MPPT : 2 / (2+1)
Max Input Current : ~25 A + 125 A
Max Short‑Circuit Current : ~34 A + 17 A
AC Input/Output Data:
Rated AC Output & UPS Power : 12 000 W
Max AC Output Power (Apparent) : 13 200 VA
Peak Off‑Grid Power : 2× rated (for 10 s)
Rated AC Current : ~18 A per phase
Max AC Current : ~27 A per phase
Max Continuous AC Passthrough : 45–50 A
Output Voltage / Frequency : 230 V/400 V, 50/60 Hz
