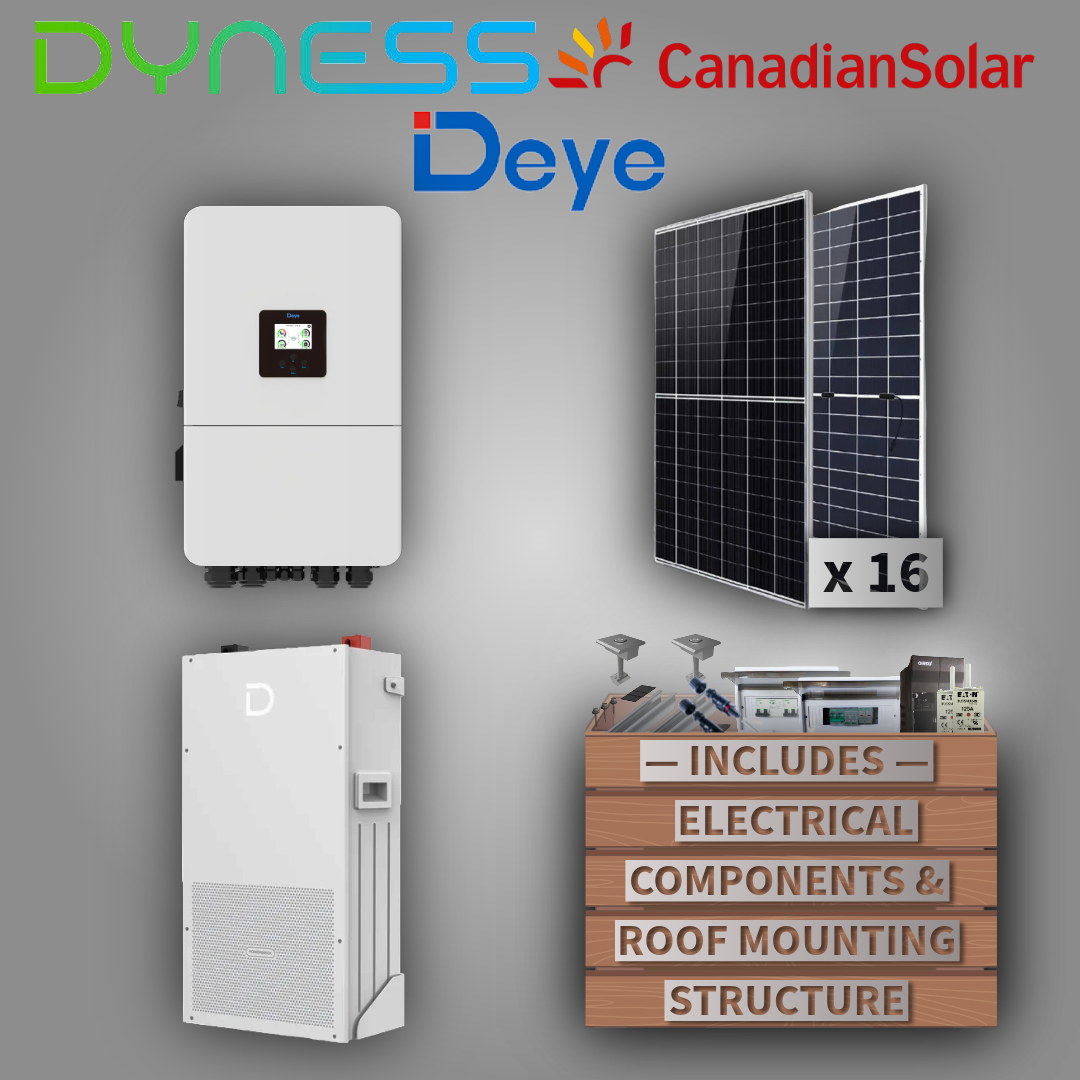

Deye 12kW 1P Inverter (LV) + Dyness 14.3kW Powerbrick + 16 Canadian Solar Panels
Couldn't load pickup availability
Deye 12kW 1P Hybrid Inverter + Dyness PowerBrick 14.3 kWh + 16 Canadian Solar Panels
🆔 Models
Inverter: Deye 12kW 1-Phase Low-Voltage Hybrid Inverter
Battery: Dyness PowerBrick 14.3 kWh LiFePO₄ Battery
Panels: 16 × Canadian Solar Panels
Includes:
Complete Aluminium Mounting Structure For IBR/Corrugated Roof Types X16
10kW-16kW Inverter AC DB Kit Box X1
250A Battery Fuse Disconnector X1
🏷️ Brand
Deye + Dyness
🔌 Type
Single-Phase Hybrid Inverter + Lithium-Ion Battery + Solar Panel Kit
Designed for large homes, commercial buildings, and reliable backup energy systems.
⚡ Key Features
🔆 Deye 12kW 1P Hybrid Inverter
-
12kW continuous output — supports high-demand residential and commercial loads
-
Multiple MPPT channels for efficient solar harvesting
-
Ultra-fast switchover for uninterrupted backup
-
Supports Hybrid, Grid-Tie, Off-Grid & Zero-Export modes
-
Intelligent load management and scheduling
-
Wi-Fi monitoring via mobile app
-
Generator support included
-
Parallel-ready for future expansion
-
High reliability under heavy daily cycling
🔋 Dyness PowerBrick 14.3 kWh Battery
-
14.3 kWh storage — ideal for extended backup or high-demand usage
-
Safe LiFePO₄ chemistry with integrated smart BMS
-
High discharge capability compatible with 12kW inverter loads
-
Modular and expandable design for larger energy systems
-
6000+ cycle lifespan for long-term durability
-
Floor-standing module with CAN/RS485 communication for inverter integration
☀️ Canadian Solar Panels
-
High-efficiency monocrystalline PV modules
-
Durable and reliable energy production for residential or commercial hybrid systems
📐 Specifications
Inverter — Deye 12kW 1P
| Specification | Value |
|---|---|
| Rated Power | 12 kW |
| Phase | Single-Phase |
| Battery Voltage | 48–60 V (LV) |
| MPPT Trackers | Multiple |
| Max PV Input | ~15 kW |
| Max PV Voltage | ~500 V |
| Max Efficiency | ± 97.6% |
| Switching Time | < 10 ms |
| Communication | CAN / RS485 / Wi-Fi |
| Modes | Hybrid / Grid-Tie / Off-Grid / Zero-Export |
| Parallel Operation | Supported |
| Operating Temp | –25 °C to +60 °C |
Battery — Dyness PowerBrick 14.3 kWh
| Specification | Value |
|---|---|
| Nominal Energy | 14.3 kWh |
| Usable Energy | ~90–95% DoD |
| Nominal Voltage | 48 V class |
| Chemistry | LiFePO₄ |
| Cycle Life | 6000+ cycles |
| Communication | CAN / RS485 |
| Max Charge/Discharge | Supports 12kW system |
| Installation | Floor-standing module |
🏷️ Quality & Support
This Deye + Dyness bundle provides a high-capacity hybrid solar solution for large homes or commercial installations. The 12kW single-phase inverter ensures reliable performance under heavy loads, while the 14.3 kWh PowerBrick provides safe, durable, and expandable energy storage. Paired with 16 Canadian Solar panels, the system offers efficient solar generation and dependable backup power.
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
