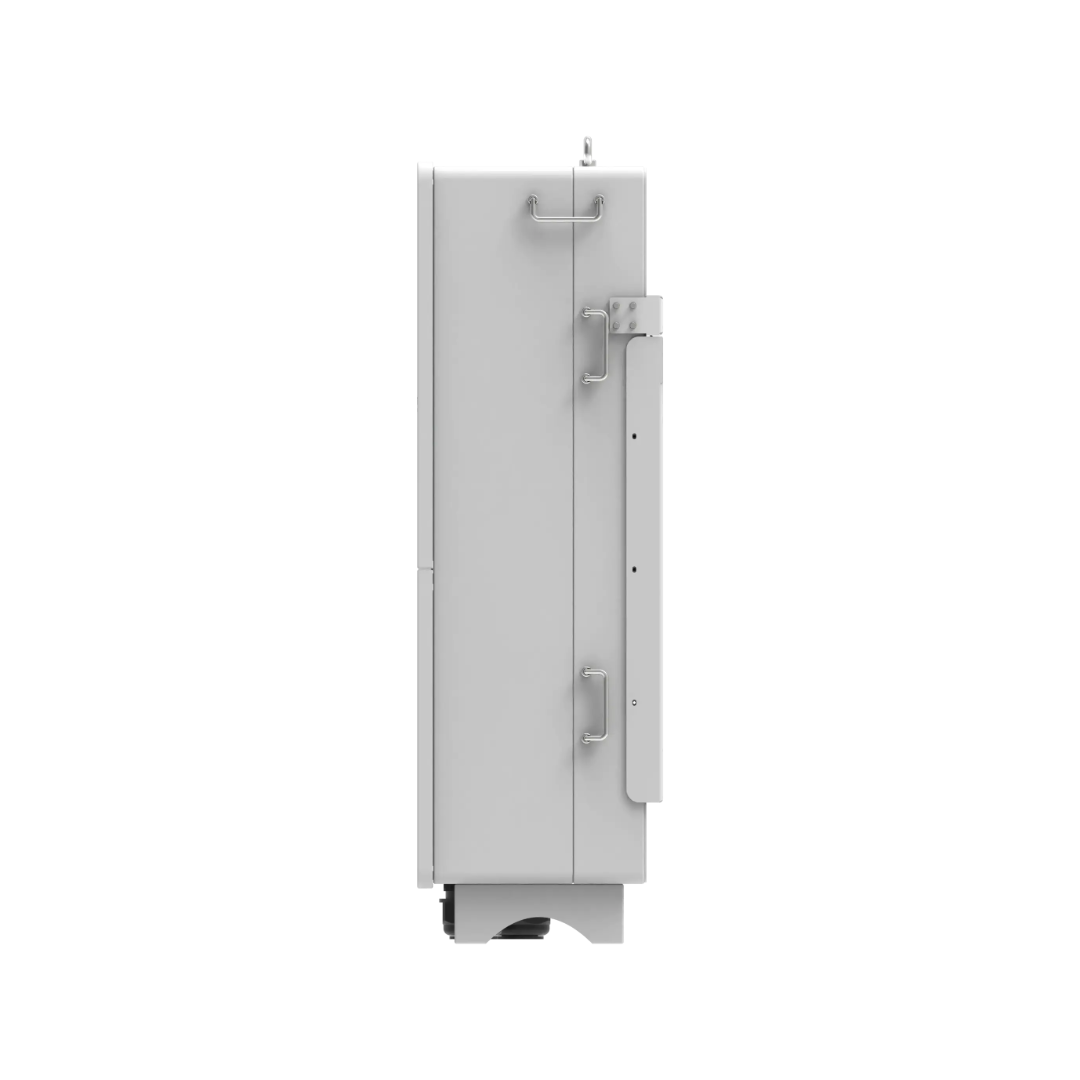

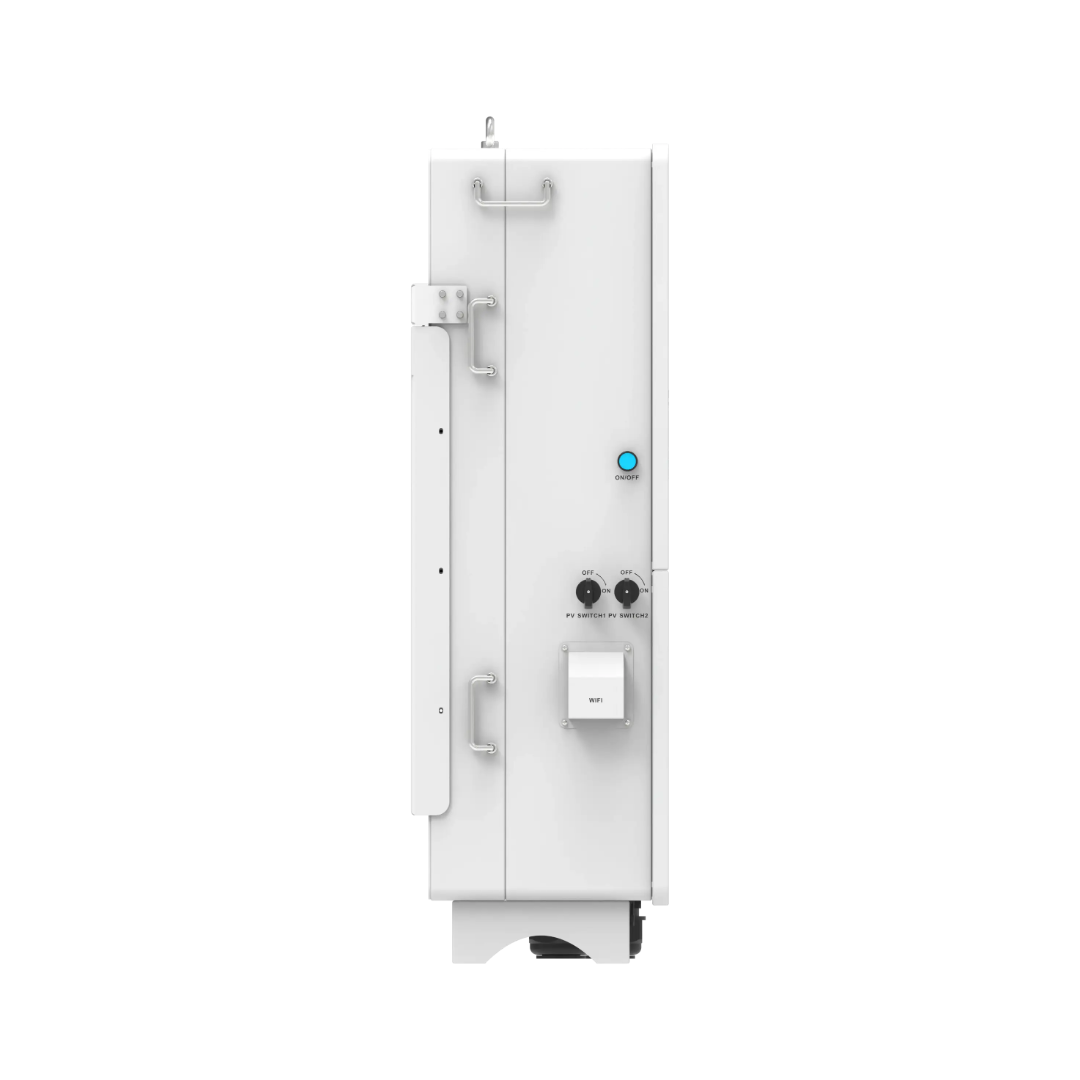

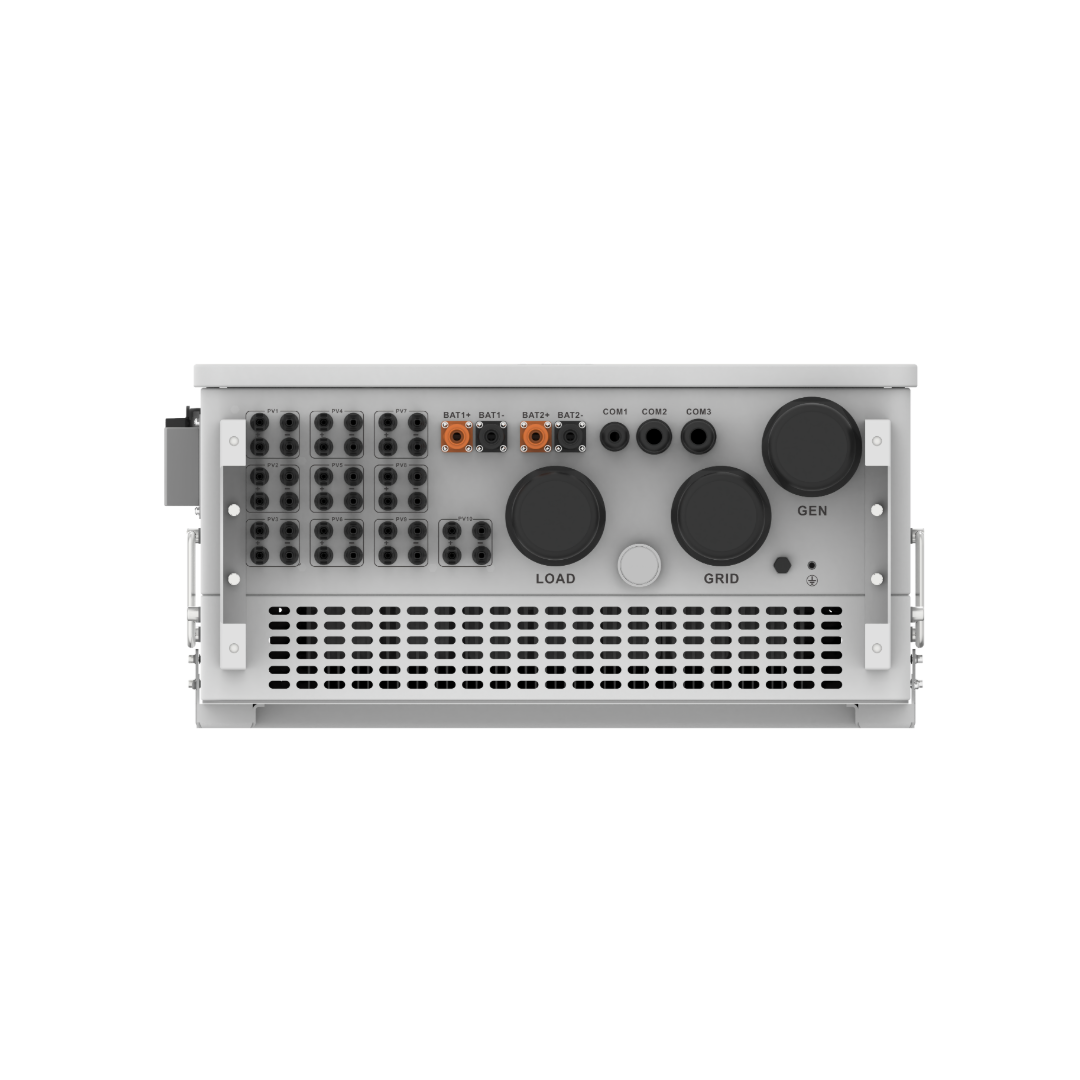

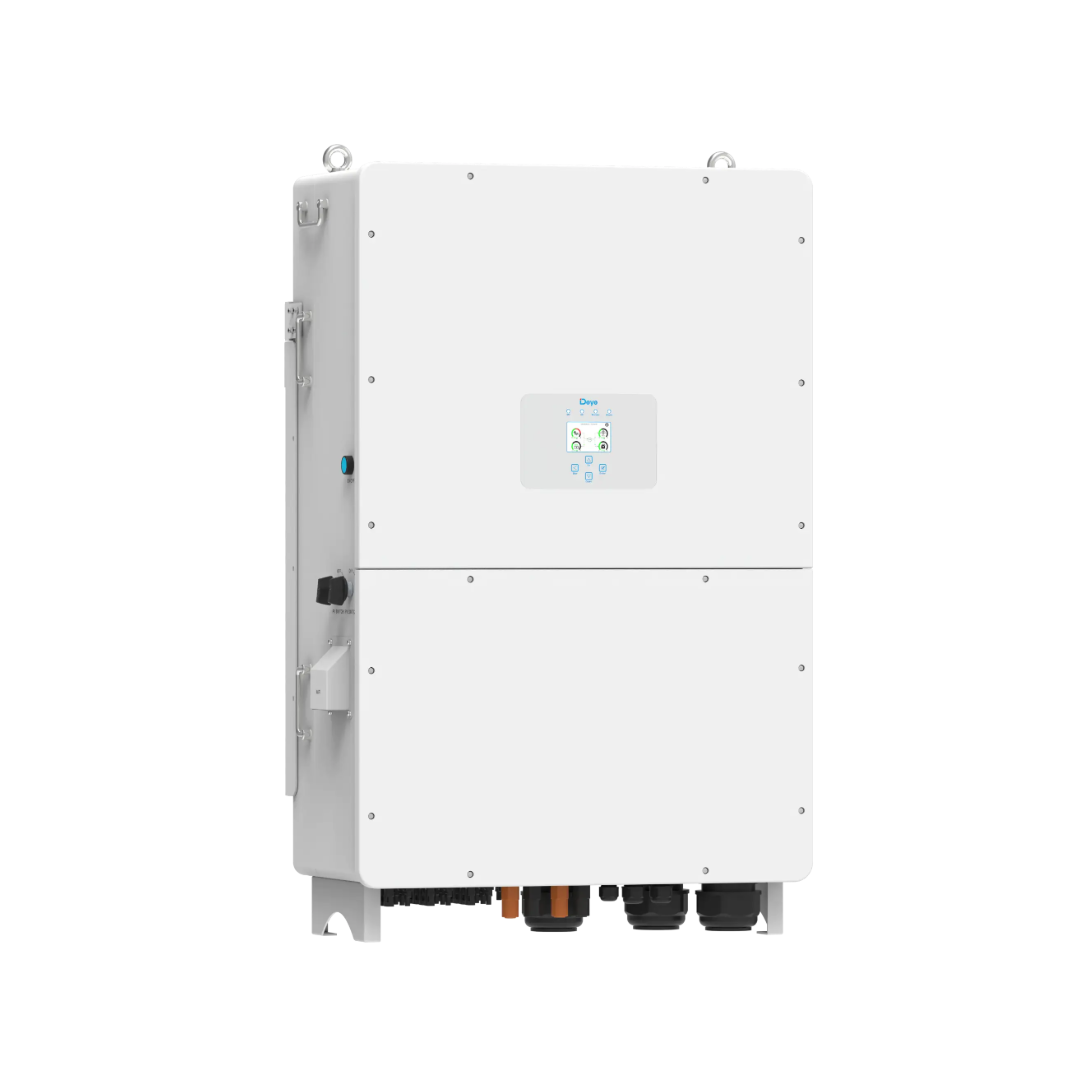

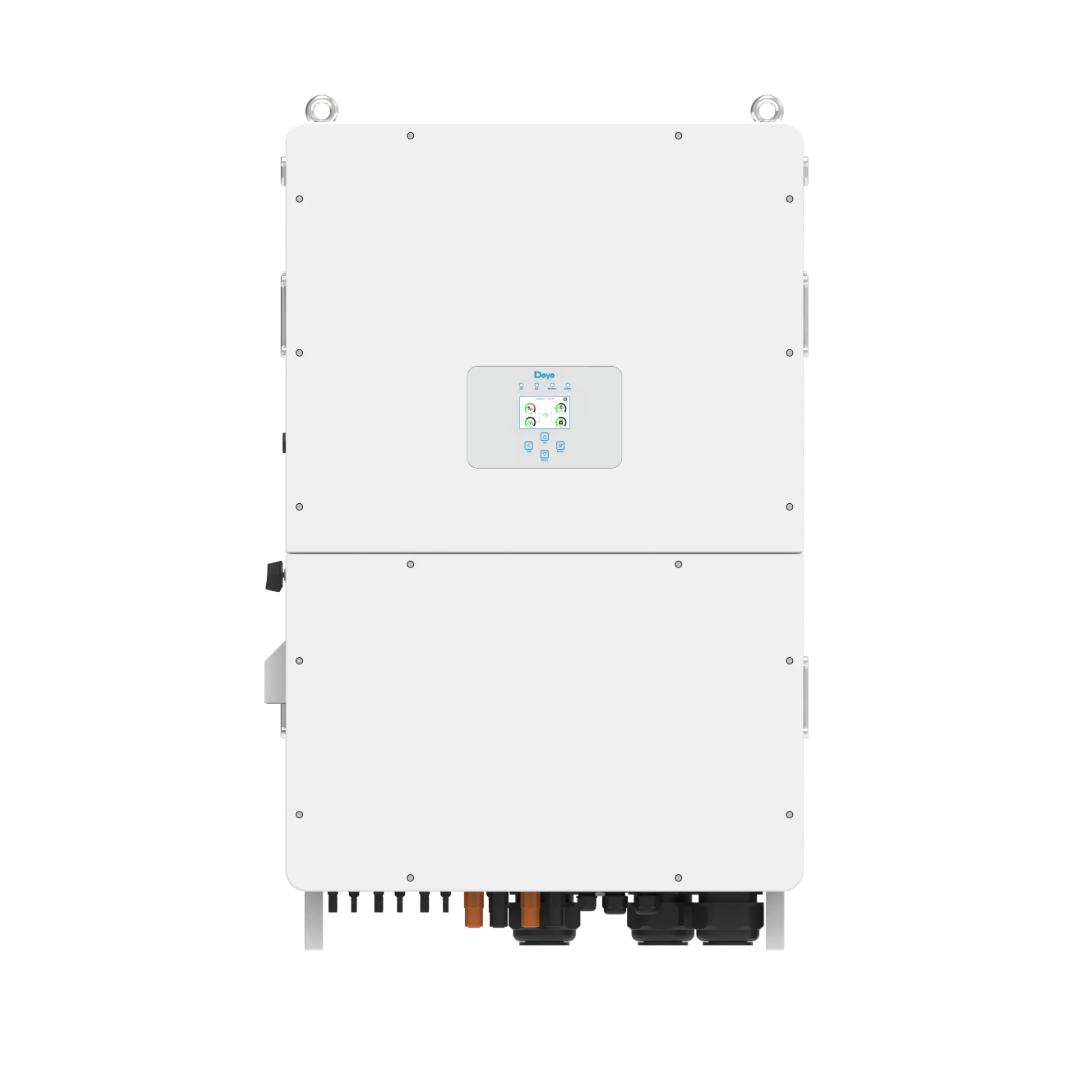

Deye 125kW 3-Phase Hybrid High-Voltage Inverter
Model: SUN-125K-SG02HP3-EU-GM10
Brand: Deye
Type: Three-Phase Hybrid Solar Inverter (High-Voltage Battery Compatible)
Key Features
• High-capacity 125kW output — designed for large commercial and industrial energy systems
• Three-phase hybrid inverter — seamless integration of solar, grid, and battery storage
• High-voltage battery support — compatible with advanced lithium-ion HV battery systems
• Dual battery inputs — enhanced flexibility for large-scale storage configurations
• 10 MPPT trackers — maximised solar harvesting across complex PV array layouts
• Wide PV input range — supports high-voltage strings for efficient system design
• Intelligent energy management — optimises self-consumption and grid interaction
• UPS functionality — seamless switchover during grid outages
• Parallel capability — scalable for multi-inverter installations
• Advanced monitoring — supports RS485, CAN, WiFi, LAN, Bluetooth, and 4G (optional)
• Industrial-grade protection — comprehensive safety and fault detection systems
• IP65-rated enclosure — suitable for outdoor and harsh environmental conditions
Specifications
Battery Input
| Specification | Details |
|---|---|
| Battery Type | Lithium-ion |
| Battery Voltage Range | 160 – 1000 V |
| Max Charge/Discharge Current | 100 + 100 A |
| Battery Inputs | 2 |
| Charging Strategy | Self-adaptive to BMS |
PV Input
| Specification | Details |
|---|---|
| Max PV Access Power | 250,000 W |
| Max PV Input Power | 200,000 W |
| Max PV Input Voltage | 1000 V |
| Start-up Voltage | 180 V |
| MPPT Voltage Range | 150 – 850 V |
| Rated PV Input Voltage | 650 V |
| Max Operating Current | 42 × 10 MPPT |
| Max Short-Circuit Current | 63 × 10 |
| MPPT Trackers | 10 (2 strings per MPPT) |
AC Input / Output
| Specification | Details |
|---|---|
| Rated Power | 125,000 W |
| Max Apparent Power | 135,000 VA |
| Rated Current | 189.4 / 181.2 A |
| Max Current | 204.6 / 195.7 A |
| Max AC Passthrough | 250 A |
| Peak Power (Off-grid) | 1.5× rated power (10s) |
| Power Factor | 0.8 leading to 0.8 lagging |
| Voltage | 220/380V, 230/400V (3L+N+PE) |
| Frequency | 50/60 Hz |
| THDi | <3% |
| DC Injection | <0.5% ln |
Efficiency
| Specification | Value |
|---|---|
| Max Efficiency | 98.70% |
| Euro Efficiency | 98.10% |
| MPPT Efficiency | >99% |
Protection Features
• DC reverse polarity protection
• AC output overcurrent protection
• AC overvoltage protection
• Short circuit protection
• Thermal protection
• Anti-islanding protection
• Residual current detection
• Insulation impedance detection
• DC component monitoring
• Optional Arc Fault Circuit Interrupter (AFCI)
• Surge protection: Type II (DC & AC)
General Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to +60°C (>45°C derating) |
| Humidity | 0 – 100% |
| Altitude | Up to 3000 m |
| Noise Level | ≤ 65 dB |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Topology | Non-Isolated |
| Dimensions (W×H×D) | 734 × 1091 × 344 mm |
| Weight | 161.7 kg |
Communication & Monitoring
• Interfaces: RS485 / RS232 / CAN
• Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional)
• Display: LCD + LED
Compliance & Standards
• Grid Standards: IEC 61727, IEC 62116, EN 50549, NRS 097, G99, VDE-AR-N 4105
• Safety & EMC: IEC/EN 62109-1/2, IEC/EN 61000-6 series
Applications
• Commercial and industrial solar systems
• Large-scale hybrid energy storage systems
• Factories and warehouses
• Shopping centres and office parks
• Grid-tied and off-grid hybrid installations
Quality & Support
The Deye 125kW hybrid inverter is engineered for high-performance commercial energy systems, delivering exceptional efficiency, scalability, and advanced protection features—making it a reliable backbone for large-scale solar and storage installations.
