⚡Deye 10kW Hybrid Inverter 1-Phase Low Voltage (3rd Generation)
Model: SUN-10K-SG06LP1-EU-CM3
Brand: Deye
Type: Single-Phase Low-Voltage Hybrid Solar Inverter (3rd Generation)
⚡ Key Features
- 10kW single-phase hybrid inverter designed for high-performance residential and light commercial solar energy systems.
- Supports low-voltage 48V lithium-ion and lead-acid battery systems.
- High-efficiency hybrid operation with up to 97.6% maximum efficiency and over 99% MPPT efficiency.
- AC coupling capability allows easy battery integration into existing grid-tied solar installations.
- Maximum battery charge/discharge current of 220A for rapid battery charging and high backup power performance.

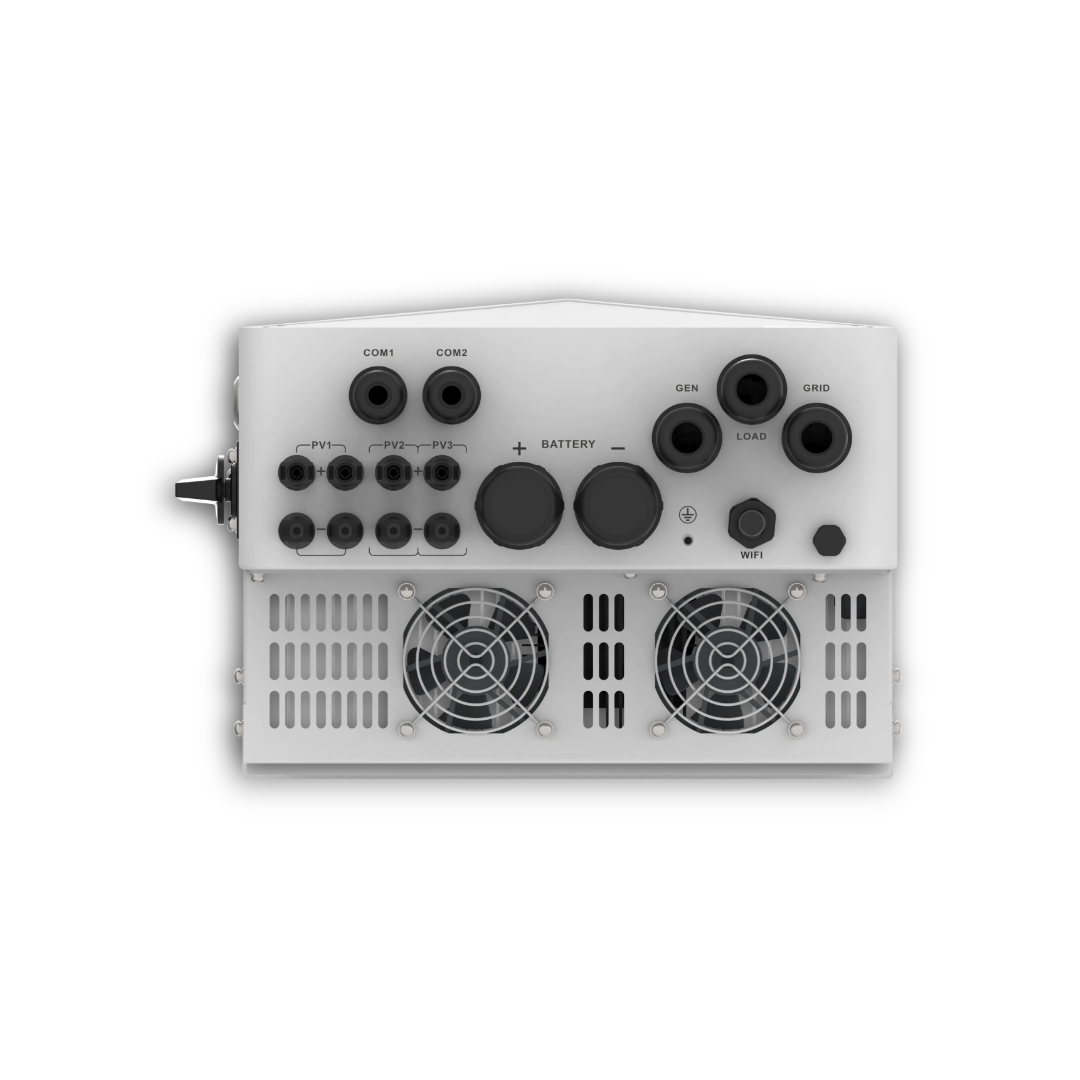

- Three independent MPPT trackers maximize solar generation across multiple roof orientations.
- Supports up to 20,000W of PV input power for oversized solar arrays and increased energy harvesting.
- Intelligent energy management with 6 programmable battery charging and discharging time periods.
- Supports battery charging from solar, grid, or diesel generators for maximum flexibility.
- Parallel operation of up to 16 inverters for scalable on-grid and off-grid energy systems.

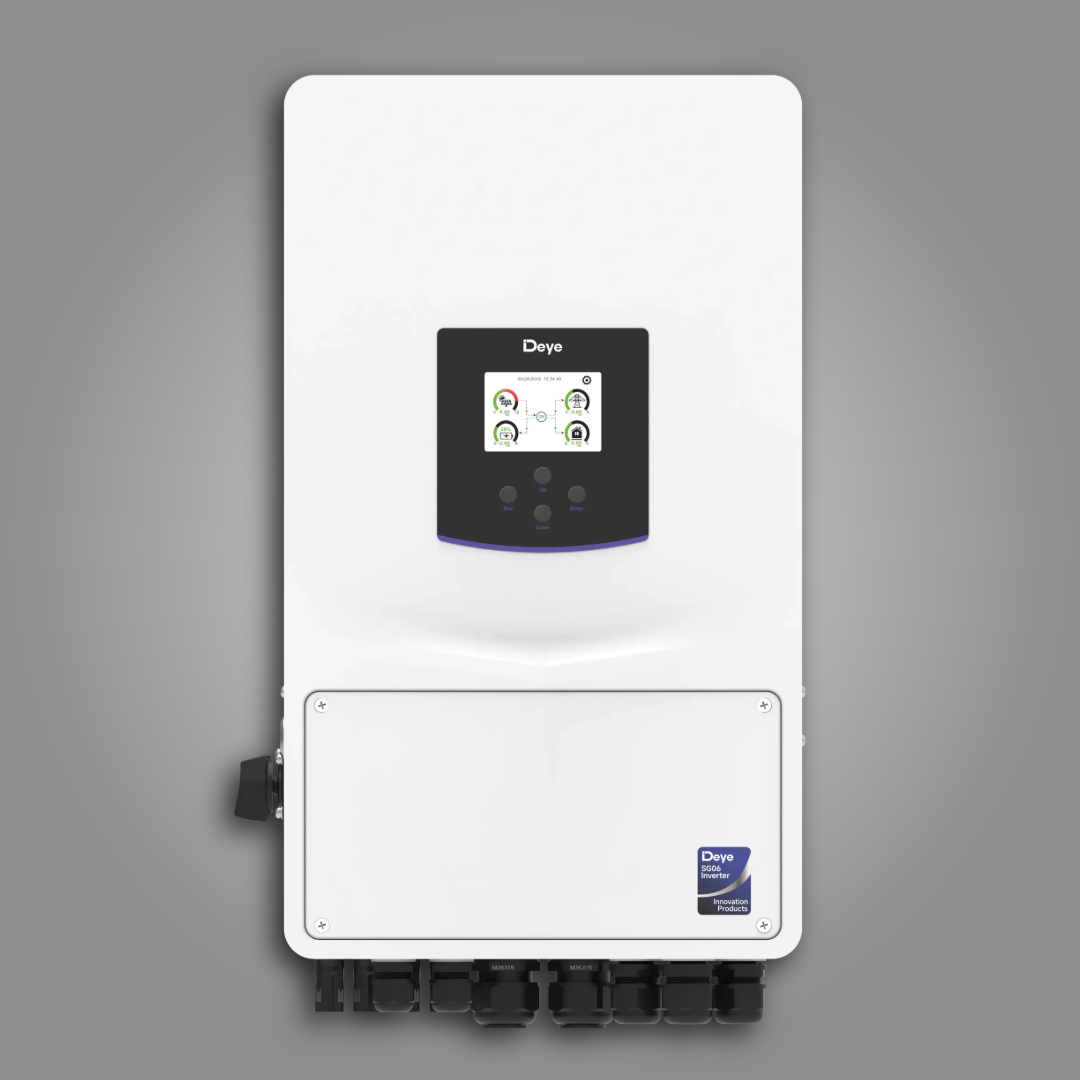

- Colour touch LCD display provides intuitive system monitoring and configuration.
- Built-in Wi-Fi, CAN, and RS485 communication for remote monitoring and seamless battery integration.
- IP65-rated enclosure suitable for indoor and outdoor installations.
- Intelligent air cooling ensures quiet, efficient, and reliable operation.
- Comprehensive built-in protection including anti-islanding, overvoltage, overcurrent, short-circuit, thermal protection, insulation monitoring, and Type II AC/DC surge protection.
📐 Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 10,000 W |
| Battery Voltage | 40–60 V |
| Battery Type | Lithium-ion / Lead-acid |
| Maximum Charge/Discharge Current | 220 A |
| Number of Battery Inputs | 1 |
| Maximum PV Input Power | 20,000 W |
| Maximum DC Input Power | 16,000 W |
| MPPT Trackers | 3 |
| PV Strings | 2 + 2 + 1 |
| Maximum DC Voltage | 500 V |
| MPPT Voltage Range | 150–425 V |
| Start-up Voltage | 125 V |
| Rated DC Voltage | 370 V |
| Maximum PV Input Current | 36 A + 36 A + 18 A |
| Maximum Short-Circuit Current | 54 A + 54 A + 27 A |
| Rated AC Output Power | 10,000 W |
| Maximum AC Apparent Power | 11,000 VA |
| Rated AC Voltage | 220 / 230 V |
| Grid Frequency | 50 / 60 Hz |
| Maximum Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | >99% |
📏 Physical Specifications
| Specification | Details |
| Dimensions (W × H × D) | 340 × 580 × 234 mm |
| Weight | Approximately 24.9 kg |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Noise Level | <45 dB |
🔧 Technical & Build
| Specification | Details |
| Inverter Type | Single-Phase Hybrid Inverter |
| Battery Compatibility | 48V Lithium-ion & Lead-acid |
| AC Coupling | Supported |
| Parallel Operation | Up to 16 Units |
| Battery Communication | CAN / RS485 |
| Remote Monitoring | Wi-Fi |
| Display | Colour Touch LCD |
| Cooling | Intelligent Air Cooling |
| Operating Temperature | -40°C to +60°C (Derating Above 45°C) |
| Maximum Altitude | 3000 m |
| Humidity | 0–100% RH |
| Protection | DC Reverse Polarity, AC Overcurrent, AC Overvoltage, Short Circuit, Thermal Protection, Anti-Islanding, Insulation Monitoring, Residual Current Detection, Type II AC/DC Surge Protection |
ℹ️ Additional Information
The Deye SUN-10K-SG06LP1-EU-CM3 is a third-generation low-voltage hybrid inverter designed to maximize energy independence for residential and light commercial installations. With three MPPT trackers, support for large PV arrays, and an impressive 220A battery charge/discharge capability, it efficiently manages power from solar panels, batteries, the utility grid, and optional diesel generators.
Its advanced hybrid functionality, AC coupling support, parallel operation of up to 16 units, and intelligent battery communication make it ideal for new installations, battery retrofits, backup power systems, and off-grid applications.
🏷️ Quality & Support
The Deye 10kW Hybrid Inverter 1-Phase Low Voltage (3rd Generation) delivers industry-leading efficiency, intelligent energy management, and exceptional installation flexibility. Designed for seamless compatibility with Deye low-voltage batteries and other supported lithium battery systems, it provides reliable long-term performance backed by Deye's comprehensive manufacturer warranty.
