Deye 10kW Hybrid Inverter 1P (LV)
Couldn't load pickup availability

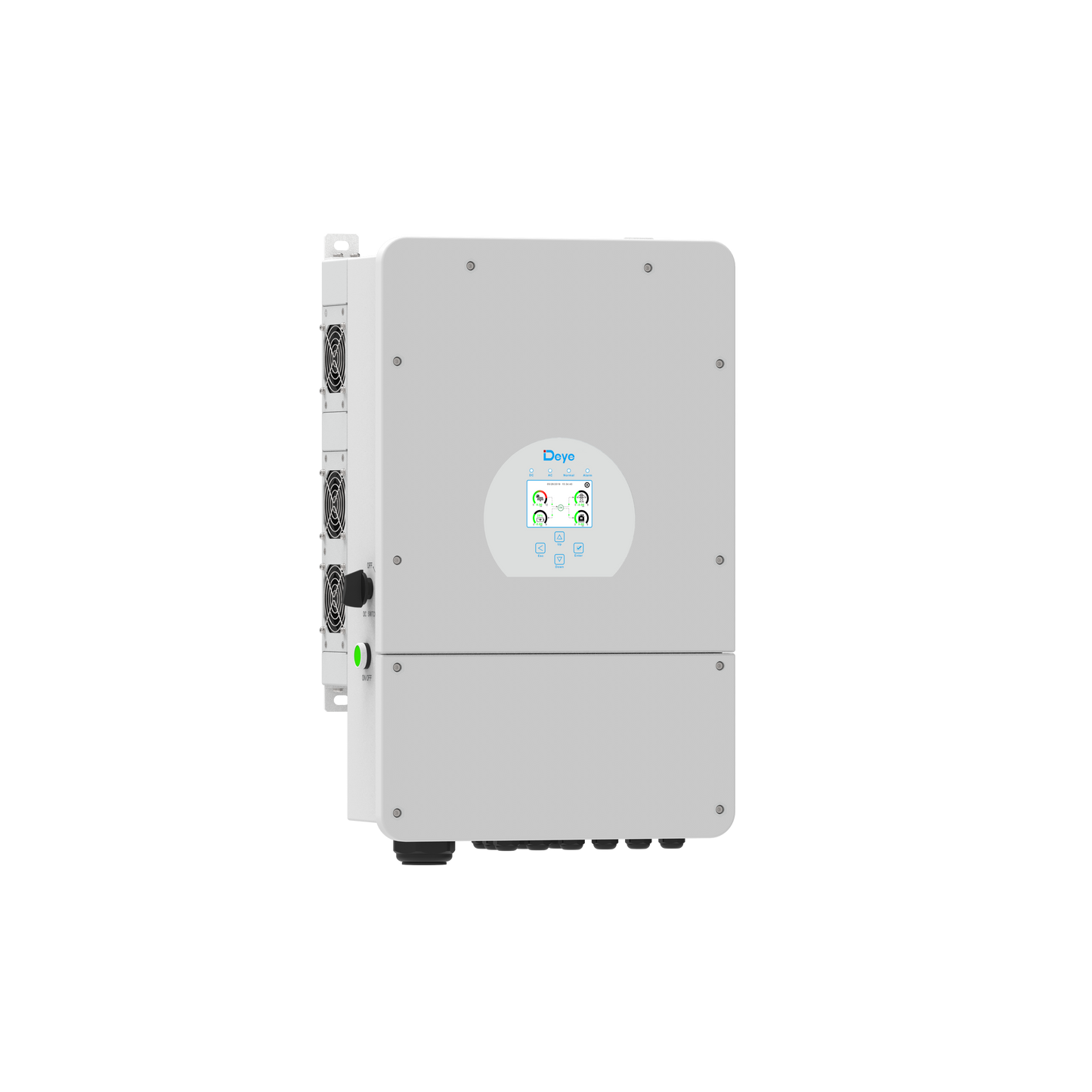

🔌 Deye 10kW 1P Hybrid Inverter (SUN-10K-SG02LP1-EU-AM3-P)
Model: SUN-10K-SG02LP1-EU-AM3-P
Brand: Deye
Type: Single-Phase Hybrid Inverter (Solar + Battery + Grid)
⚡ Key Features
-
10 kW rated AC output — ideal for residential PV systems with battery storage support.
-
Hybrid functionality: integrates solar generation with batteries and the utility grid for self-consumption and backup.
-
Dual MPPT (Maximum Power Point Tracking) inputs for optimizing multiple solar string orientations.
-
Supports low-voltage battery systems (approx. 40-60 V) with high charge/discharge current capability.
-
Outdoor-rated housing (IP65) for durability and weather protection; includes smart monitoring via WiFi or LAN.
-
Expandable: supports parallel operation of up to 16 units for larger system scalability.
-
Long warranty option: up to 10 years support when installed following manufacturer guidelines.
📐 Specifications
| Specification | Value |
|---|---|
| Model | SUN-10K-SG02LP1-EU-AM3-P |
| Rated AC Output Power | 10 kW (single-phase) |
| MPPT Trackers | 2 (or 3 depending on variant) |
| Battery Voltage Range | 40-60 V |
| Maximum Battery Charge/Discharge Current | Up to approx. 220-250 A |
| PV Input Voltage Range | Up to ~500-600 V max |
| Efficiency (Max) | Up to ~97.6 % |
| Protection Rating | IP65 |
| Parallel Units Supported | Up to 16 units |
| Dimensions (approx.) | 420 × 670 × 233 mm |
| Weight (approx.) | ~35.6 kg |
| Warranty | Up to 10 years (limited) |
🏷️ Quality & Support
Deye is a well-established inverter manufacturer, offering hybrid systems that enable solar, battery and grid integration in one unit. This model is designed for modern home energy systems, offering high efficiency, smart features and scalable architecture backed by strong warranty support.
