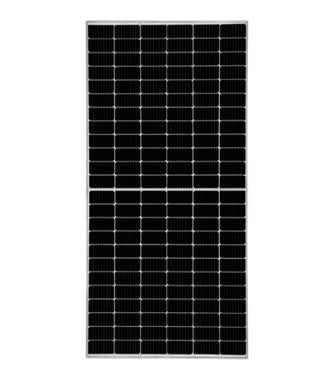

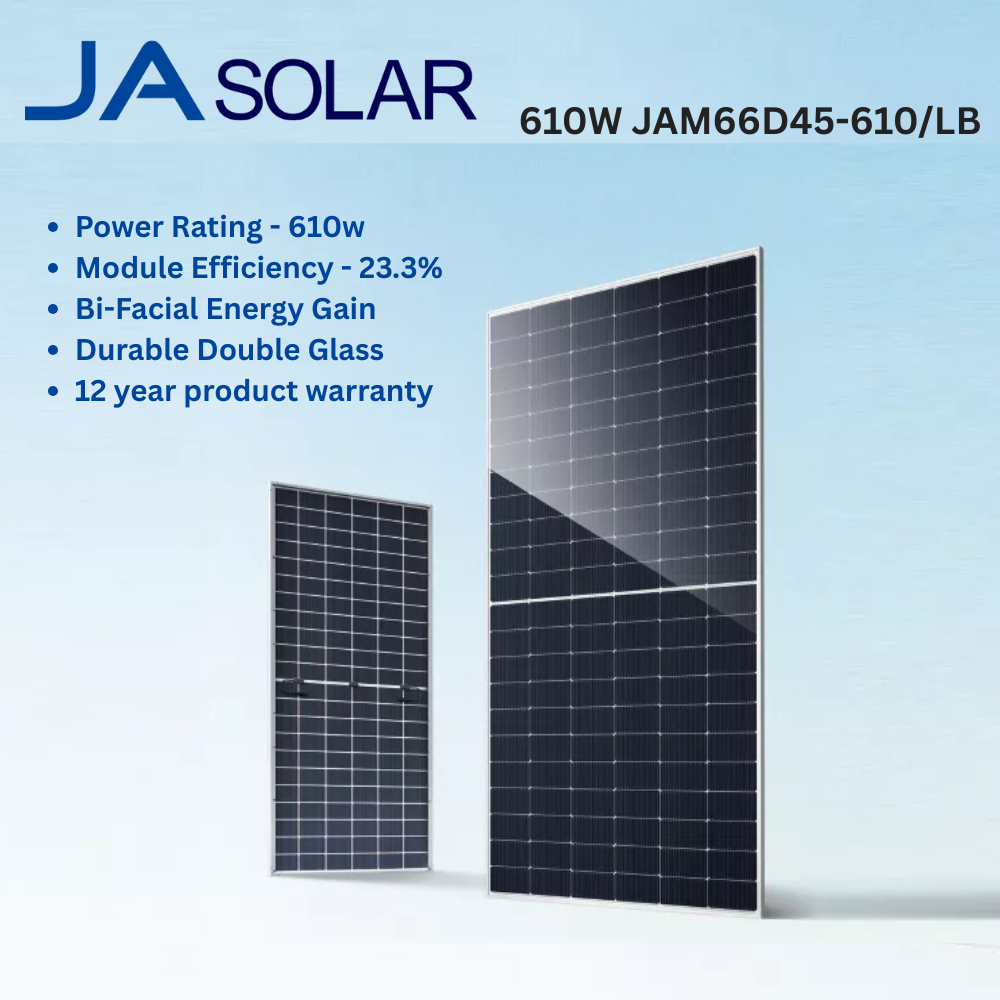

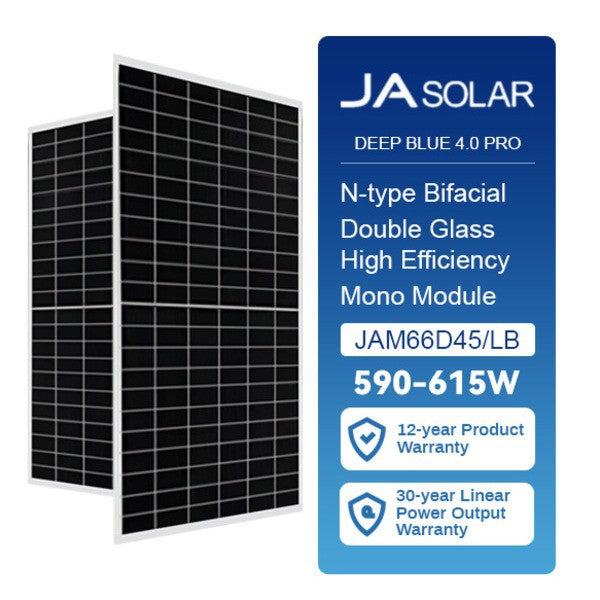

🌞 JA Solar 610 W Bifacial (Double Glass) N-Type Solar Panel
Model: JAM66D45-610/LB
Brand: JA Solar
⚡ Key Features
High Power Output
Delivers up to 610 W of rated power with module efficiency reaching 23.3% for superior system yield and space utilization.
N-Type TOPCon Cell Technology
Advanced N-type TOPCon cells ensure lower degradation, higher reliability, and improved performance in high-temperature and low-light conditions.
Bifacial Energy Gain
Double-glass construction captures light from both front and back surfaces, achieving higher total energy generation and lower Levelized Cost of Energy (LCOE).
Durable Double-Glass Design
2.0 mm tempered glass on both sides enhances mechanical strength, minimizes micro-cracks, and provides superior moisture and corrosion resistance.
Optimized for Harsh Environments
Withstands snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring reliable operation even in extreme weather conditions.
Long-Term Assurance
Backed by JA Solar’s 12-year product warranty and 30-year linear power output warranty, guaranteeing 87.4% power retention after 30 years.
🧾 Specifications
| Category | Value |
|---|---|
| Model | JAM66D45-610/LB |
| Cell Type | N-Type TOPCon Monocrystalline |
| Rated Power | 610 W |
| Module Efficiency | Up to 23.3 % |
| Bifacial Gain | Up to 85 % (rear side contribution) |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.1 kg |
| Cell Configuration | 132 cells (6 × 22 layout) |
| Temperature Coefficient (Pmax) | −0.29 % / °C |
| Operating Temperature | −40 °C to +85 °C |
| Maximum System Voltage | 1500 V DC |
| Mechanical Load | Snow 5400 Pa / Wind 2400 Pa |
| Front / Back Glass | 2.0 mm + 2.0 mm tempered glass |
| Junction Box | IP68, 3 bypass diodes |
| Certifications | IEC 61215 / IEC 61730 / UL 61215 / ISO 9001 / ISO 14001 / ISO 45001 |
| Warranty | 12-year product / 30-year linear power output |
- Spec Sheet
🏷️ Quality & Authentication
Each module includes a factory barcode and traceable serial for product authentication and warranty validation through JA Solar’s official support channels.
All modules undergo rigorous performance and reliability testing to meet global IEC and UL standards, ensuring consistent quality and long-term value.
