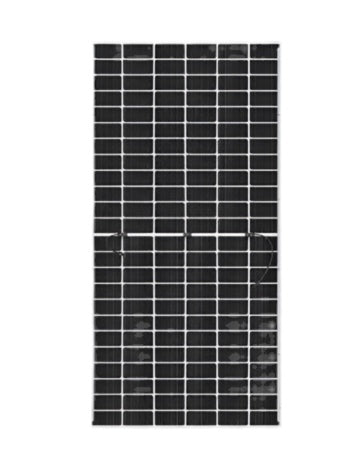

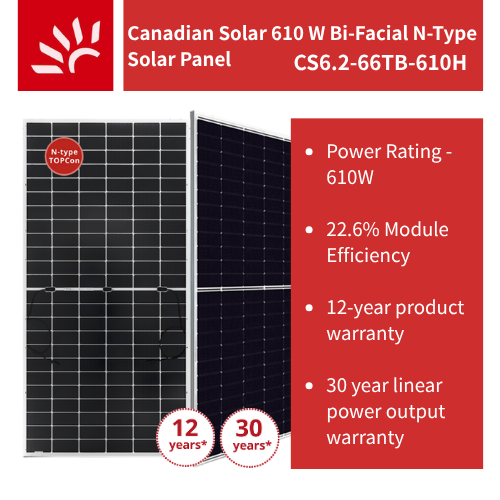

Canadian Solar Panel 610W Bi-Facial (Double Glass) N-Type

🌞 Canadian Solar 610W Bi-Facial (Double Glass) N-Type Solar Panel

Model: CS6.2-66TB-610H
Brand: Canadian Solar
Cell Type: N-Type TOPCon
Technology: Bifacial, Double Glass
Power Output: 610W (up to 732W with 20% bifacial gain)
Module Efficiency: Up to 22.6% (front side); up to 27.1% with bifacial enhancement
Temperature Coefficient (Pmax): −0.34%/°C
Operating Temperature: −40°C to +85°C
Dimensions: 2384 × 1303 × 35 mm
Weight: 31.4 kg
Mechanical Load: Snow: 5400 Pa / Wind: 2400 Pa
Certifications: IEC 61215 / IEC 61730 / UL 61730 / IEC 61701 / IEC 62716
Warranty: 12-year product / 30-year linear power output
Max. System Voltage: 1500 V (IEC)
Frame: Anodized Aluminum Alloy
Front Cover: 3.2 mm Tempered Glass
Junction Box: IP68, 3 bypass diodes
Connector Type: MC4-EVO2 or equivalent

⚡ Key Features

• High Power Output: Module power up to 610W with module efficiency reaching 22.6% for superior system performance.

• Bifacial Technology: Up to 85% power bifaciality, generating additional power from the back side for increased overall energy yield.

• Enhanced Reliability: Excellent anti-LeTID and anti-PID performance for long-term stability.

• Optimized for Hot Climates: Lower temperature coefficient (Pmax) of −0.34%/°C delivers more energy under high-temperature conditions.

• Durable Design: Built to withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring reliable performance in extreme weather.

• High Energy Yield: Designed for large-scale installations with reduced Levelized Cost of Energy (LCOE).

🧾 Technical Specifications

Canadian Solar Panel 610W Bi-Facial Spec Sheet

Information on TOPCon Technology

🏷️ Quality & Authentication

• Supplied with warranty-linked barcodes for traceability and authenticity.

• Authentication and warranty queries can be sent to:
  📧 support@canadiansolar.com
  📧 service@canadiansolar.com
