Canadian Solar Panel 545W Mono

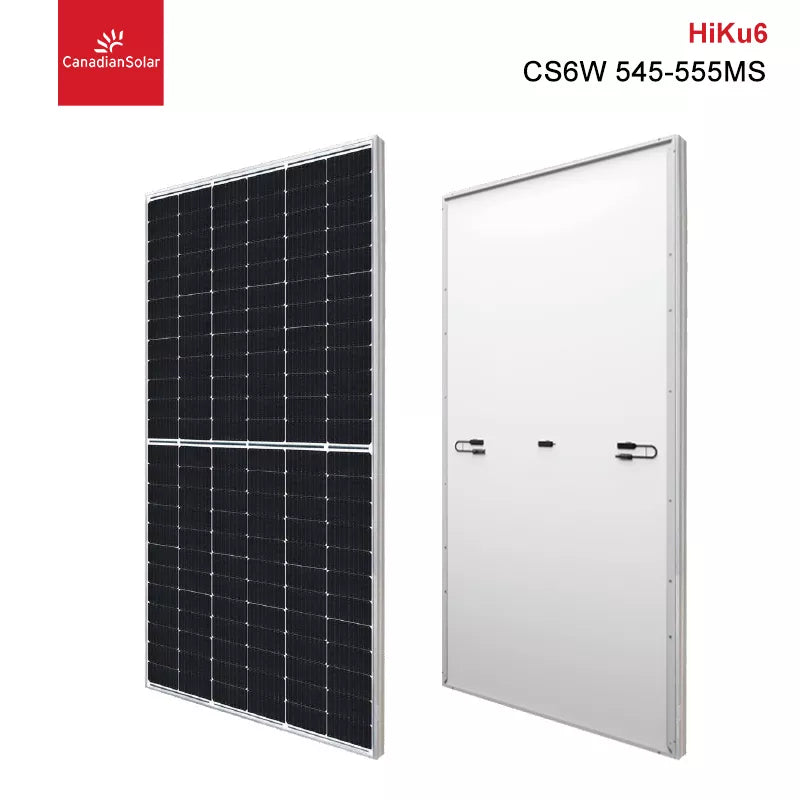

🌞 Canadian Solar HiKu6 545W Mono PERC Solar Panel

Model: CS6W-545MS
Brand: Canadian Solar
Cell Type: Monocrystalline PERC
Technology: Dual Cell
Power Output: 545W
Module Efficiency: Up to 21.3%
Temperature Coefficient (Pmax): −0.29%/°C
Operating Temperature: −40°C to +85°C
Dimensions: 2261 × 1134 × 35 mm
Weight: 28.4 kg
Mechanical Load: Snow: 5400 Pa / Wind: 2400 Pa
Certifications: IEC 61215 / IEC 61730
Warranty: 12-year product / 30-year linear power output
Max. System Voltage: 1500 V (IEC/UL)
Frame: Anodized Aluminum Alloy
Front Cover: 3.2 mm Tempered Glass
Junction Box: IP68, 3 bypass diodes
Connector Type: MC4-EVO2 or equivalent

⚡ Key Features

• High Power Output: Module power up to 545W with module efficiency reaching 21.3% for superior system performance.

• Dual Cell PERC Technology: Utilizes 182 mm wafer + 156/144 dual cell PERC technology for enhanced energy yield.

• Enhanced Reliability: Excellent anti-LeTID and anti-PID performance for long-term stability.

• Low Temperature Coefficient: Lower temperature coefficient (Pmax) of −0.29%/°C delivers more energy under high-temperature conditions.

• Durable Design: Built to withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, ensuring reliable performance in extreme weather.

• High Energy Yield: Designed for large-scale installations with reduced Levelized Cost of Energy (LCOE).

🧾 Technical Specifications

🏷️ Quality & Authentication

• Supplied with warranty-linked barcodes for traceability and authenticity.

• Authentication and warranty queries can be sent to:
  📧 support@canadiansolar.com
  📧 service@canadiansolar.com
