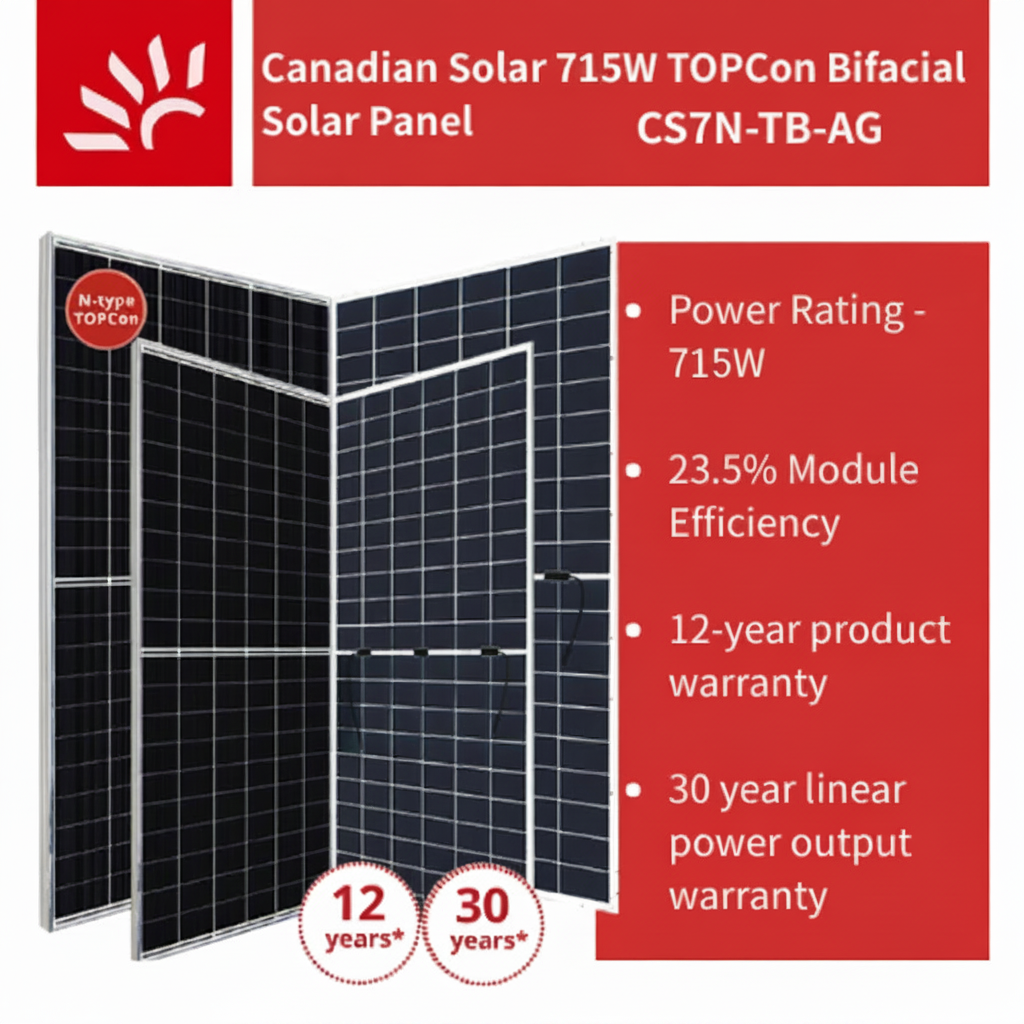

☀️ Canadian Solar 715W TOPCon Bifacial Double-Glass Solar Panel
Brand: Canadian Solar
Model: CS7N-715TB-AG
Series: TOPBiHiKu7
Technology: N-Type TOPCon
Type: Bifacial Monocrystalline Double-Glass Solar Panel
Rated Power: 715W
Module Efficiency: 23.0%
⚡ Key Features
• 715W high-power output — delivers excellent generation capacity for residential, commercial and utility-scale solar systems
• N-Type TOPCon technology — provides high efficiency, strong energy yield and low power degradation
• Bifacial power generation — captures additional sunlight from the rear side of the module
• Up to 85% power bifaciality — increases energy production where suitable mounting and ground conditions allow
• 23.0% module efficiency — high conversion efficiency for maximising available roof or installation space
• Lower temperature coefficient — Pmax temperature coefficient of -0.29%/°C helps maintain performance in hot climates
• Excellent anti-LeTID and anti-PID performance — designed for reliable long-term operation
• Double-glass construction — 2.0mm heat-strengthened glass on both front and rear sides
• High mechanical load resistance — supports up to 5400Pa front snow load and 2400Pa rear wind load
• Minimised micro-crack impact — robust module design helps maintain long-term performance
• 1500V system voltage — suitable for high-voltage solar system designs
• 30-year linear power warranty — long-term power performance with degradation limited to 1% in the first year and 0.4% annually thereafter
📊 Electrical Specifications — STC
| Specification | CS7N-715TB-AG |
|---|---|
| Rated Maximum Power (Pmax) | 715W |
| Module Efficiency | 23.0% |
| Voltage at Maximum Power (Vmp) | 40.6V |
| Current at Maximum Power (Imp) | 17.63A |
| Open Circuit Voltage (Voc) | 48.5V |
| Short Circuit Current (Isc) | 18.64A |
| Power Tolerance | 0 ~ +10W |
| Power Bifaciality | 80% ±5% |
STC: 1000W/m² irradiance, AM 1.5 spectrum and 25°C cell temperature.
🔋 Bifacial Performance
| Rear-Side Bifacial Gain | Equivalent Pmax | Module Efficiency |
|---|---|---|
| Front Only | 715W | 23.0% |
| +5% | 751W | 24.2% |
| +10% | 787W | 25.3% |
| +20% | 858W | 27.6% |
Bifacial gain depends on installation conditions including mounting structure, height, tilt angle and ground albedo.
🌡️ NMOT Electrical Performance
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 541W |
| Operating Voltage (Vmp) | 40.6V |
| Operating Current (Imp) | 14.09A |
| Open Circuit Voltage (Voc) | 48.5V |
| Short Circuit Current (Isc) | 18.64A |
NMOT conditions: 800W/m² irradiance, AM 1.5 spectrum, 20°C ambient temperature and 1m/s wind speed.
🛠️ Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Technology | N-Type TOPCon |
| Cell Arrangement | 132 cells — 2 × (11 × 6) |
| Module Dimensions | 2384 × 1303 × 33mm |
| Weight | 37.8kg |
| Front Glass | 2.0mm heat-strengthened glass with anti-reflective coating |
| Rear Glass | 2.0mm heat-strengthened glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68, 3 bypass diodes |
| Cable | 4.0mm² IEC / 12 AWG UL |
| Cable Length | 360mm (+) / 200mm (-) |
| Connector | T6 or MC4-EVO2A |
| Modules per Pallet | 33 |
| Modules per 40' HQ Container | 594 |
🌡️ Temperature & Operating Specifications
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Pmax Temperature Coefficient | -0.29%/°C |
| Voc Temperature Coefficient | -0.25%/°C |
| Isc Temperature Coefficient | +0.05%/°C |
| Nominal Module Operating Temperature | 41 ± 3°C |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 35A |
| Protection Class | Class II |
| Module Fire Performance | Type 29 UL 61730 / Class C IEC 61730 |
🏢 Applications
The Canadian Solar CS7N-715TB-AG is suited to:
• Residential solar installations
• Commercial and industrial solar systems
• Large rooftop installations
• Ground-mounted solar projects
• Utility-scale PV installations
• High-power solar arrays where space efficiency is important
• Bifacial installations designed to capture rear-side solar generation
🛡️ Warranty & Long-Term Performance
12-Year Enhanced Product Warranty
Covers materials and workmanship according to the applicable Canadian Solar Limited Warranty Statement.
30-Year Linear Power Performance Warranty
• Maximum first-year degradation: 1%
• Maximum subsequent annual degradation: 0.4%
• Designed for long-term high-energy yield
✅ Certifications & Quality
The module series is associated with a range of international standards and certifications, including:
IEC 61215 • IEC 61730 • UL 61730 • IEC 61701 • IEC 62716 • CE • MCS • UKCA • CGC • CEC • FSEC
Canadian Solar's manufacturing management systems include ISO 9001, ISO 14001, ISO 45001 and IEC 62941 certifications, with specific certifications varying by module type and market.
🏷️ Quality & Support
The Canadian Solar 715W TOPCon Bifacial Double-Glass Solar Panel combines high-power N-Type TOPCon technology with bifacial energy generation and durable double-glass construction. With 715W output, 23.0% efficiency, 80% ±5% bifaciality and a 30-year linear power performance warranty, it is designed for high-yield solar installations where long-term performance and efficient use of available space are important.
