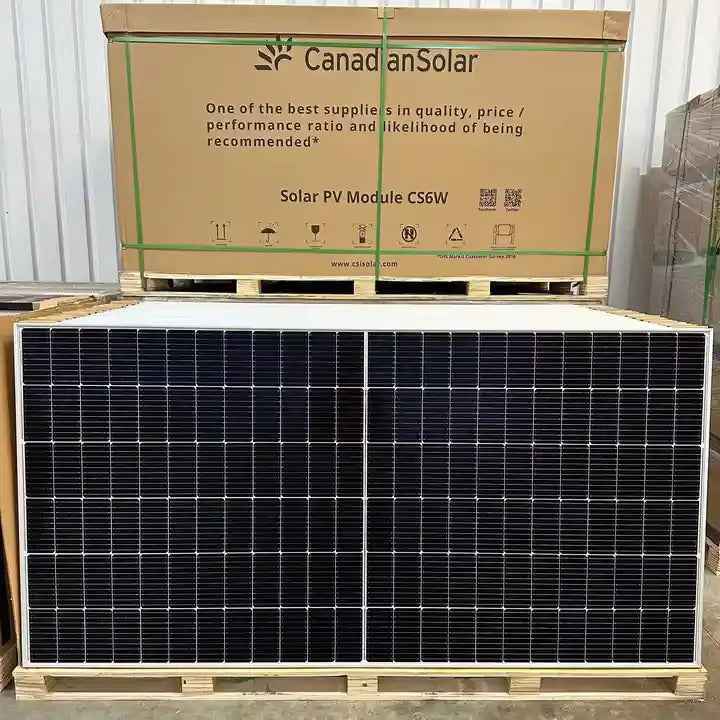

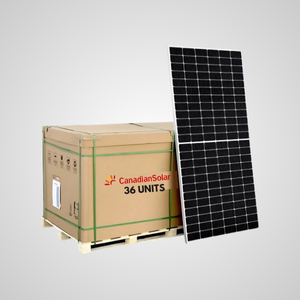

Canadian Solar 620W Bi-Facial (Double Glass) N-Type (Pallet)
Couldn't load pickup availability

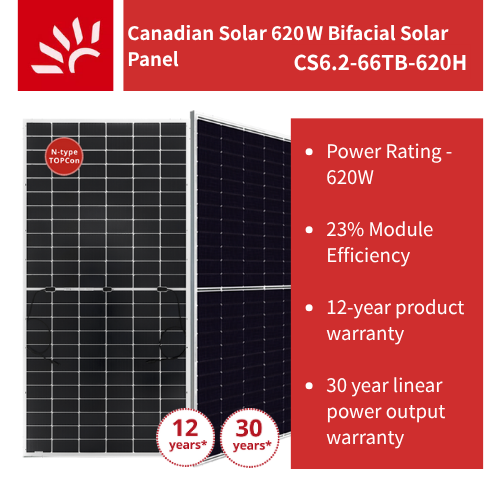

Canadian Solar 620W Bi-Facial Double Glass N-Type
Model: TOPBiHiKu6 / CS6.2-66TB-620
Technology: N-Type TOPCon, Bifacial, Double-Glass
⚡ Electrical Specifications (STC)
| Specification | Value |
|---|---|
| Maximum Power (Pmax) | 620 W |
| Module Efficiency | Up to 23.0 % |
| Voltage at Pmax (Vmp) | 41.2 V |
| Current at Pmax (Imp) | 15.06 A |
| Open-Circuit Voltage (Voc) | 48.4 V |
| Short-Circuit Current (Isc) | 16.08 A |
| Temperature Coefficient (Pmax) | –0.29 % / °C |
🔋 Bifacial Performance
| Specification | Value |
|---|---|
| Rear-Side Bifacial Gain | Up to 85 % |
| Bifacial Technology | N-Type TOPCon cells, dual glass |
🧱 Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Type | N-Type TOPCon Monocrystalline |
| Cell Configuration | 132 cells (2 × 66) |
| Module Dimensions | 2382 × 1134 × 30 mm |
| Weight | ~32.3 kg |
| Glass | 2.0 mm tempered glass (front & back) |
| Frame | Anodized aluminium |
| Junction Box | IP68, 3-diode design |
| Connectors | MC4 / MC4-EVO2 compatible |
| Cable Length | 400–1300 mm (varies by version) |
🌦 Environmental Ratings
| Specification | Value |
|---|---|
| Snow Load | 5400 Pa |
| Wind Load | 2400 Pa |
| Operating Temperature | –40 °C to +85 °C |
| Fire Rating | Class C or Class A |
| Max System Voltage | 1500 V DC |
📉 Degradation & Warranty
| Specification | Value |
|---|---|
| Product Warranty | 12 Years |
| Performance Warranty | 30 Years |
| Annual Power Degradation | ~0.4 % per year after year 1 |
| 1st-Year Degradation | ≤ 1.0 % |
✨ Key Features
-
Ultra-high 620W power class for commercial & utility installations
-
N-Type TOPCon cells provide higher efficiency and lower degradation
-
True bifacial design with up to 85% rear-side gain
-
Double-glass structure for extreme durability and anti-moisture protection
-
Excellent temperature performance for hot climates
-
30-year power output warranty
Information on TOPCon Technology
🏷️ Quality & Authentication
-
Supplied with warranty-linked barcodes for traceability and authenticity.
-
Authentication and warranty queries can be sent to:
