Canadian Solar 615W Bi-Facial(Double Glass) N-Type
Couldn't load pickup availability

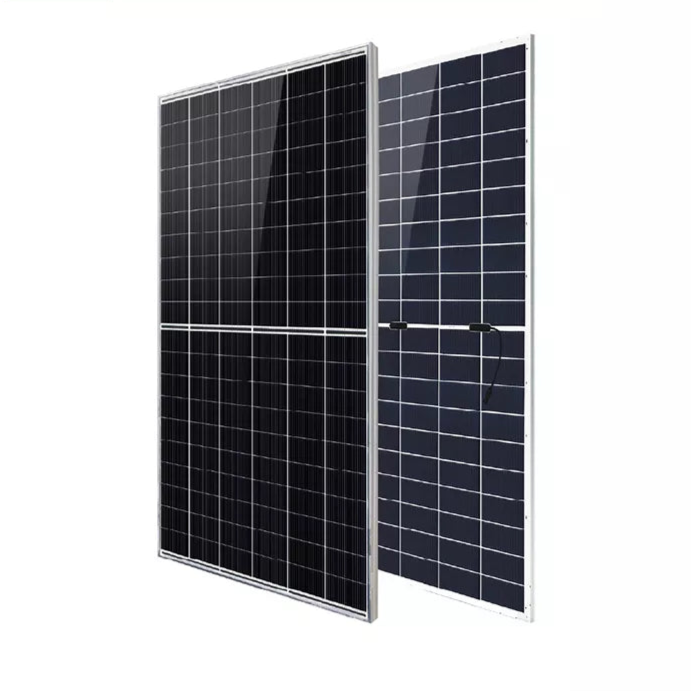

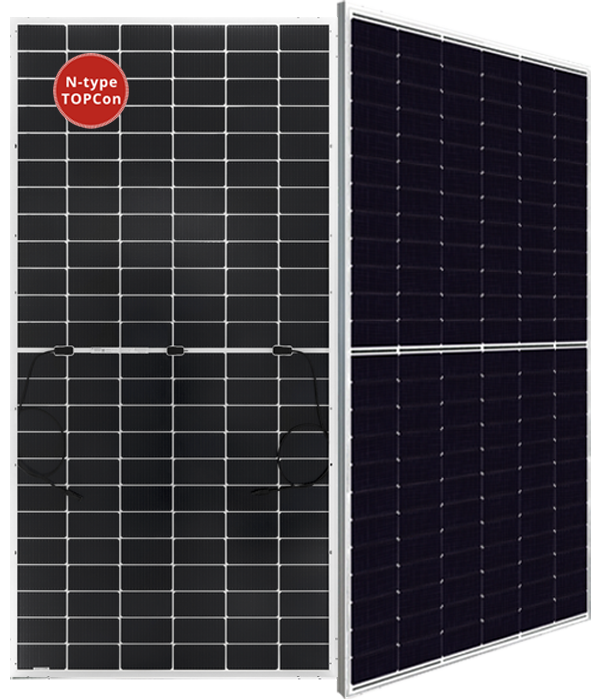

🌞 Canadian Solar 615 W Bi-Facial (Double Glass) N-Type Solar Panel
Model: CS6.2-66TB-615H (TOPBiHiKu6 Series)
Brand: Canadian Solar
⚡ Key Features
High Power Output
Delivers up to 615 W front-side power with module efficiency up to 22.8%, providing outstanding energy generation and system performance.
Bifacial Technology
Generates additional power from the back side—up to 20% bifacial gain for a total effective power output exceeding 730 W under optimal conditions.
N-Type TOPCon Cells
Next-generation N-Type cells provide superior efficiency, reduced degradation, and enhanced long-term stability compared to P-Type technologies.
Durable Double-Glass Design
Robust dual-glass construction improves mechanical strength, weather resistance, and fire safety for long-lasting reliability.
High Reliability & Stability
Excellent anti-LeTID and anti-PID performance, minimizing power loss over the system lifetime.
Optimized for Hot Climates
Low temperature coefficient (Pmax ≈ −0.29%/°C) ensures better performance in high-temperature environments.
🧾 Technical Specifications
| Specification | Value |
|---|---|
| Model | CS6.2-66TB-615H |
| Rated Power | 615 W |
| Module Efficiency | Up to 22.8 % |
| Cell Type | N-Type TOPCon |
| Technology | Bifacial, Double Glass |
| Bifacial Gain | Up to 85 % (≈ 738 W effective) |
| Temperature Coefficient (Pmax) | −0.29 % / °C |
| Operating Temperature | −40 °C to +85 °C |
| Dimensions | 2384 × 1303 × 35 mm |
| Weight | 31.4 kg |
| Mechanical Load | Snow: 5400 Pa / Wind: 2400 Pa |
| Certifications | IEC 61215 / IEC 61730 / UL 61730 / IEC 61701 / IEC 62716 |
| Warranty | 12-year product / 30-year linear power output |
| Max. System Voltage | 1500 V (IEC) |
| Frame | Anodized Aluminum Alloy |
| Front Glass | 3.2 mm tempered glass |
| Junction Box | IP68, 3 bypass diodes |
| Connector Type | MC4-EVO2 or equivalent |
Canadian Solar Panel 615W Bi-Facial Spec Sheet
Information on TOPCon Technology
🏷️ Quality & Authentication
-
Supplied with warranty-linked barcodes for full traceability and authenticity.
-
Barcode authentication and warranty support:
We Don’t Just Beat Quotes — We Build Better Systems.
Our certified installers design each PV setup for maximum performance and long-term reliability. Every installation is backed by full warranty support and genuine spare parts, ensuring your investment delivers power — and peace of mind — for years to come.
