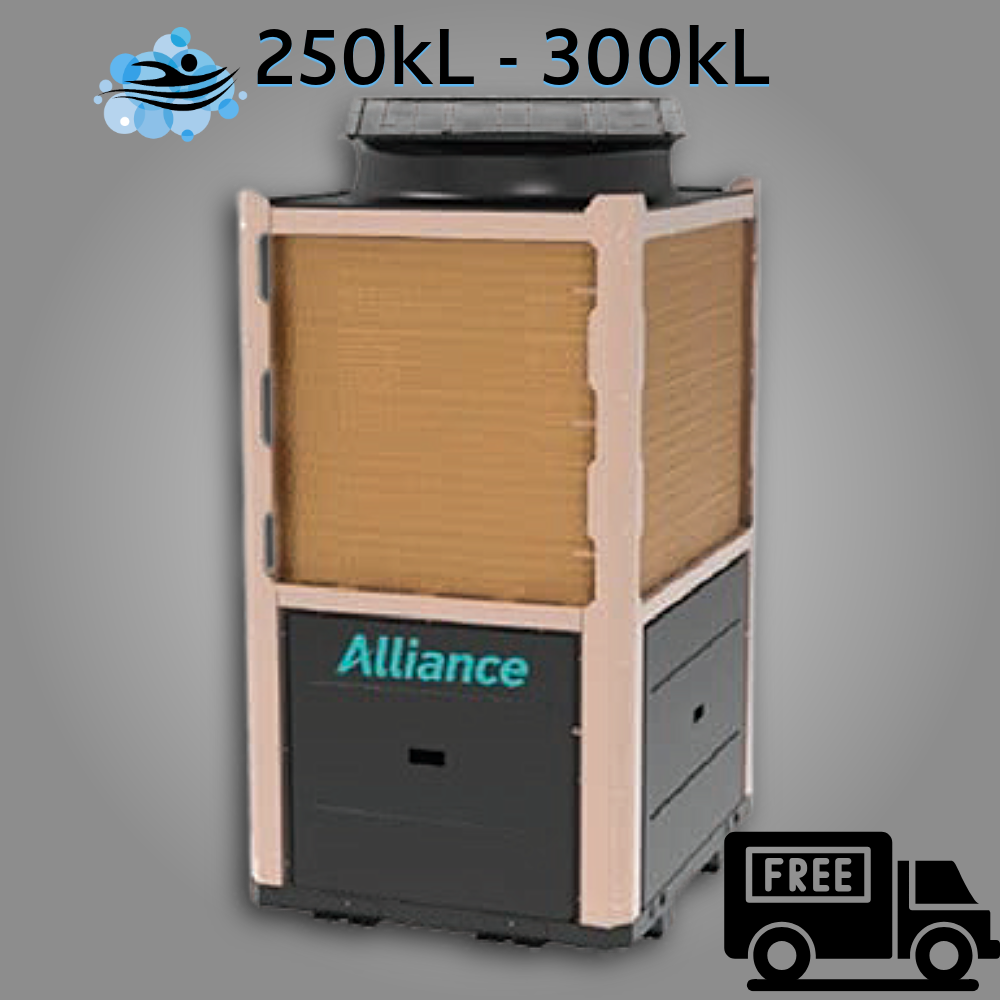

Alliance 78kW R32 Commercial Inverter Swimming Pool Heat Pump
Couldn't load pickup availability
Alliance 78kW R32 Commercial Inverter Swimming Pool Heat Pump
Model: ALLPH780R32-INV
Brand: Alliance
Type: Commercial Inverter Swimming Pool Heat Pump
Heating Capacity: 12.2–78 kW
Refrigerant: R32
Power Supply: 380–415V / 3N~ / 50Hz
Application: Commercial Swimming Pools, Hotels, Gyms & Schools
⚡ Key Features
- 78kW maximum heating capacity for large commercial swimming pools.
- Full inverter technology continuously adjusts output according to the pool's heating or cooling requirements.
- High-efficiency operation with COP ranging from 6.1 to 16.5 under specified test conditions.
- R32 refrigerant provides lower global warming potential and efficient heat transfer.
- Stepless inverter motor with low start-up voltage for smooth, efficient operation.
- Heating, cooling and automatic modes for flexible year-round pool temperature control.
- 5-inch colour touchscreen controller for intuitive temperature and system management.
- Power consumption monitoring allows users to track operating energy usage.
- Active defrosting system supports reliable operation in colder ambient conditions.
- Optional Wi-Fi control enables remote monitoring and management via smartphone.
- Modular master/slave operation allows multiple units to work together for larger installations.
- Commercial-grade construction designed for demanding pool heating applications.
🌱 Eco-Friendly R32 Refrigerant
The ALLPH780R32-INV uses R32 refrigerant, offering a significantly lower global warming potential compared with older refrigerants such as R22, R134A and R410A.
R32 technology also uses approximately 40% less refrigerant and can provide improved heat exchange efficiency, helping reduce energy consumption and operating costs.
- Up to 75% lower global warming potential
- Up to 12% higher efficiency
- Approximately 40% less refrigerant
- Mildly flammable but non-explosive
- Easier to reuse and recycle due to its single-component composition
📐 Technical Specifications
| Specification | ALLPH780R32-INV |
|---|---|
| Heating Capacity | 12.2–78 kW |
| Consumed Power | 0.91–12.75 kW |
| COP | 6.1–16.5 |
| Refrigerant | R32 |
| Operating Air Temperature | -15 to 43°C |
| Power Supply | 380–415V / 3N~ / 50Hz |
| Maximum Power Input | 12.34 kW |
| Rated Current Input | 19 A |
| Compressor Quantity | 1 |
| Compressor Type | Rotary |
| Fan Quantity | 1 |
| Fan Speed | 650–750 RPM |
| Fan Direction | Vertical |
| Noise Level | 53–61 dB(A) |
| Water Connection | 63 mm |
| Nominal Water Flow | 26.8 m³/h |
| Maximum Water Pressure Drop | 33.7 kPa |
| Set Water Temperature | Cooling: 9°C / Heating: 40°C |
| Unit Dimensions (L × W × H) | 1200 × 980 × 1895 mm |
| Carton Dimensions (L × W × H) | 1320 × 1090 × 2090 mm |
| Net Weight | 300 kg |
| Gross Weight | 341 kg |
🎛️ Smart Touchscreen Control
The integrated 5-inch colour touchscreen controller provides convenient control over the heat pump while allowing users to set the desired pool temperature and monitor power consumption.
The unit is Wi-Fi ready, with an optional Wi-Fi module available for remote smartphone monitoring and control.
🔄 Modular Operation
The ALLPH780R32-INV supports master/slave modular operation, allowing multiple units to operate together as a coordinated commercial pool heating system.
This provides a scalable solution for larger pools while helping maintain system operation in the event of a slave unit failure.
🏊 Ideal Applications
- Commercial swimming pools
- Hotel swimming pools
- Gym and fitness centre pools
- School swimming pools
- Large residential estate pools
- Aquatic facilities
- High-demand pool heating and cooling systems
🏷️ Quality & Support
The Alliance ALLPH780R32-INV 78kW Commercial Inverter Swimming Pool Heat Pump combines full inverter technology, efficient R32 refrigerant and intelligent control to provide reliable pool heating and cooling for demanding commercial applications.
With up to 78kW of heating capacity, high COP performance, active defrosting, touchscreen control and optional Wi-Fi connectivity, it provides an efficient and scalable solution for hotels, gyms, schools and large swimming pools.
DATASHEET
