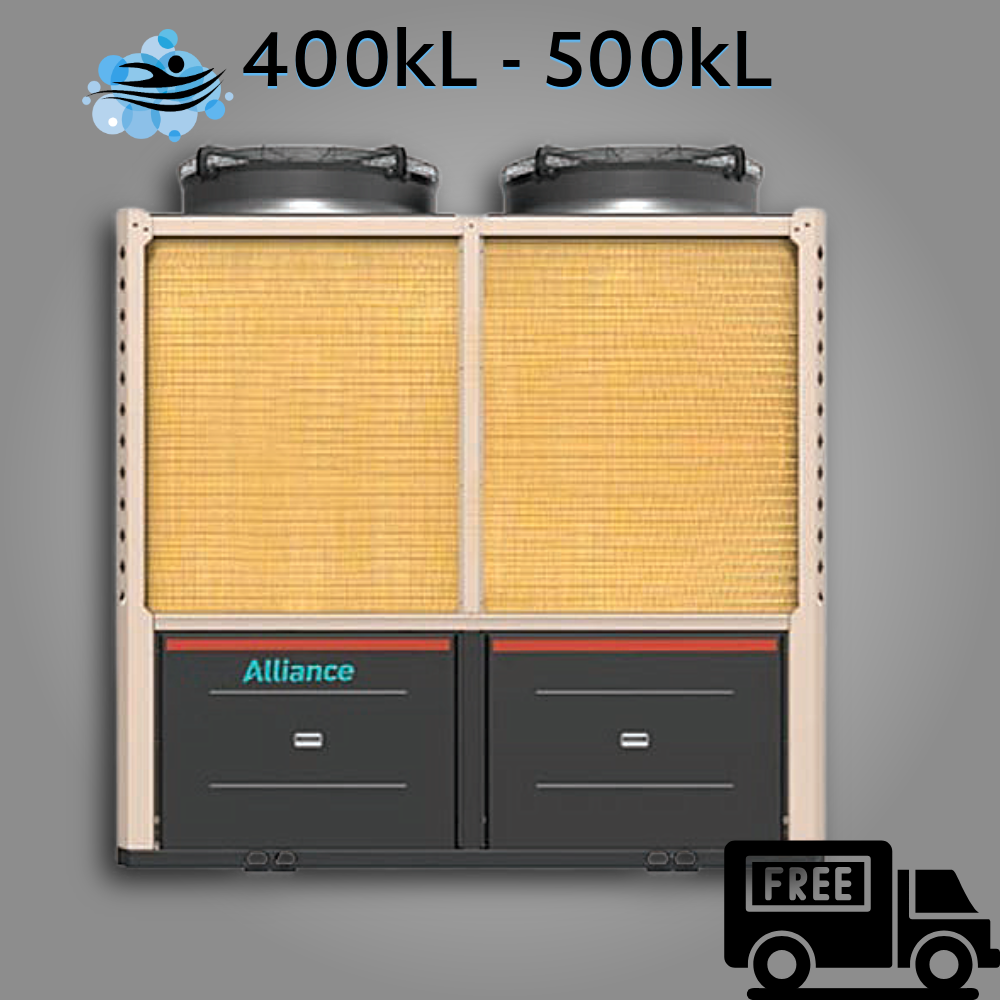

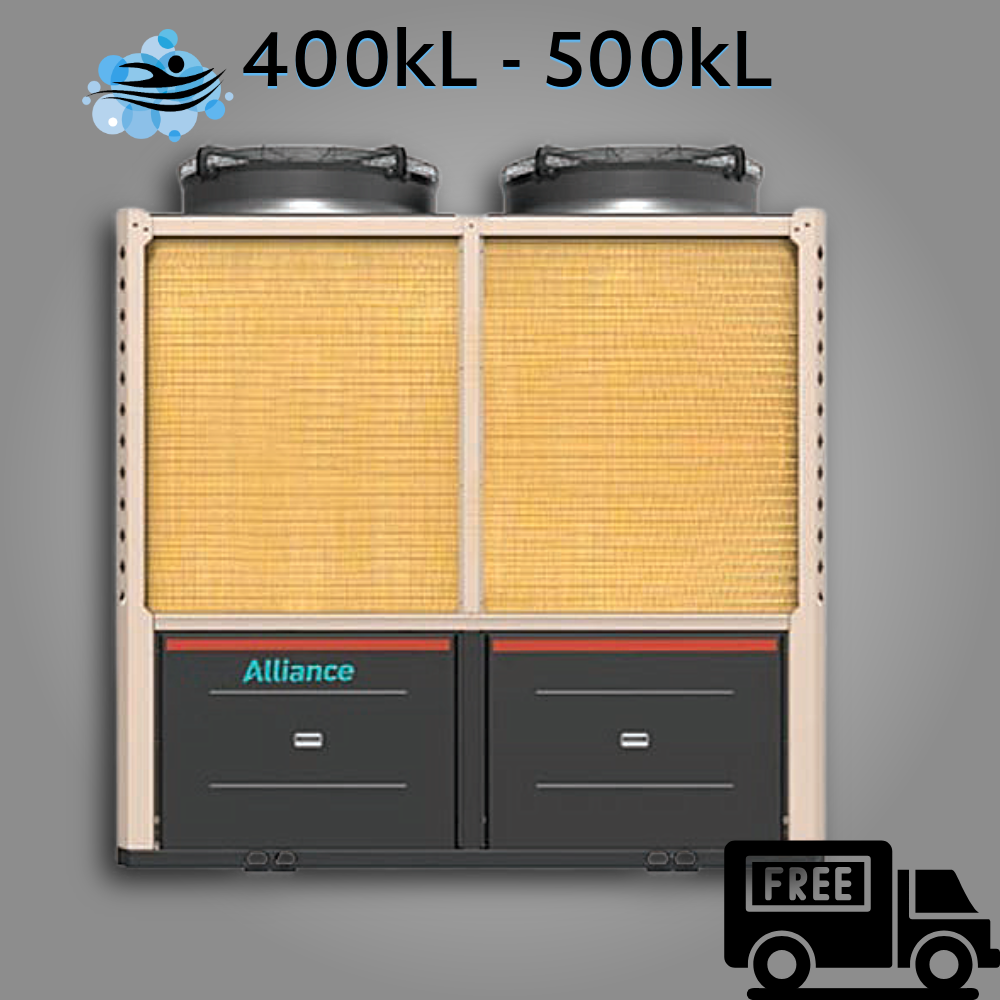

Alliance 155kW R32 Commercial Inverter Swimming Pool Heat Pump
Couldn't load pickup availability
Alliance 155kW R32 Commercial Inverter Swimming Pool Heat Pump
Model: ALLPH1550R32-INV
Brand: Alliance
Type: Commercial Inverter Swimming Pool Heat Pump
Heating Capacity: 30–155 kW
Refrigerant: R32
Power Supply: 380–415V / 3N~ / 50Hz
Application: Commercial Swimming Pools, Hotels, Gyms, Schools & Large Aquatic Facilities
⚡ Key Features
- 155kW maximum heating capacity for large commercial swimming pools and high-demand aquatic facilities.
- Full inverter technology continuously adjusts operating output according to actual heating or cooling requirements.
- High-efficiency performance with COP ranging from 6.1 to 25.5 under specified test conditions.
- R32 refrigerant offers lower global warming potential and efficient heat transfer.
- Stepless inverter motor provides smooth variable-speed operation with low start-up voltage.
- Heating, cooling and automatic modes provide flexible year-round pool temperature control.
- 5-inch colour touchscreen controller provides intuitive system control and temperature adjustment.
- Power consumption monitoring allows users to monitor energy usage during operation.
- Active defrosting system helps maintain reliable performance in colder ambient conditions.
- Wi-Fi ready with an optional Wi-Fi module for remote smartphone monitoring and control.
- Modular master/slave operation allows multiple units to operate together for larger pool installations.
- Dual rotary compressors provide high-capacity commercial performance.
- Commercial-grade construction designed for demanding pool heating applications.
🌱 Eco-Friendly R32 Refrigerant
The ALLPH1550R32-INV uses R32 refrigerant, which has a significantly lower global warming potential than older refrigerants such as R22, R134A and R410A.
R32 technology also uses approximately 40% less refrigerant and supports efficient heat exchange, helping reduce energy consumption and operating costs.
- Up to 75% lower global warming potential
- Up to 12% higher efficiency
- Approximately 40% less refrigerant
- Mildly flammable but non-explosive
- Easier to reuse and recycle due to its single-component composition
📐 Technical Specifications
| Specification | ALLPH1550R32-INV |
|---|---|
| Heating Capacity | 30–155 kW |
| Consumed Power | 1.88–22.13 kW |
| COP | 6.1–25.5 |
| Refrigerant | R32 |
| Operating Air Temperature | -15 to 43°C |
| Power Supply | 380–415V / 3N~ / 50Hz |
| Maximum Power Input | 25.1 kW |
| Rated Current Input | 40.9 A |
| Compressor Quantity | 2 |
| Compressor Type | Rotary |
| Fan Quantity | 2 |
| Fan Speed | 500–700 RPM |
| Fan Direction | Vertical |
| Noise Level | 59–62 dB(A) |
| Water Connection | 110 mm |
| Nominal Water Flow | 42 m³/h |
| Maximum Water Pressure Drop | 37 kPa |
| Set Water Temperature | Cooling: 9°C / Heating: 40°C |
| Unit Dimensions (L × W × H) | 2170 × 1160 × 2127 mm |
| Carton Dimensions (L × W × H) | 2330 × 1330 × 2340 mm |
| Net Weight | 603 kg |
| Gross Weight | 683 kg |
🎛️ Smart Touchscreen Control
The integrated 5-inch colour touchscreen controller provides convenient control of the heat pump, allowing users to adjust pool temperature settings and monitor power consumption.
The unit is Wi-Fi ready, with an optional Wi-Fi module available for remote monitoring and control through a smartphone.
🔄 Modular Commercial Operation
The ALLPH1550R32-INV supports master/slave modular operation, allowing multiple heat pumps to work together as a coordinated system.
This modular configuration provides a scalable solution for large commercial pools and helps minimise interruptions should a slave unit experience a failure during operation.
🏊 Ideal Applications
- Large commercial swimming pools
- Hotel and resort pools
- Gym and fitness centre pools
- School swimming pools
- Aquatic centres
- Large residential estate pools
- High-demand pool heating and cooling installations
🏷️ Quality & Support
The Alliance ALLPH1550R32-INV 155kW Commercial Inverter Swimming Pool Heat Pump combines full inverter technology, high-efficiency R32 refrigerant and intelligent control for reliable temperature management of large swimming pools.
With up to 155kW of heating capacity, COP performance reaching 25.5, dual rotary compressors, active defrosting, touchscreen control, optional Wi-Fi connectivity and modular operation, it provides a powerful and scalable solution for demanding commercial pool applications.
