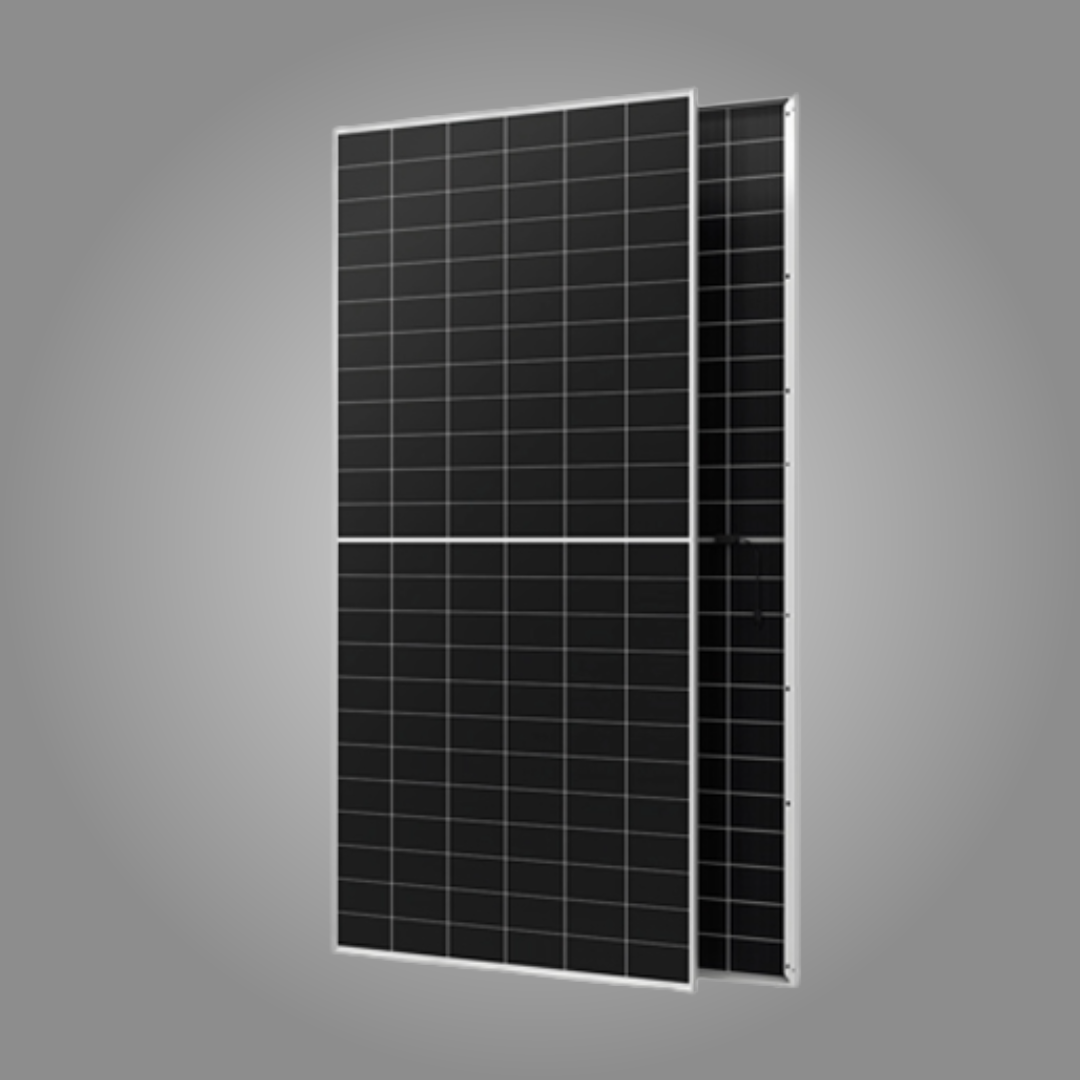

AIKO Solar 635W Stellar Double Glass Solar Panel (All Black)
Couldn't load pickup availability
☀️ AIKO Solar 650W Stellar 1N+ All Black Bifacial Double Glass Solar Panel
Datasheet
AIKO Solar 650W Stellar 1N+ All Black Bifacial Double Glass Solar Panel
Model: AIKO-G650-MCH72Dw
Brand: AIKO Solar
Type: N-Type ABC Bifacial Double Glass Solar Panel
⚡ Key Features
- High-efficiency 650W output with 24.1% module efficiency for exceptional energy production.
- Advanced N-Type ABC (All Back Contact) cell technology delivers superior performance, improved aesthetics, and enhanced reliability.
- Bifacial dual-glass construction captures reflected light from the rear of the panel, increasing total energy generation with a bifaciality factor of 70 ±5%.
- Premium all-black anodized aluminium frame provides a sleek appearance ideal for modern residential and commercial installations.
- Excellent partial shading optimisation helps maximise energy production when sections of the array experience shading.
- Low temperature coefficient of -0.26%/°C improves performance during hot South African summers.
- Outstanding resistance to micro-cracks, mechanical stress, and long-term degradation.
- Dual-glass design offers enhanced moisture resistance, durability, and a longer service life.
- Certified for 1500V DC systems with 5400Pa front and 2400Pa rear mechanical load ratings.
- IP68-rated junction box with three bypass diodes for reliable outdoor performance.
- Backed by a 15-year product warranty and 30-year linear performance warranty.
📐 Specifications
| Specification | Value |
|---|---|
| Model | AIKO-G650-MCH72Dw |
| Rated Power (Pmax) | 650 W |
| Module Efficiency | 24.1% |
| Cell Technology | N-Type ABC |
| Cell Configuration | 144 Cells (6 × 24) |
| Panel Type | Bifacial Double Glass |
| Bifaciality Factor | 70 ±5% |
| Maximum System Voltage | 1500 V DC |
| Open Circuit Voltage (Voc) | 54.00 V |
| Maximum Power Voltage (Vmp) | 45.30 V |
| Short Circuit Current (Isc) | 15.06 A |
| Maximum Power Current (Imp) | 14.35 A |
| Maximum Series Fuse Rating | 30 A |
| Power Tolerance | 0 to +3% |
| Fire Rating | IEC Class A |
📏 Physical Specifications
| Specification | Details |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 33.5 kg |
| Front & Rear Glass | 2.0 mm + 2.0 mm Heat-Strengthened Glass |
| Frame | All Black Anodized Aluminium |
| Junction Box | IP68, 3 Bypass Diodes |
| Connectors | MC4 Compatible / MC4-EVO2 |
| Cable Size | 4 mm² (IEC) / 12 AWG (UL) |
🌡️ Temperature & Operating Specifications
| Specification | Value |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.26%/°C |
| Temperature Coefficient (Voc) | -0.22%/°C |
| Temperature Coefficient (Isc) | +0.05%/°C |
| Front Static Load | 5400 Pa |
| Rear Static Load | 2400 Pa |
| Hail Resistance | 25 mm at 23 m/s |
🏷️ Quality & Support
The AIKO Solar 650W Stellar 1N+ combines cutting-edge N-Type ABC cell technology with a durable bifacial double-glass design to deliver outstanding efficiency, exceptional reliability, and long-term energy production. Featuring a premium all-black anodized aluminium frame, excellent partial shading performance, and industry-leading low degradation, it is an ideal solution for residential, commercial, and industrial solar installations. Supported by a 15-year product warranty and 30-year linear performance warranty, this panel is built to provide dependable clean energy for decades.
